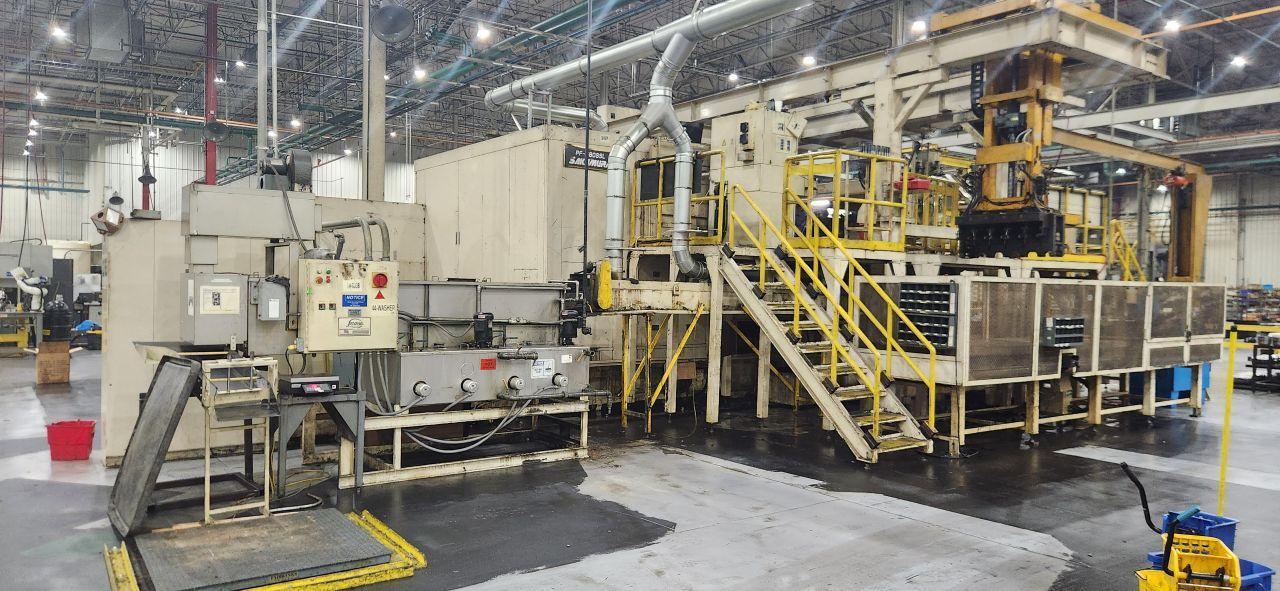

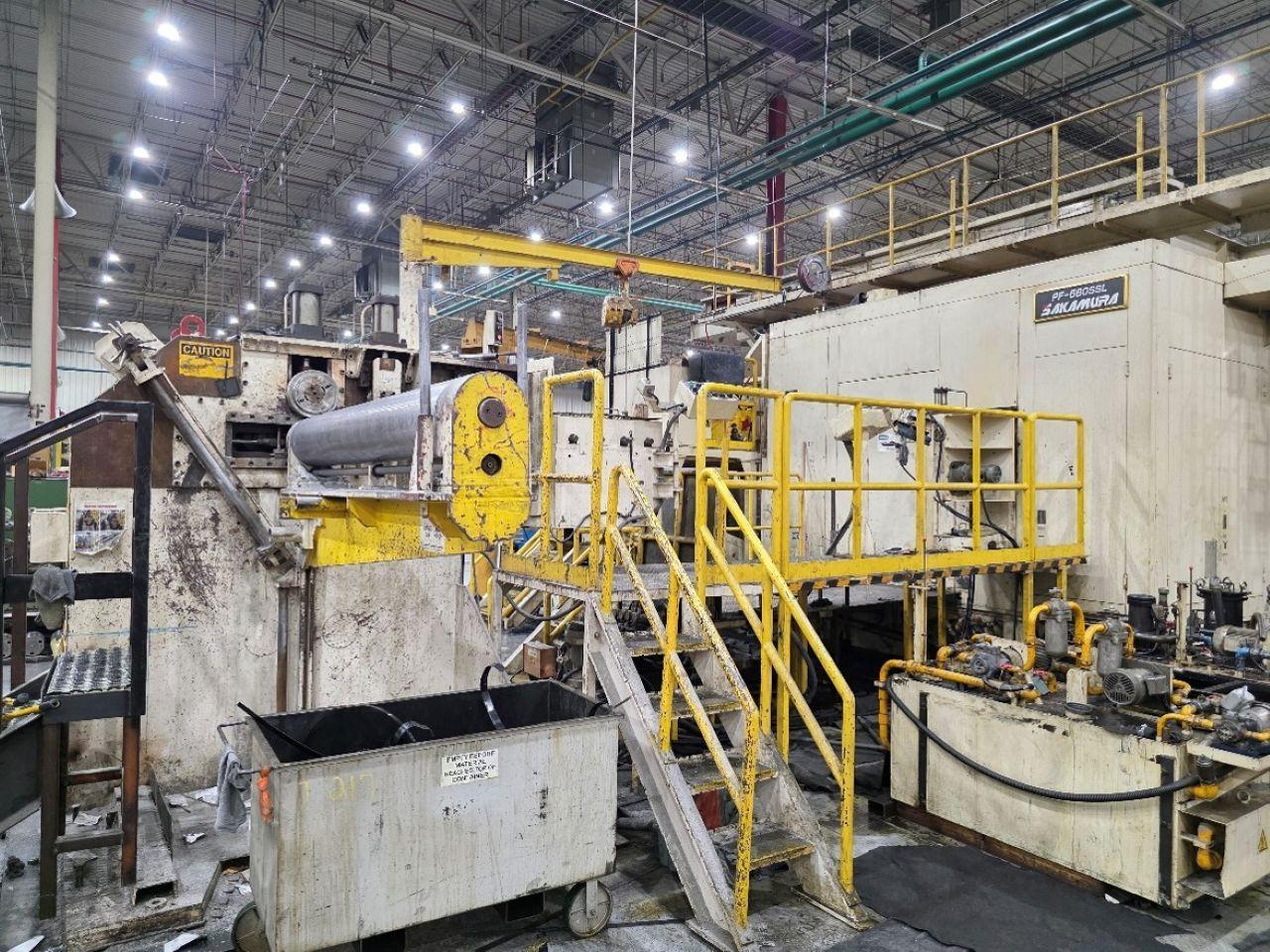

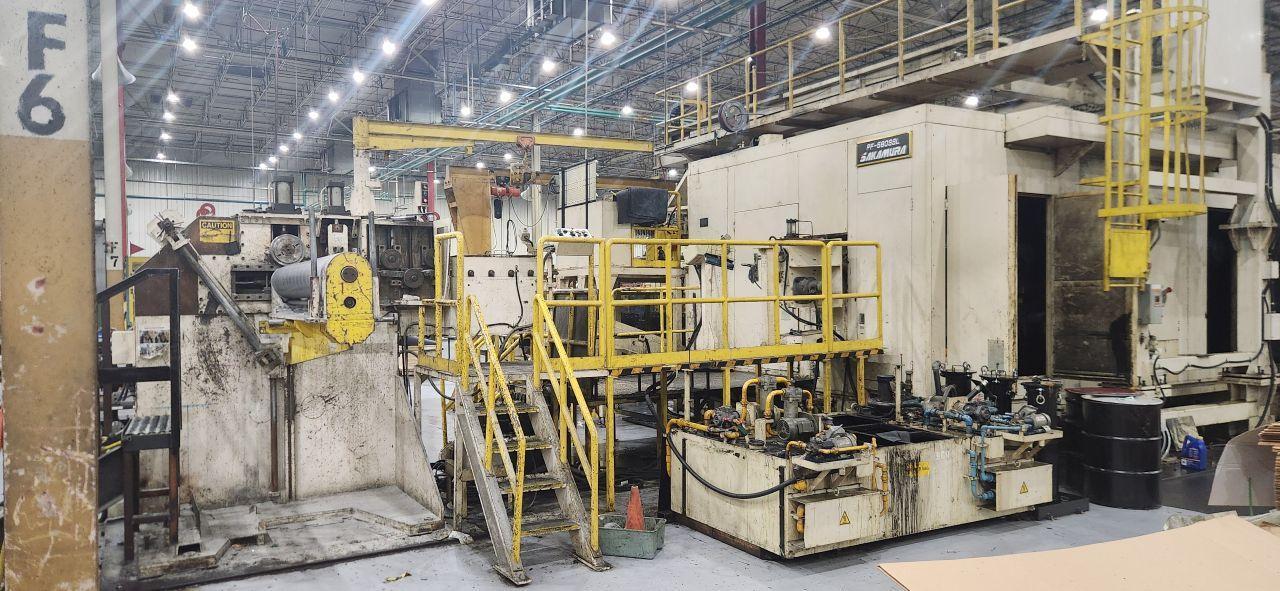

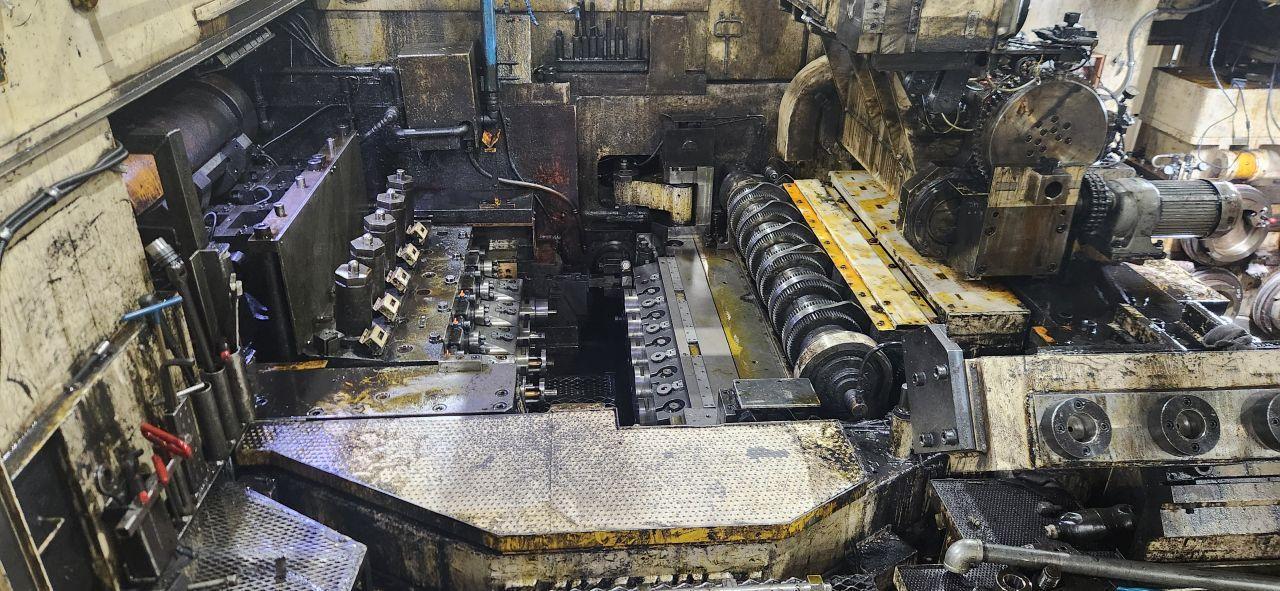

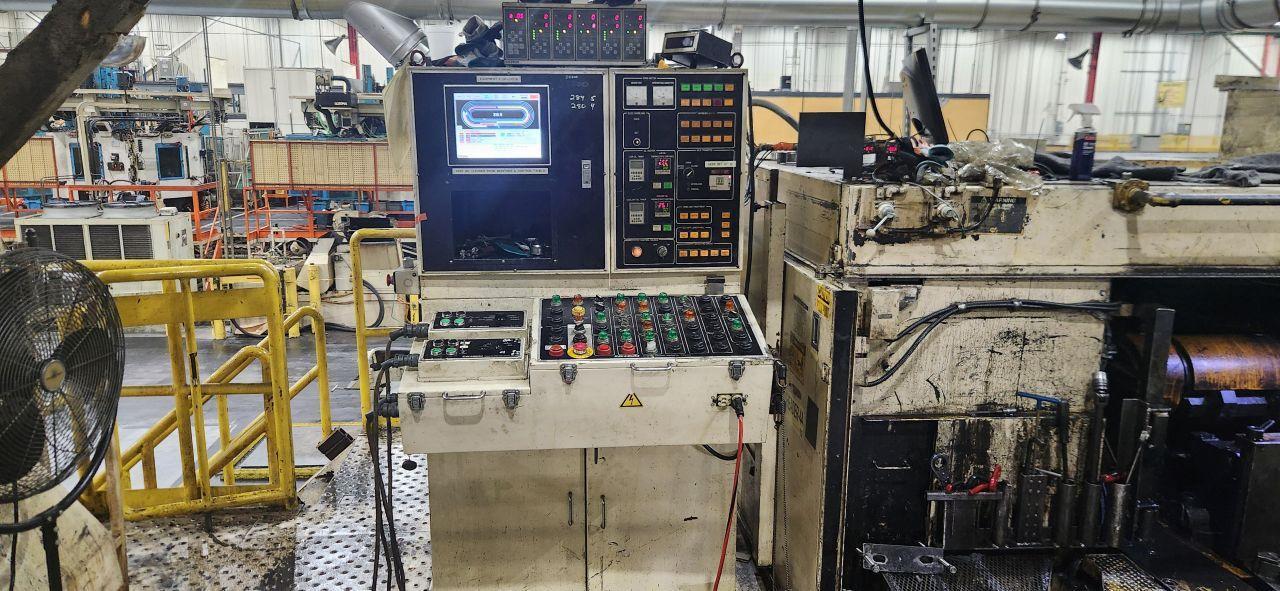

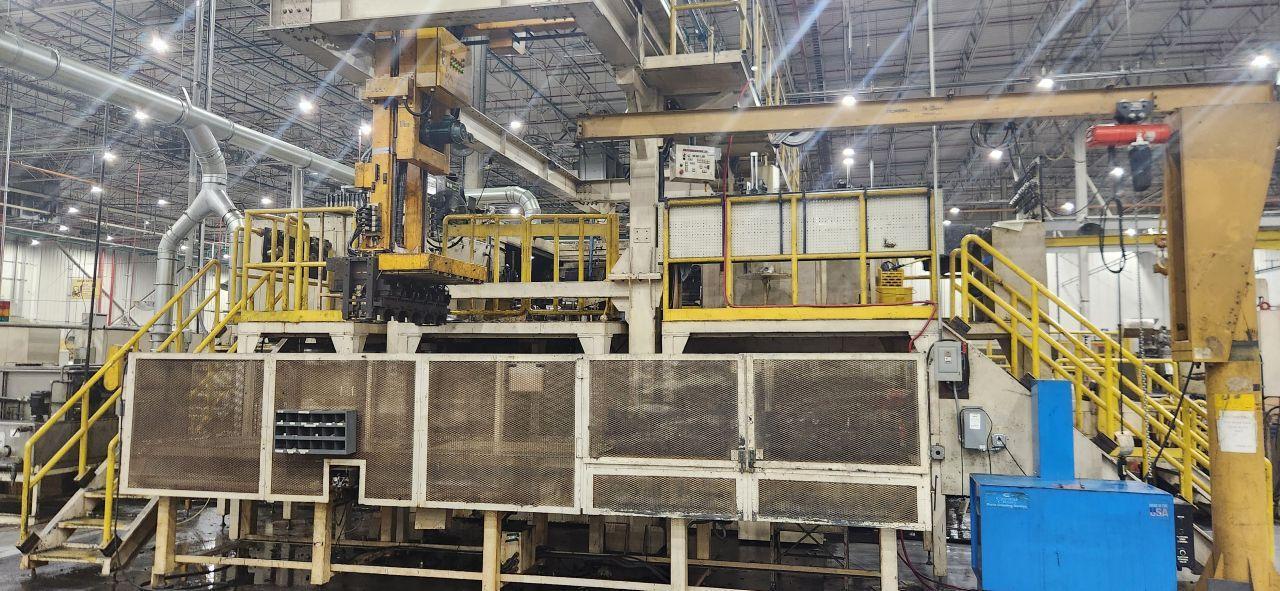

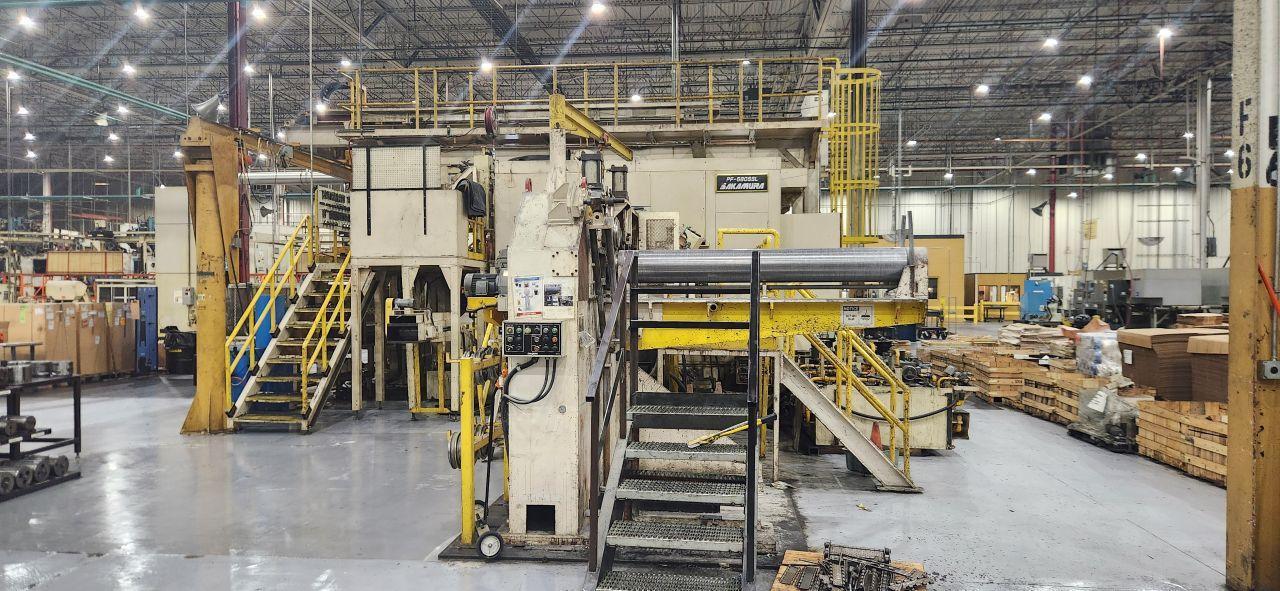

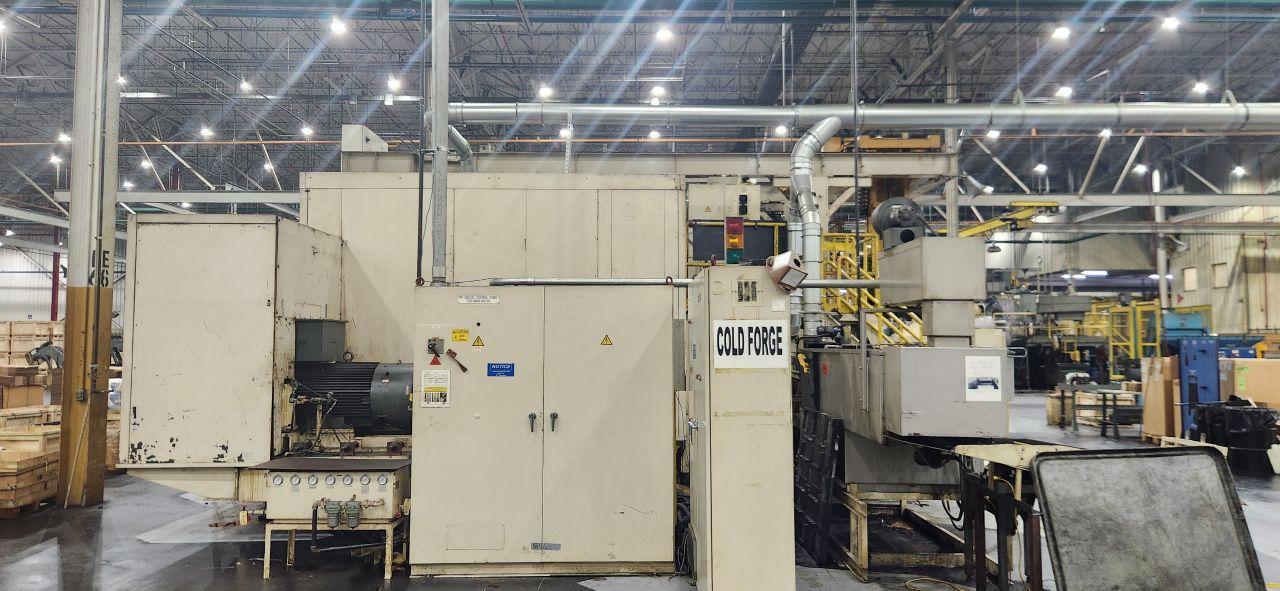

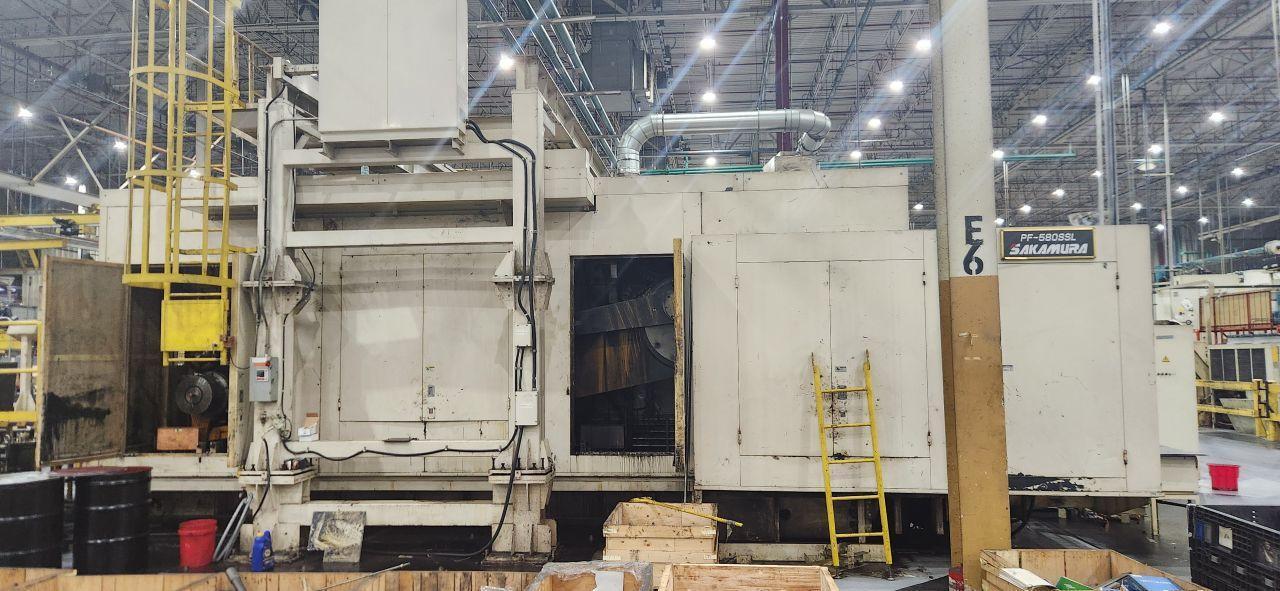

1.65″ (42MM) SAKAMURA MODEL PF-580SSL FIVE DIE PARTS FORMER

1.65" (42MM) SAKAMURA MODEL PF-580SSL FIVE DIE PARTS FORMER

Manufacturer
SAKAMURA

Type
Parts Formers, 5 Die

Model
PF-580SSL

Stock #
9236

Condition
Used

Year
1998

Request a Quote

Specifications

Maximum Cutoff Diameter

42 millimeters

Cutoff Diameter Range

12-42mm (carbon steel)

Maximum Cutoff Length

220 millimeters

Cutoff Length Range

18-220mm (30-220 Max @20)

Heading Tonnage

800T

Maximum Kickout Length

200 millimeters

KO Stroke Range

20-200mm

PKO Stroke

50 millimeters

Die diameter

190 millimeters

Punch Dia.

140 millimeters

RAM Stroke

400 millimeters

Lubricating Oil Capacity

700L

Forging Oil Capacity

900L

Max Output Speed

60 ppm

Main Motor

160 Kw

Weight (Approx)

150Ton

Equipped With

FEATURES:

Semi Automatic die exchange
Soft landing of forging product on conveyor
