Equipped With
TURRET CONFIGURATION- H-TYPE THICK TURRET
36 @ 1/2" DIA
12 @ 1-1/4" DIA.
4 @ 2" DIA.
2 @ 3-1/2" DIA.
2 @ 4-1/2' DIA.
2 @ AUTO ?NDEX (1-1/4" DIA.)
AUTO INDEX CONFIGURATION
ANGULAR INCREMENT 0.01 DEGREE
MAXIMUM NIBBLING ANGLE 8 DEGREE
B?DIRECTIONAL
AC SERVO DRIVE

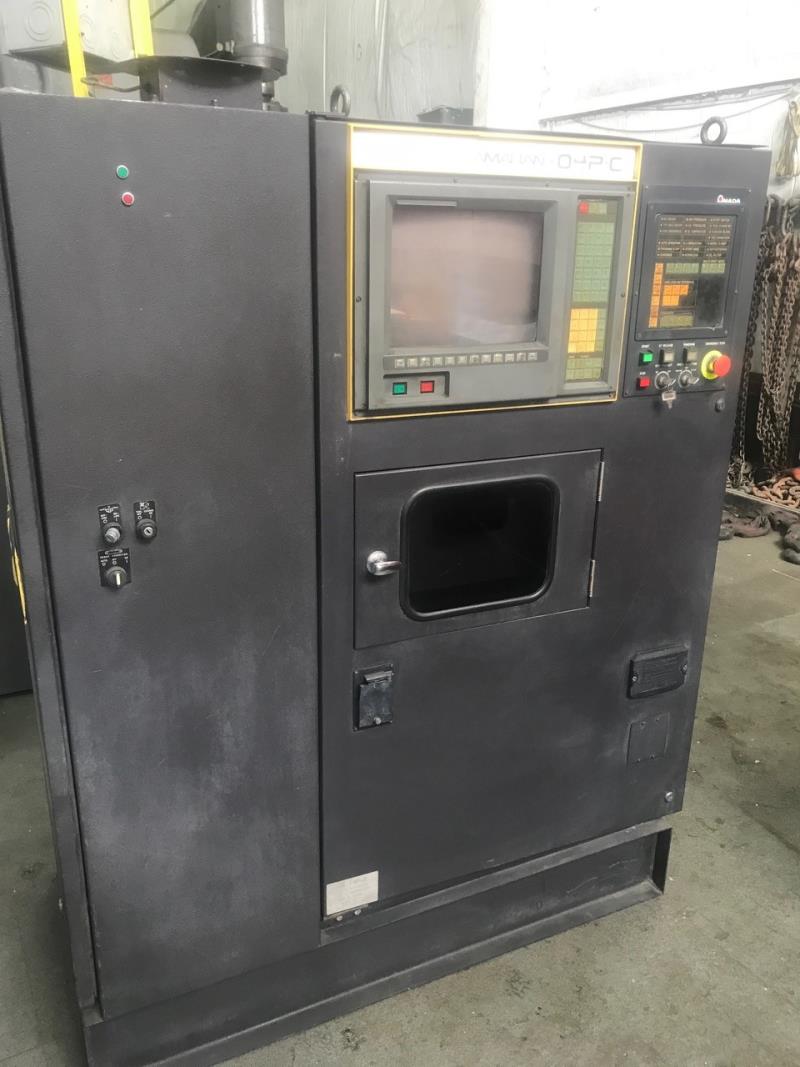

GE FANUC 04PC CONTROL
AUTO REPOSITIONING
HYDRAULIC CLUTCH & BRAKE
BALL TRANSFER TABLE
MAXIMUM TRAVERSE: 50? X 72?
MAXIMUM SHEET SIZE (WITH REPOSITIONING): 50? X 144?
MAXIMUM PUNCHING CAPACITY (MILD STEEL): ??
MAXIMUM HITS PER MINUTE: 350
MAXIMUM SHEET WEIGHT: 220 LBS
MAXIMUM POSITIONING SPEED: 2795 INCHES PER MINUTE
RPM: 60
TURRET SPEED: 30 RPM
TOTAL TOOL STATIONS IN TURRET: 58
AIR REQUIREMENT: 80 PSI
MAIN MOTOR HORSEPOWER: 5.5 KW
APPROXIMATE OVERALL DIMENSIONS: 9? W X 7?H X 16? L
APPROXIMATE OVERALL WEIGHT:2 3,000 LBS
Location: N.AMERICAN PLANT
