Amba Modular Long Stroke Screw & Bolt Making Machine

Manufacturer
AMBA

Type
Screw Machine

Model
Modular Long Stroke Screw & Bolt Making Machine

Stock #
Not Specified

Condition
New

Year
Not Specified

Request a Quote

Specifications

Equipped With

Specifications:
Size Range: Up to 12/14mm
Length Range: 80 - 2000mm
Thread Rolling: up to 160mm wide
Pinching (Press Force): up to 40t

Features:

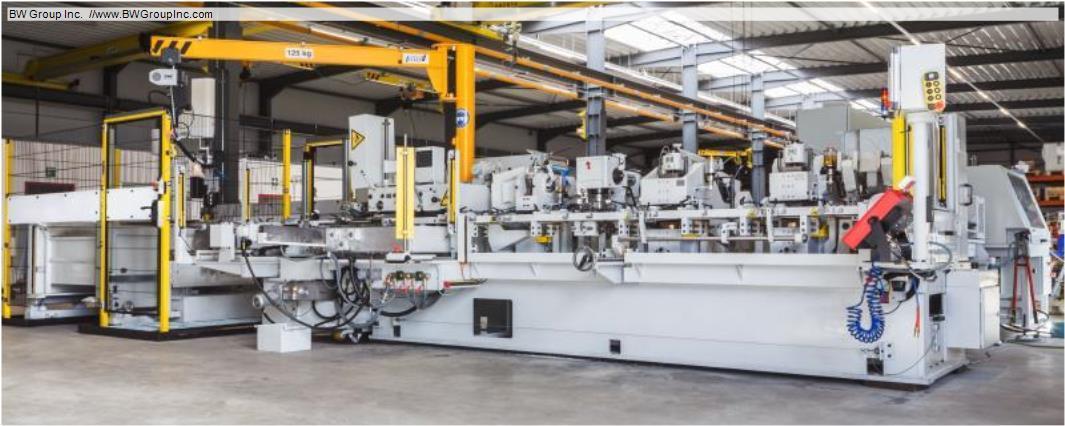

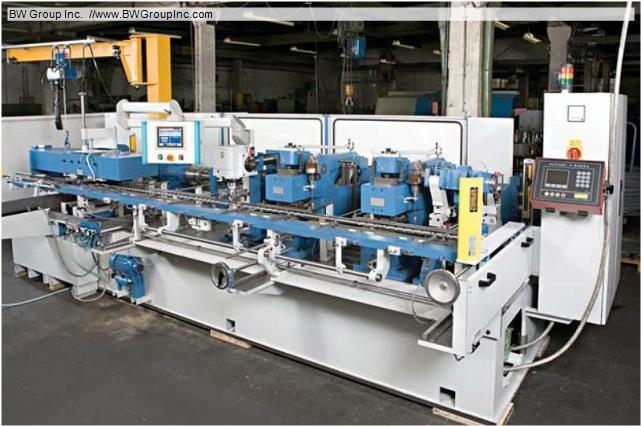

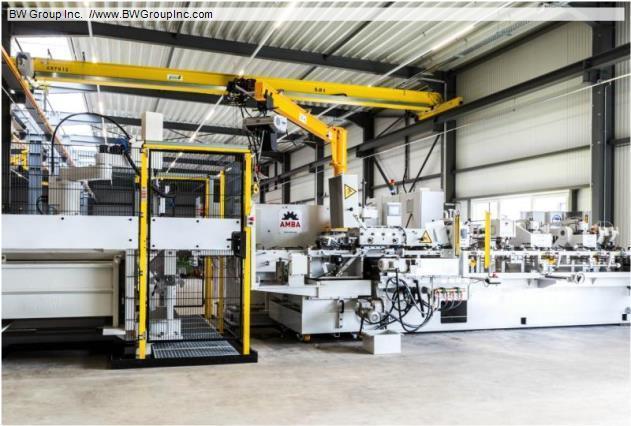

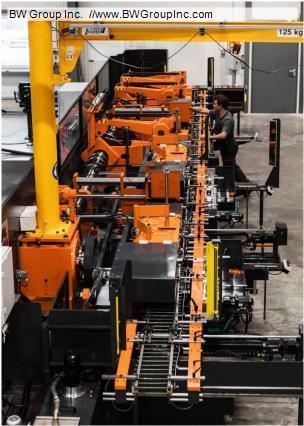

These machines are for the manufacture of long screws & bolts, fully automatic from wire coil to finished product.

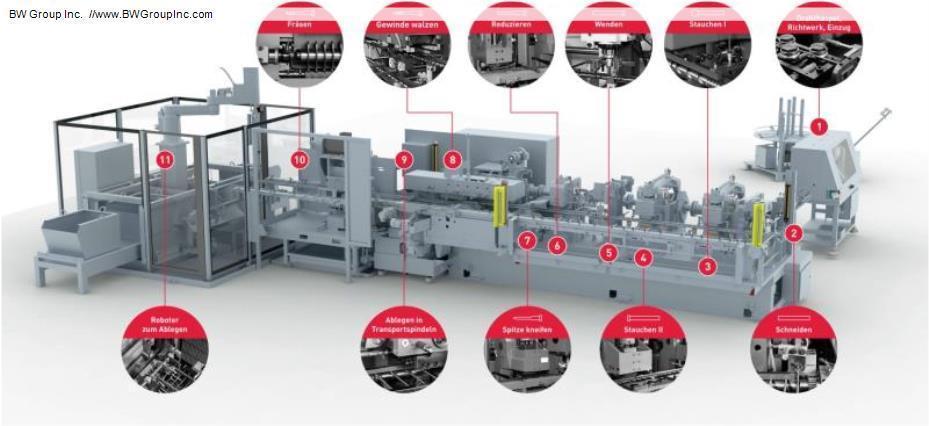

A single machine, consisting of harmonized components,
can perform the following operations fully automatically:
■ Cutting of up to a 12 mm | 0.5 ” diameter rod
■ Pre-form and fi nish upsetting – also with
spring-mounted tools
■ Punching of hexagons in two steps including burr removal
■ Reducing of diameters over lengths up to 100 mm | 4 ”
and more
■ Pinching with pressing forces of up to 40 t
■ Thread rolling with rolling jaws down to TR 6 / WF # 50
and up to 160 mm | 6.25” wide as standard
■ Milling as an inline process
■ Sorting the fi nished products into transport boxes

Machine Features:
* Modular concept (Machine design with current & future customer requirements
* Multi stations can be configures for various functions such as: heading, single/double end, pointing,
threading, reducing, punching, pinching, pointing, extruding, milling, packaging, & more.

Machine standard features:
- power driven wire dereeler
- rotary wire straightener unit
- infinitely variable drive
- full power also at low speed
- all movements mechanically combined
- programmable logic control
- central lubrication system
- centralized supply of cooling lubricants

Wire feeding is operated by servo-drive and reaches a maximum length tolerance of ± 0.05 mm (± .002") without additional trim cut. The compact machine only requires little space and may be installed without foundation or baseplate. As a matter of course we are also prepared to supply straighteners, decoilers and further peripheral equipment adjusted to the machine capacity.
