Amba Screw Straightening Machine

Manufacturer
AMBA

Type
Straighteners, Rod

Model
Screw Straightening Machine

Stock #
Not Specified

Condition
New

Year
Not Specified

Request a Quote

Specifications

Equipped With

Specifications:
* Screws up to: 1,000 mm long (infinitely adjustable)
Part diameters up to: 12mm dia
* Up to 40 screws per minute
* Reduction of deflection > 70 % compared to the undirected status
* Servo drives for straightening shafts
* Central lubrication system
* Occupational safety according to CE standard
* Option: collecting conveyor for exact portioning and
buffering of the finished screws behind the machine

Features:

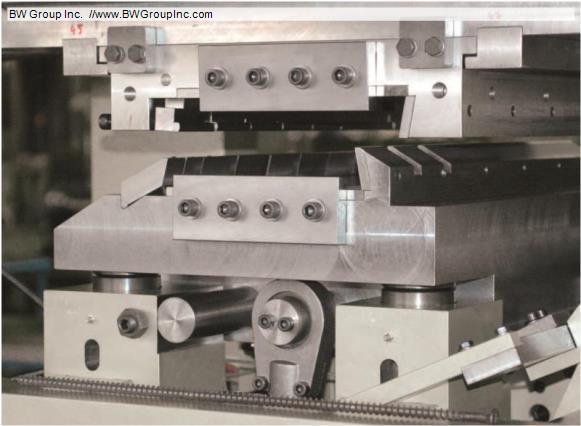

STRAIGHTENING MACHINE RIM
■ The screws to be straightened are fed via a magazine
and a step feeder.
■ Transport by the proven AMBA spindle system
■ The axial distance of the steps and transport spindles is
infi nitely adjustable and adaptable to the product length.
■ The straightening unit consists of three shafts with
straightening rollers individually adapted to the product
– profi led for thread position and unprofi led for shaft
position.
■ The straightening shafts are actively driven so that the
screw is already set in motion before the straightening
process begins.
■ The infeed movement of the rotating straightening tools is
centrally adjustable via an eccentric.
■ The straightening pressure resulting from the lining is
variable to a limited extent.
