Equipped With

* Set Up Jig/ Extra Transfer
* Spare Punch Blocks, Die Block
* Bushing Cutoff
* PKO in Both Punches and Stripper
* Wiper Mechanism

Features:
IFO Type Straight Across Transfer with Extra Discharge Finger Set for eliminating double hits in the 2nd Die.
Short Cutoff Detector and Automatic Drop , 1st Finger Force Opening
Centrifugal Oil Cleaner
Quick Change Feed Rolls
2 Plane Wire Straightener
Stock Gauge with Handle and Counter
2 Speed Motor

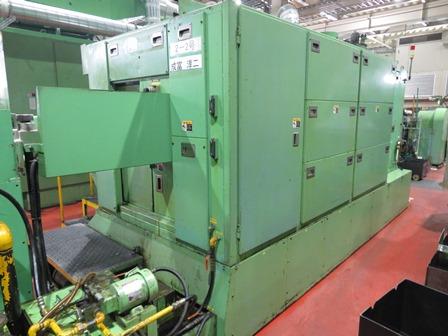

Full Sound Enclosure

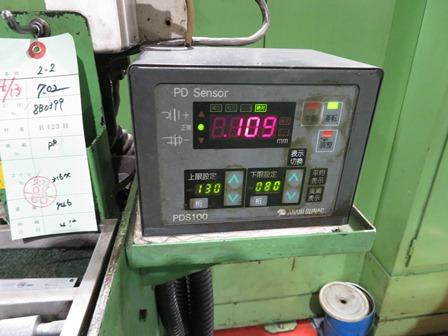

PD Sensor
Finish Parts Conveyor with Roll Sorter

Special Note: This is an AOT-10B machine modified features from the ST and AQ series machines.
Round Bushing Type Cutter eliminates the need to adjust the Cutter as on Standard AOT series machines.

Maximum Cutoff Diameter: .375" (10mm)
Maximum Cut-Off Length: 3-1/8" (80mm)
Minimum Cut-Off Length: 3/4" (20mm)
Maximum Kickout Length: 3" (75mm)
Minimum Kickout Length: 18/32" (15mm)
Die Hole Dia x Depth: 3-1/8"x5" (80mmx150mm)
PKO Stroke: 3/4" (20mm)
Total Forming Force: 80 metric tons
Max Output: 200 PPM
Machine Weight, approx: 11.5 tons
Dimensions: 148.8"L x 70.9"W x 70.9"H (378x180x180cm)

Location: N. America
