Equipped With

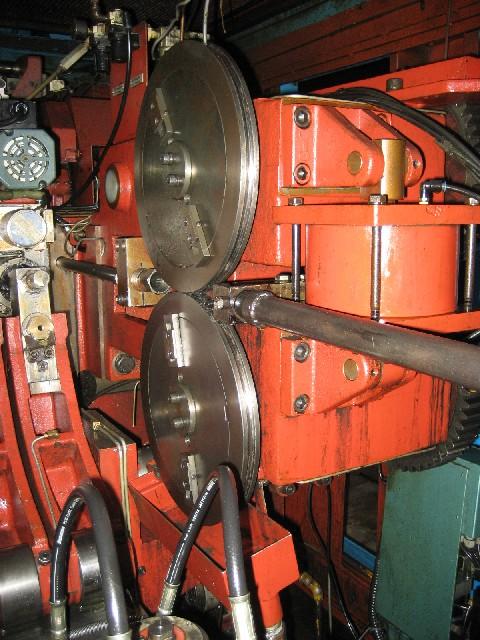

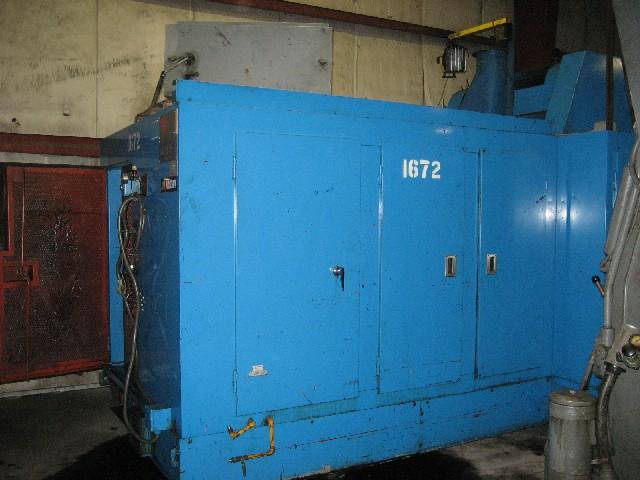

Bushing (Closed) Cutoff System Timed Positive Punch Knockout on First, Second, Third Punches Individually cam-actuated transfer finger opening Full sound enclosure Motorized die kickout adjustments Hydraulic clamping Pneumatic feed roll clamping Short feed detection Dual caliper disc brake Wichitaw air clutch Trimming capability on third die Magnetic chip and product conveyors 3+5 roll two-plane pre-straightener Asahi Sunac PD (punch) sensor Miscellaneous tooling and spare parts Number of Dies (excl. Cutoff Station): 3 Dies Max. Wire Diameter(at 600N/mm2): 13 mm ( .512") Max. Cutoff Length: 190 mm (7.480") Min. Cutoff Length: 40 mm (1.575") Max. Kickout Length (All 3 Dies): 150 mm (5.906") Min. Kickout Length (All 3 Dies): 30 mm (1.181") Punch Knockout Stroke (All 3 Dies): 24 mm ( .945") Bore Dimensions: Cutoff Quill: 45 mm (1.772") First, Second, Third Dies: 96 mm (3.780") First, Second, Third Punches: 75 mm (2.953") Center Distance Between Each Die: 110 mm (4.331") Max. Transferable Length: 190 mm (7.480") Punch Front Dead Center: 40 mm (1.575") Heading Tonnage: 130 Tons Output: 160 PPM Main Drive Motor (Three-Speed): 30 KW (40 H.P.) Oil Reservoir Capacity: 180 Lt. (48 Gallons) Air Pressure Requirement: 4 kg cm2 (60 P.S.I.) Net Weight: 24,000 kg (52,800lbs.) Dimensions: 9'wide x 15' long x 10'tall Location: Asia Plant
