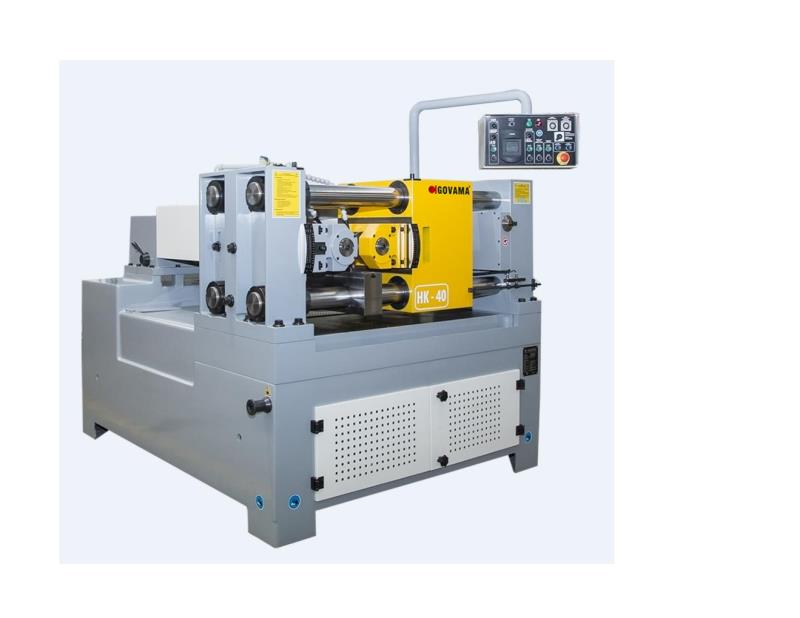

BRANDT HK SERIES Model HK-40 (40Ton) 2Die Cylindrical Thread Rolling Machine

Manufacturer
Not Specified

Type
Threading Machines, Thread Rollers, Planetary Die

Model
HK SERIES

Stock #
NEW

Condition
Used

Year
Not Specified

Request a Quote

Specifications

Equipped With

> The HK series of hydraulic rolling machines
are equipped with two rolling spindles, with one
moving head.

> All machines equipped with AC Variable Speed Drives, & Swivel spindles for both infeed/thrufeed operation.

> Automation, PLC/CNC options are available.

> The machines have radial die loads, ranging from 3-120 Ton(30 to 1200 kN)

> These machines are perfectly suitable for all
types of threading on cylindrical materials (ISO,
ACME, TPN, WORM SCREWS, KNURLS, SPLINES, etc.).

Rolling Force (kN): 10-400
Speed Range (rpm): 17-53
Min-Max Die Dia (mm): 160-210
Die Spindle Dia (mm): 80 (69.85)
Max Die Length (mm): 230
Workpiece Dia (mm): 4-120
Max Pitch (mm): 7
Swivel Angle: +/- 12Deg
Main Motor (kW): 18
Total Power (kW): 21.3
Weight (kgs): 4300
