Equipped With

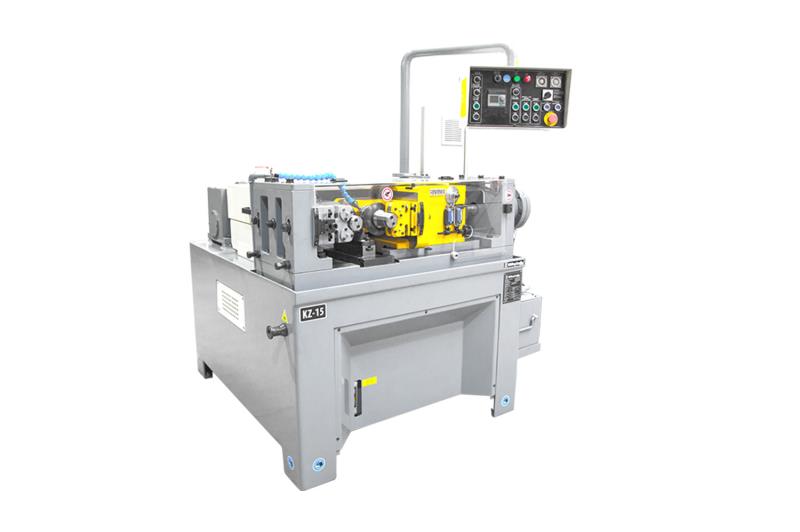

> The K series of hydraulic rolling machines
are equipped with two rolling spindles, with one
moving head in linear guides which have auto lubrication system.

> K series have an open-top area which has give advantage to integrate automatic feeding & discharge

> All machines equipped with AC Variable Speed Drives, & Swivel spindles for both infeed/thrufeed operation.

> Automation, PLC/CNC options are available.

> The machines have radial die loads, ranging from 15 -50 Tons (50 to 500 kN)

> These machines are perfectly suitable for all
types of threading on cylindrical materials (ISO,
ACME, TPN, WORM SCREWS, KNURLS, SPLINES, etc.).

Rolling Force (kN): 10-150
Speed Range (rpm): 18-62
Min-Max Die Dia (mm): 130-180
Die Spindle Dia (mm): 54
Max Die Length (mm): 125
Workpiece Dia (mm): 3-30
Swivel Angle: +/- 8Deg
Main Motor (kW): 7.5
Total Power (kW): 10
Weight (kgs): 1500
