Equipped With

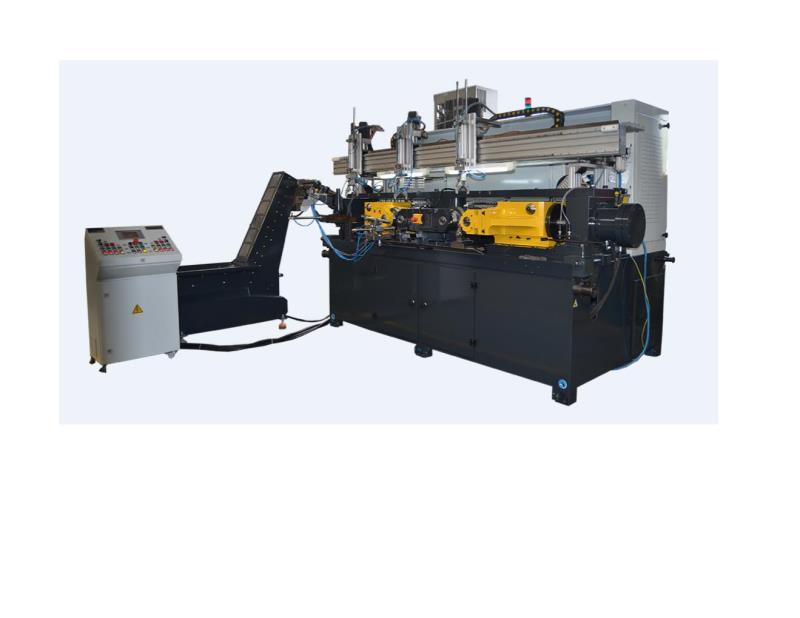

> The ROT-1 machine has been designed & produced to meet ball stud producers with high volume demand

> There are total of 2 stations for different rolling forms. At station 1 the burnishing process and at station 2 the thread rolling operation.

> Process flow and types can be modified based on customer request, so for example a grooving and threading operations can take place in each station.

> The machine have radial die loads, ranging from 1-25 Ton(10 to 250 kN) in each of the two stations

> PLC control unit & frequency control for speed adjustment are standard.

> Servo motors, driven carriers, & proportional valves are all standard, allowing easy/fast setup, along with increased performance & accuracy

> Machine is supplied with integrated automation system for part transport.

Rolling Force (kN): 10-250 X2
Speed Range (rpm): 18-60
Min-Max Die Dia (mm): 195-250
Die Spindle Dia (mm): 100
Max Die Length (mm): 100
Workpiece Dia (mm): 3-100
Max Pitch (mm): 4
Main Motor (kW): 7.5
Total Power (kW): 19.5
Weight (kgs): 9000
