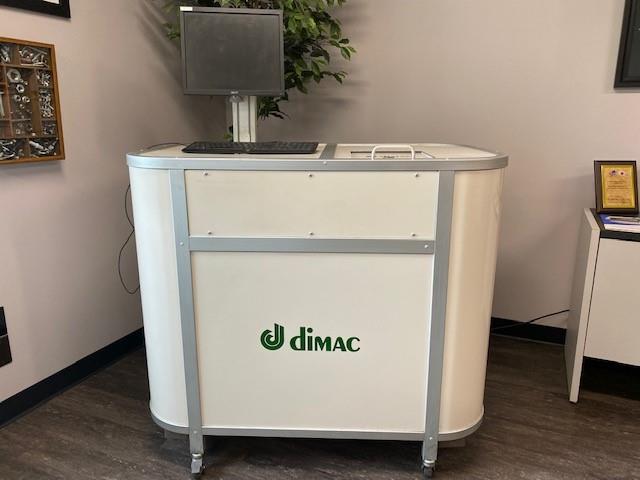

DIMAC SPC Lab INSPECTION MACHINE-SPC LAB

Manufacturer
DIMAC

Type
Inspection Machines

Model
SPC Lab

Stock #
8460

Condition
Used

Year
2012

Request a Quote

Specifications

Equipped With

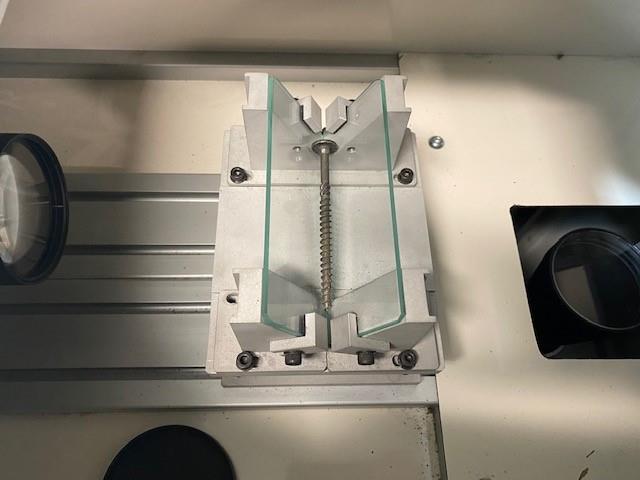

First-piece inspection mobile equipment suitable for in-process and post process measurements and controls - Non contact measurements by profile projection with high resolution camera - Connectivity for USB gages and hi-precision calipers PARTS SPECTRUM Screws, bolts, rivets, studs, ball pins, bushes, fittings and special parts by cold forging or turning process WORKING RANGE ? Part diameter from 2 mm to 30 mm ? Part length from 10 to 70 mm WORKING RANGE: Headed or headless parts: ?5?25 mm Head diameter max: ?25 mm Minimum shank length: = 2x Max head ? Total length max: 68 mm INSPECTION RATE: Up to 100 measurements/second INSPECTION ACCURACY: Up to ?0,005 mm Location: N.AMERICA
