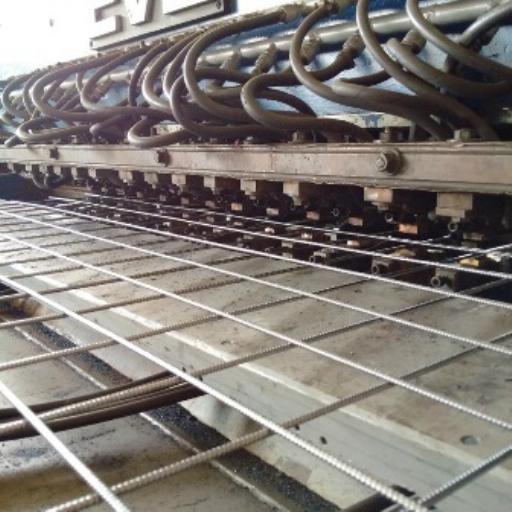

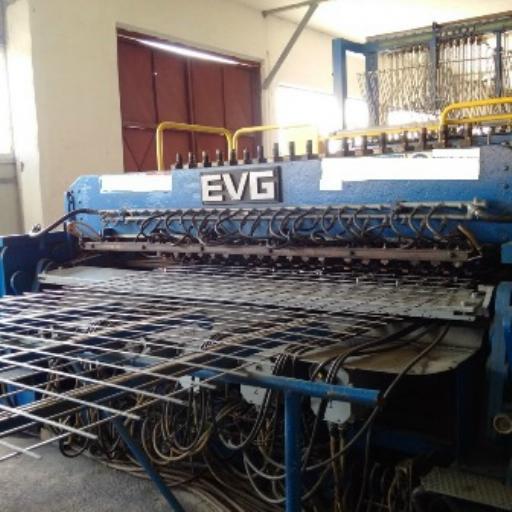

EVG G5/102 Mesh Welding Line

Manufacturer
EVG

Type
Wire Welded Wire Mesh

Model
G5/102

Stock #
7468

Condition
Used

Year
Not Specified

Request a Quote

Specifications

Equipped With

* Longitudinal and cross wire fed from spools
* Auto cross wire feed

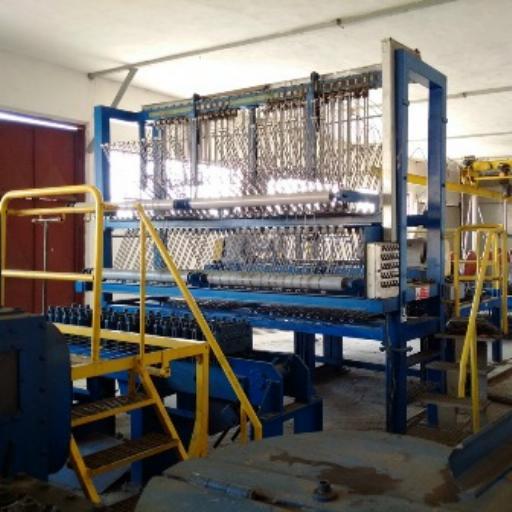

* 24 bobbin payoff stand
* Pre-straightening unit
* Pulling unit
* Power 800 KVA + 30
* 400V-50cycle-3ph

Wire dia. 4-10mm
Max. mesh width: 2500mm
Min.-max. welding width: 1800mm min - 2800mm max.
Longitudinal pitch spacing: 100-200
Traverse/ cross wire: 50-250; 110SPM

Location: Europe
