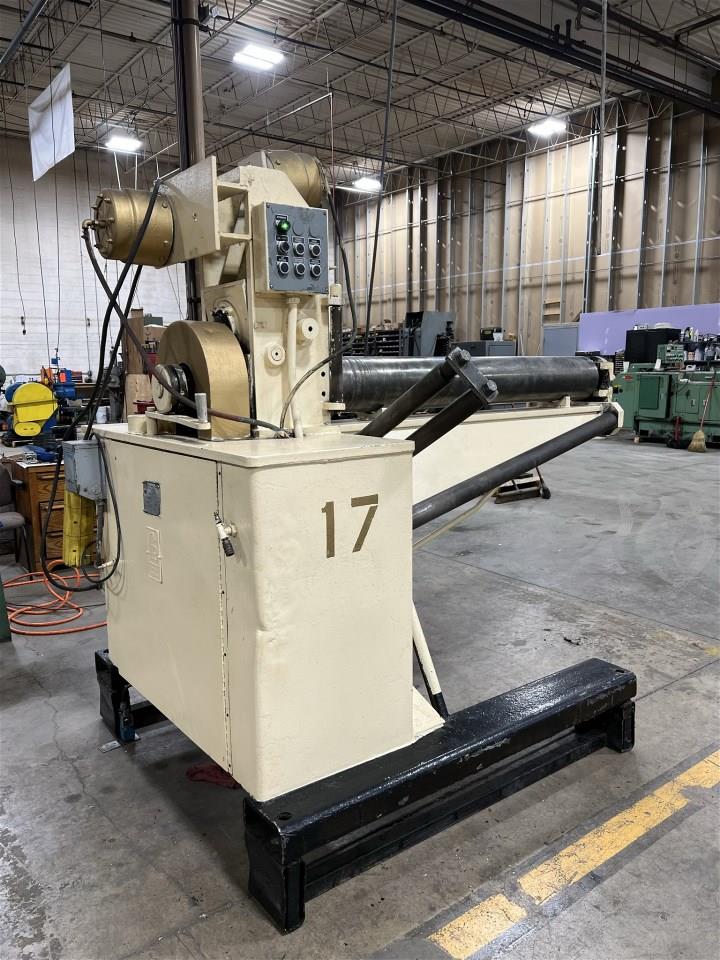

FASTENER ENGINEERS PF-4000-08 POWER PRE-FEEDER UNCOILER

Manufacturer
FASTENER ENGINEERS

Type
Uncoilers

Model
PF-4000-08

Stock #
8610

Condition
Used

Year
1979

Request a Quote

Specifications

Equipped With

* 2 HP AC MECHANICAL DRIVE WITH REVERSING CLUTCH
* AUTOMATIC REVERSE ON POWER DRIVE ROLLS
* SNAG BAR WITH TIME ON RELAY

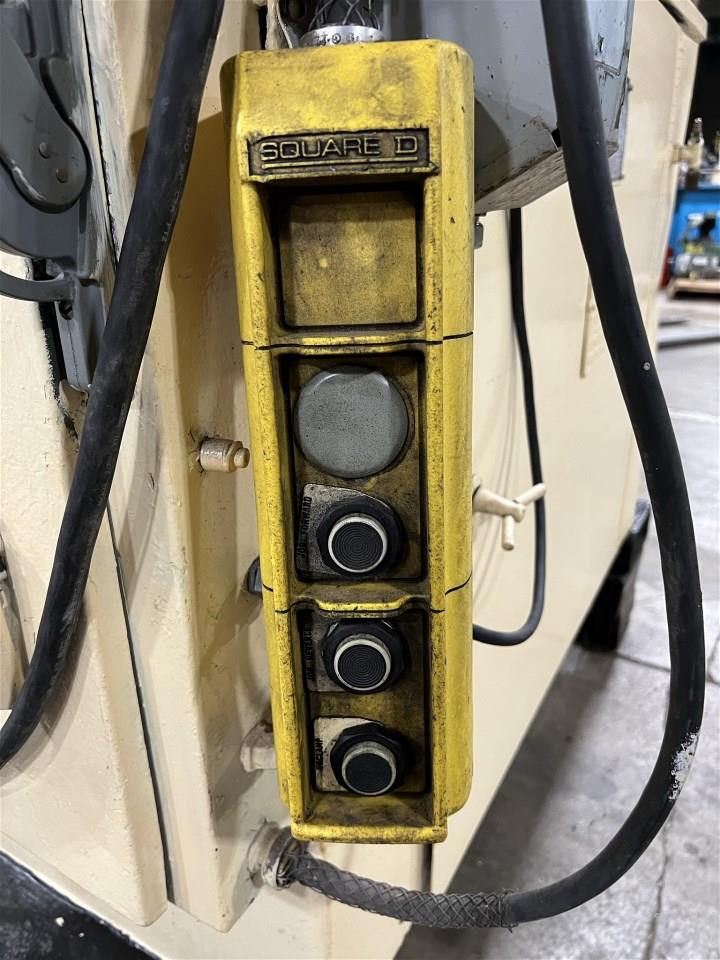

* REMOTE JOG STATION FOR JOG FORWARD, JOG REVERSE AND
RELEASE OF FEED AND STRAIGHTENER ROLLS

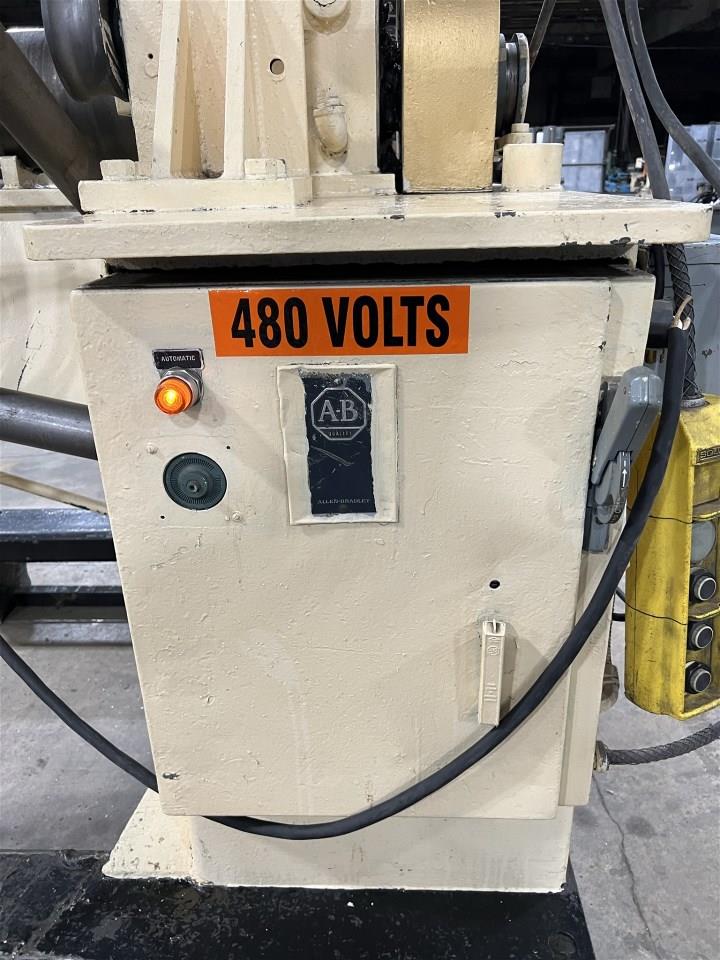

* FUSED DISCONNECT

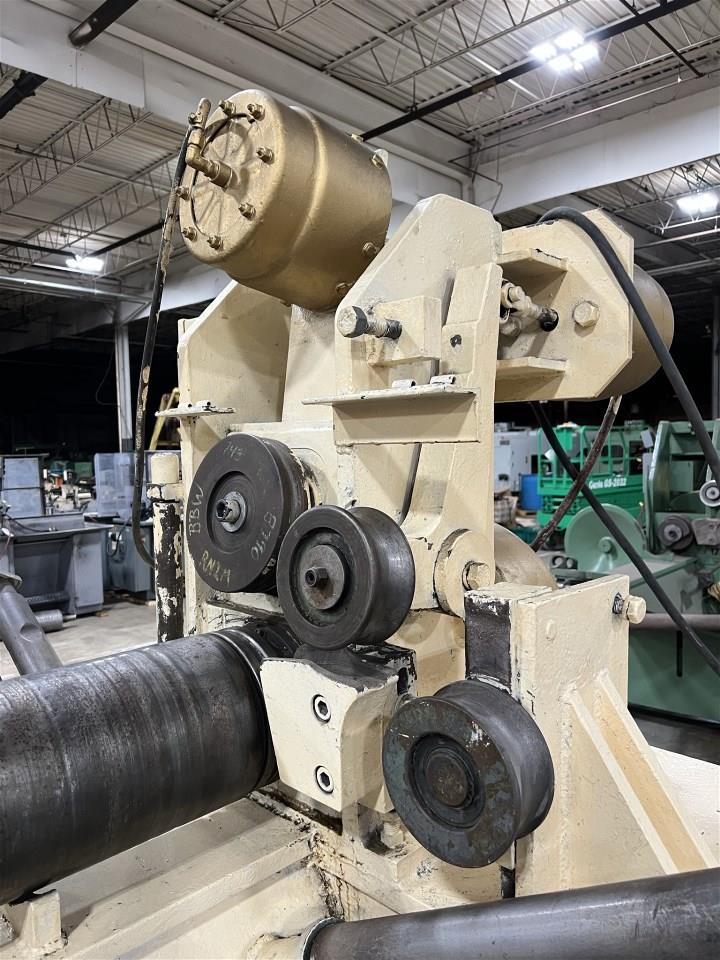

* HORIZONTAL AND VERTICAL COIL SEPARATING ROLLERS FOR
SPLITTING COIL LOOP
* SET OF FEED ROLLS

Maximum Diameter: 1-1/4" (@60K Tensile)
Maximum Diameter: 1" (@100K Tensile)
Maximum Diameter: .750" (@125K Tensile)
Min. Rod Size: 5/8"
Wire line height: 60"

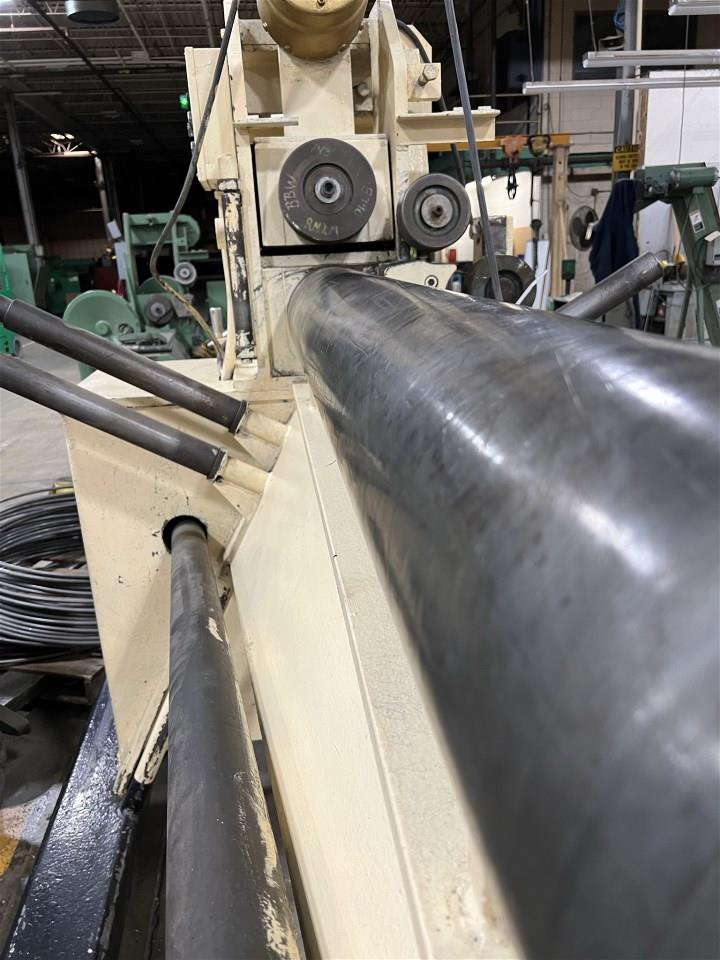

Mandrel Length: 60"
Coil Capacity: 4,000 Lbs.
Jog Speed: 29 fpm
Free Wheeling Speed Up To: 100 fpm
Electrics: 480v/3/60

Location: N.AMERICA
