Equipped With
Min. Threading Diameter (In-feed): 3 0.118)
Max. Threading Diameter (In-feed): 48mm (1.889”)
Maximum Thread Length (In-feed): 170mm (6.692")
Spindle Diameter: 72.2mm (3")
Main Motor: 11kW (15hp)
Speed Range: 51 - 191 rpm
Max Pitch: 4mm (0.157")
Swivel Angle: +/- 8 deg
Min Diameter of Dies: 145mm (5.70")
Max. Diameter of Dies: 190mm ((7.48")
Max Radial Die Load: 25tons (10-250 kN/55,000 lbs)
Net Weight,approx: 2,500 kgs. (5,500lbs)
Floor Space: 160 x 190 x 190cmH (63"x75"x75"H)
* Heavy duty 3”dia spindles
* 7” Rexroth PLC control screen
* PLC controlled electrical cabinet
* Ewon remote connection feature
* CSA approved safety components
* 480volts motor/electrics

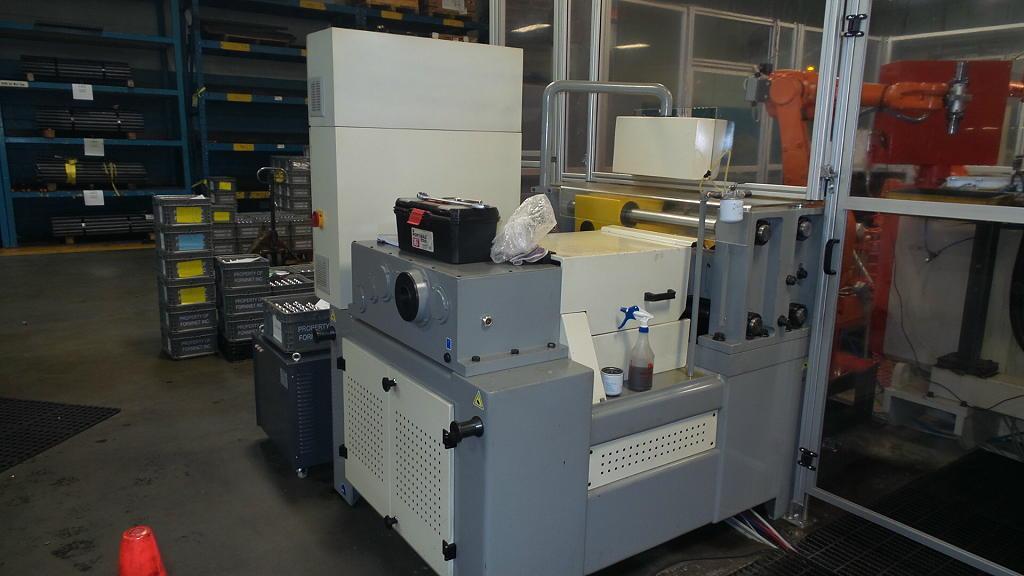

**Part holding fixture as seen in photos not included with this machine for sale, for demonstration purpose only.
