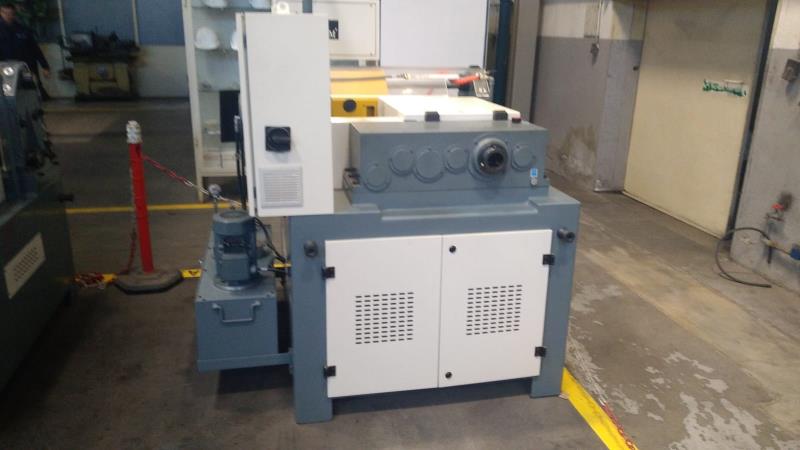

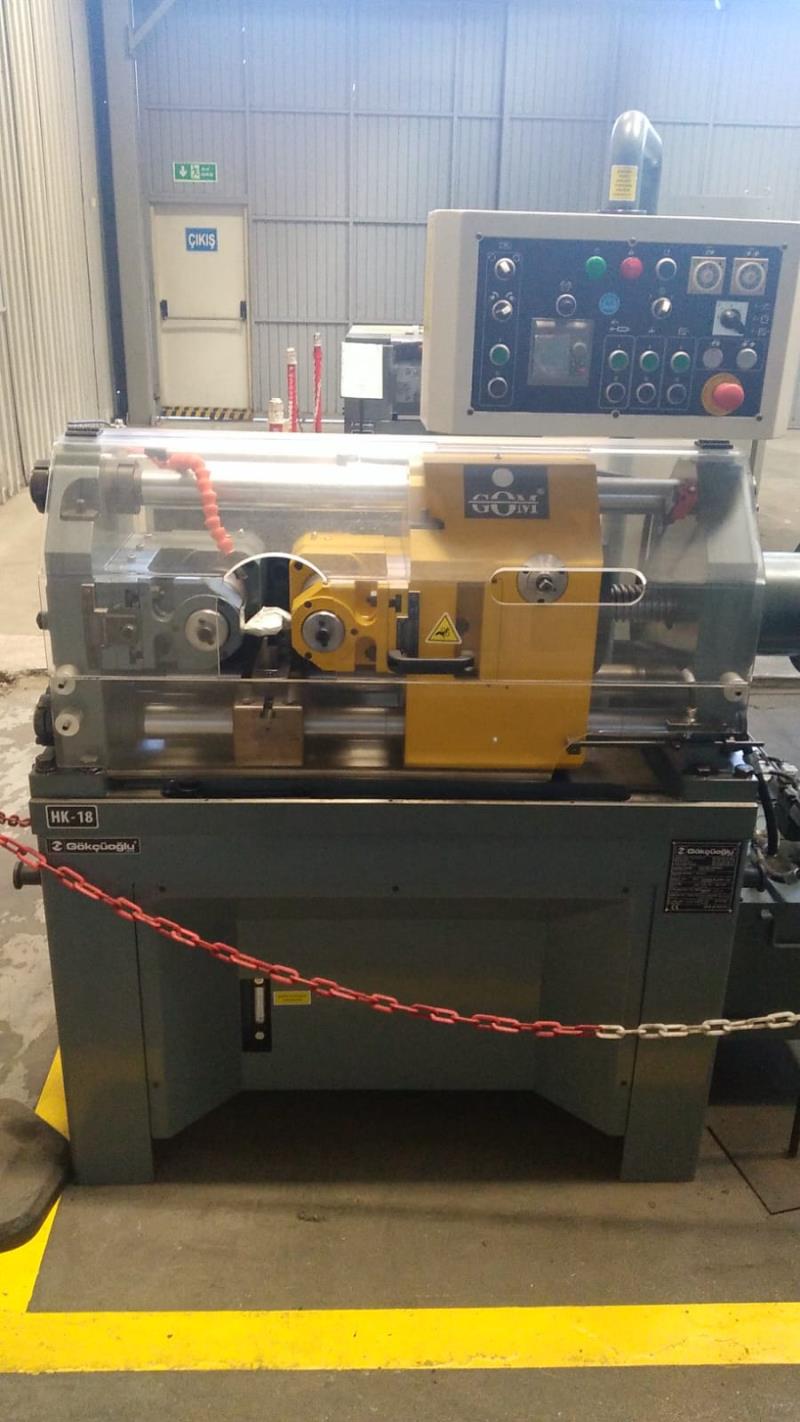

GOVAMA HK-18 NEW TWO DIE HIGH SPEEED CYLINDRICAL THRUFEED THREAD ROLLING MACHINE

Manufacturer
GOVAMA

Model
HK-18

Stock #
NEW-HK18

Condition
New

Year
2024

Request a Quote

Specifications

Rolling Force (kN): N/A

Speed Range (rpm): 85-285

Min-Max Die Dia (mm): 140-190

Die Spindle Dia (mm): 54

Max Die Length (mm): 125

Workpiece Dia (mm): 3-30

Max Pitch (mm): 3

Swivel Angle: +/- 8Deg

Main Motor (kW): 7.5

Total Power (kW): 10.1

Weight (kgs): 1920

• High speed gearbox

• High efficiency 10hp variable speed motor

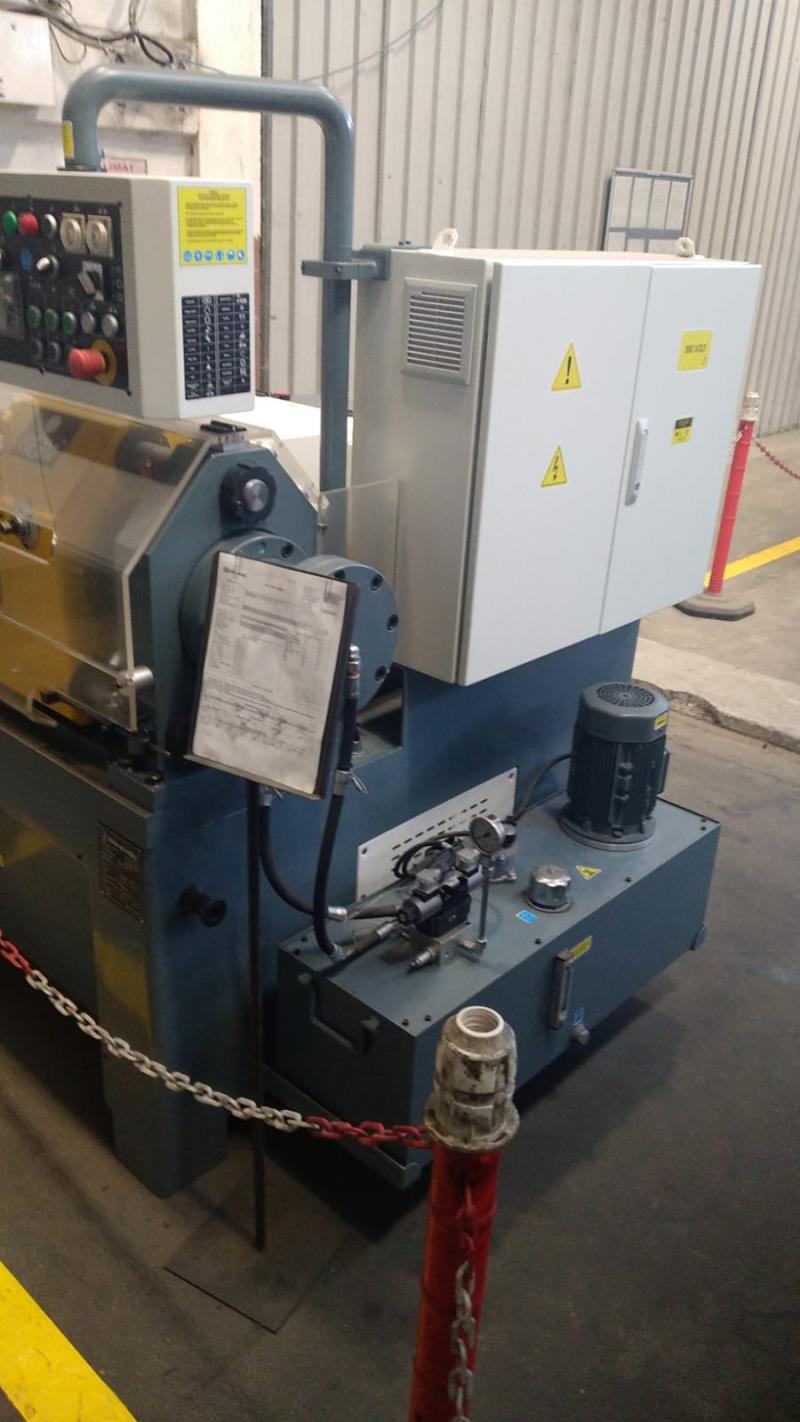

• Semi Hydraulic (re. Hydraulic system is used for positioning of moveable body (not applying rolling force).

• Thread dies are using entrance

• 1 Workrest blade for M10

• Transition pipes

• Production range of machine:

• Between M6 – M14 (In case Rolling material AISI 1008-1010)

• Performance values:

- M6/M8 about 5-7 sec/mt

– M10/M12 about 9-11 sec/mt

Machine, process flow:

• Operator sets the machine as per normal

• Press on start button, then dies will approach.

• Place the part on work rest blade and push through the dies

• Machine will start rolling.
