Govama Model 3R-21 TRC (21Ton) 3-Die Cylindrical Thread Rolling Machine for Hot Rolling of Railway Bolts

Manufacturer
GOVAMA

Type
Threading Machines, Thread Rollers, Cylindrical Die

Model
Model 3R-21 TRC (21Ton)

Stock #
Not Specified

Condition
New

Year
Not Specified

Request a Quote

Specifications

Equipped With

Specifications:
Rolling Force (kN): 10-210
Speed Range (rpm): 47.5-123.5
Min-Max Die Dia (mm): 80-140
Die Spindle Dia (mm): 40
Max Die Length (mm): 80
Workpiece Dia (mm): 14-90
Max Pitch (mm): 2
Swivel Angle: +/- 8Deg
Main Motor (kW): 15
Total Power (kW): 19.3
Weight (kgs): 2500

Features:
> The 3R-21 TRC series of hydraulic rolling machines
are equipped with three rolling spindles, &
with three moving heads.

> All machines equipped with PLC controls and AC Drives.

> The machine have radial die loads up to 21 Ton
(210 kN)

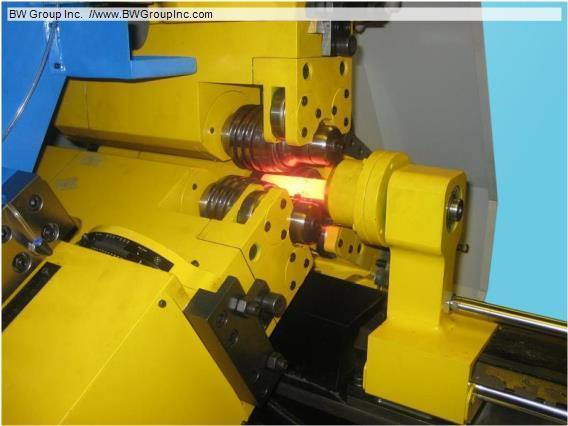

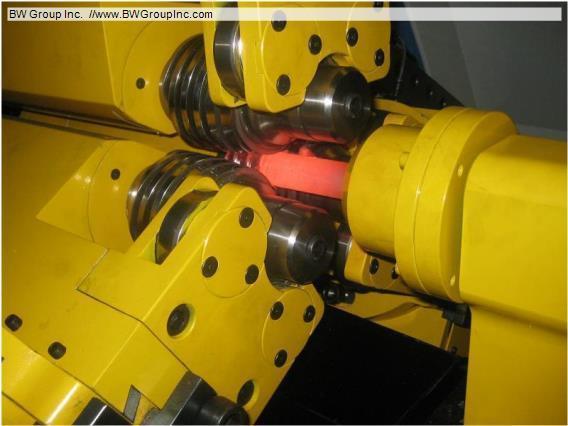

> The 3R series machines are specially designed for
rolling of Railway bolts in hot form using an
induction heater.
