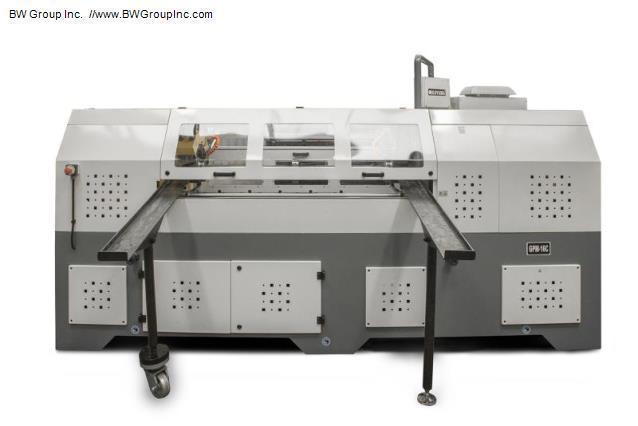

Govama Model GPM-25C Planetary Die Double End Thread Rolling Machine

Manufacturer
GOVAMA

Type
Threading Machines, Thread Rollers, Planetary Die

Model
Model GPM-25C

Stock #
Not Specified

Condition
New

Year
Not Specified

Request a Quote

Specifications

Equipped With

Specifications:
Min-Max Workpiece Dia: 11-24mm
Pitch: up to 3mm
Max Thread Length: up to 150mm (each end)
Total Length of Part: min 400mm - max 1500mm
Main Motor: 46kW
Speed Range: 25-50rpm

Features:
The GPM series models offer single or double ended thread rolling, from diameters of 6-33mm (1/4"-1-1/4") either via the standard magazine feeder, or automated via straightening & cutting option attachments. Bending attachments also available as an option for production of a variety of bent products such as J-bolts, U-bolts, etc.

With advanced construction and operation logic having rotation of main spindle & product carriers fully synchronized, die lifetime is greatly enhanced

Downloads

GOM GPM Brochure (2022).pdf
