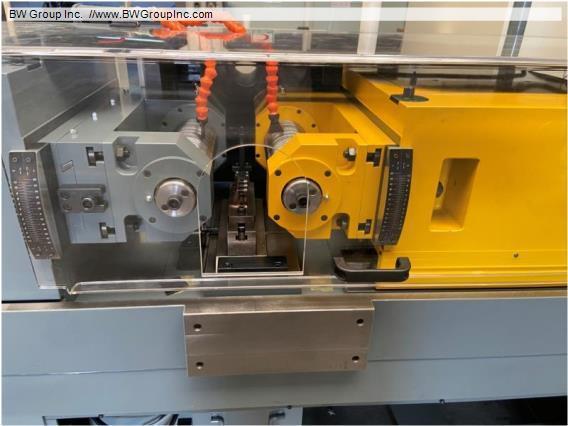

Govama Model K-50 (50Ton) 2Die Cylindrical Thread Rolling Machine

Manufacturer
GOVAMA

Type
Threading Machines, Thread Rollers, Cylindrical Die

Model
Model K-50 (50Ton)

Stock #
Not Specified

Condition
New

Year
Not Specified

Request a Quote

Specifications

Equipped With

Specifications:
Rolling Force (kN): 10-500
Speed Range (rpm): 16-50
Min-Max Die Dia (mm): 160-210
Die Spindle Dia (mm): 80 (100)
Max Die Length (mm): 230
Workpiece Dia (mm): 4-120
Swivel Angle: +/- 12Deg
Main Motor (kW): 30
Total Power (kW): 40
Weight (kgs): 5200

Features:
> The K series of hydraulic rolling machines
are equipped with two rolling spindles, with one
moving head in linear guides which have auto lubrication system.

> K series have an open-top area which has give advantage to integrate automatic feeding & discharge

> All machines equipped with AC Variable Speed Drives, & Swivel spindles for both infeed/thrufeed operation.

> Automation, PLC/CNC options are available.

> The machines have radial die loads, ranging from 15 -50 Tons (50 to 500 kN)

> These machines are perfectly suitable for all
types of threading on cylindrical materials (ISO,
ACME, TPN, WORM SCREWS, KNURLS, SPLINES, etc.).

Downloads

GOM K Brochure (2022).pdf
