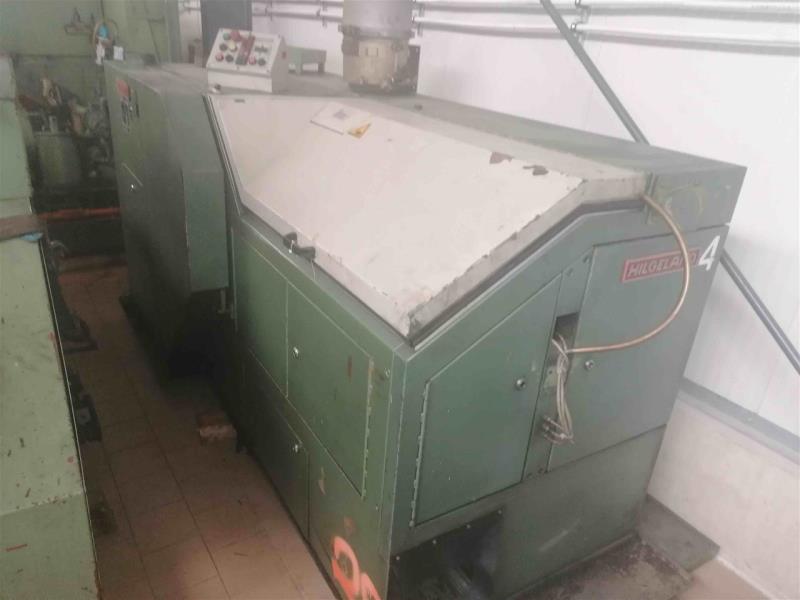

HILGELAND HE6-60 HILGELAND HIGH SPEED SINGLE STROKE COLD HEADER

Manufacturer
HILGELAND

Type
Cold Header, Solid Die, 1 Die 1 Blow

Model
HE6-60

Stock #
8290

Condition
Used

Year
1988

Request a Quote

Specifications

Equipped With

Max.Wire Diameter: .236" (6 mm)
Min. Wire Diameter: .079" (2 mm)
Ejecting Length / Die Side, max: 2.360" (60 mm)
Punch Ejector Stroke: .394" (10 mm)
Cut-off Length, max: 3.150" (80 mm)
Output, constant up to max. *: 600 pcs./min.
Main Motor: 15 HP (11 kW)
Machine Weight, approx.: 9,261 Lbs. (4,200 kg)
Machine Dimensions (LXWXH): 151" x 71" x87" (3.85 x 1.82 x 2.21m)
Standard Tool Diameters:
Cutting Bush: .787" (20 mm)
Solid Die: 1.575" (40 mm)
First Punch: 1.181" (30 mm)

Location: EUROPEAN PLANT
