Equipped With

MACHINE FEATURES/TECHNOLOGY OPTIONS:

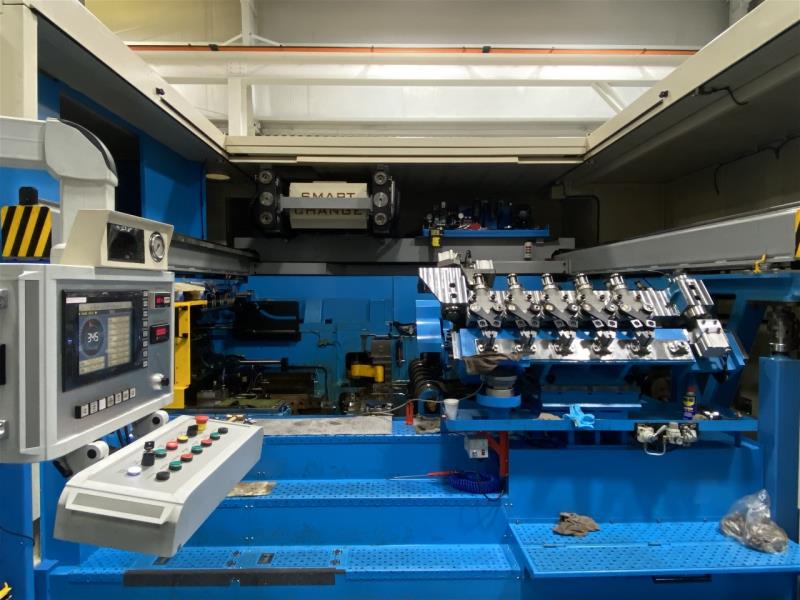

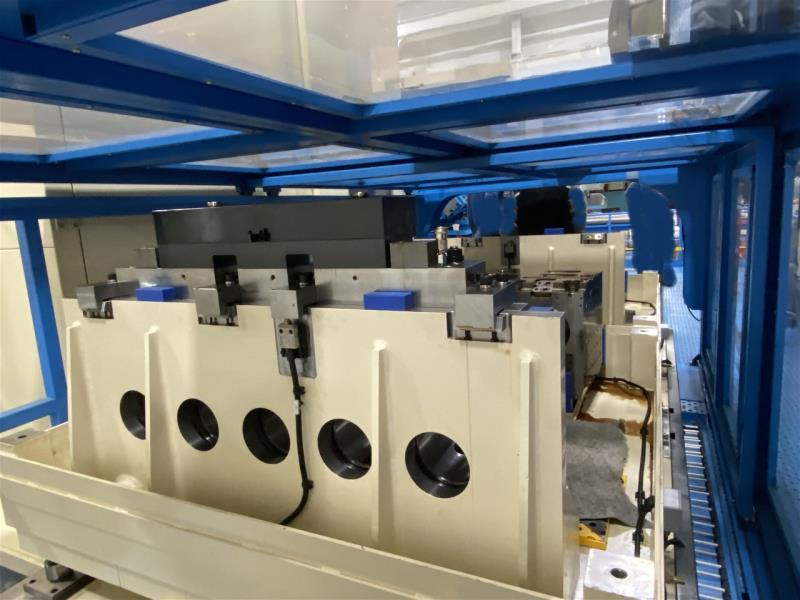

1) Built-in Robot tool change system
A built-in tool change system for quick die change with better compact design. The die block and punch block can be replaced only within 1.5 minutes. (the world?s first developed in 2014)

2) Servo Type Slow Forging Technology
A device which allow safe tool setup with actual forging at low speed by a pulse jog system. Operators can do tool setup easily and it also saves energy compared to conventional tool setup by jog buttons.

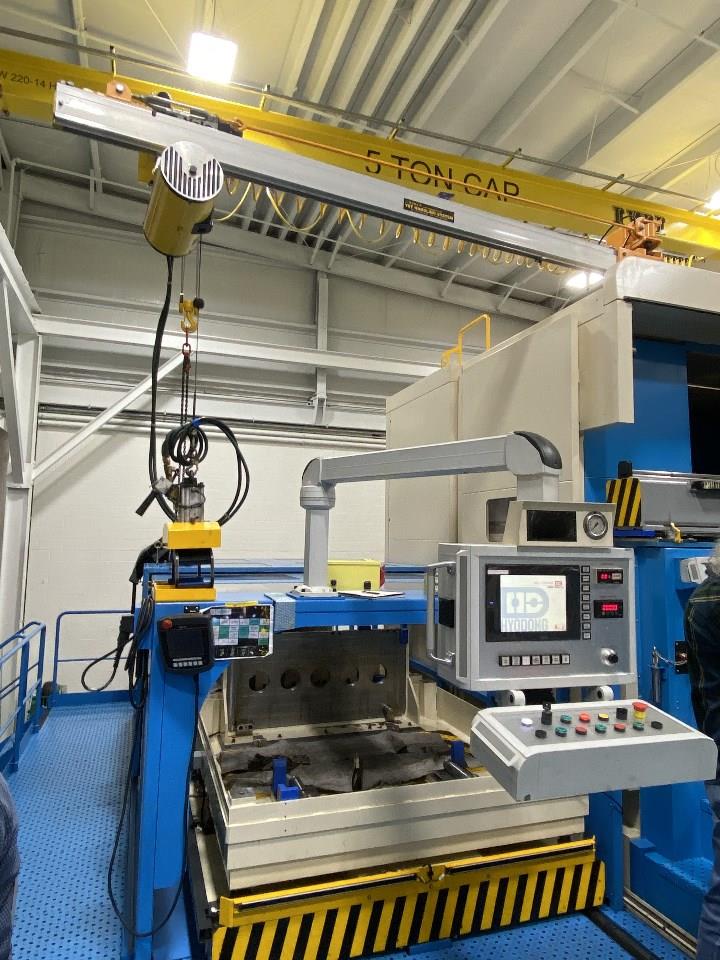

3) Air Lifter System
Air lift device can hold the production products or goods of industrial by only compressed air and is a handler that can be handled the goods with up, down, left and right by three-dimensional arc moving in a sense of weightlessness without any S/W control.

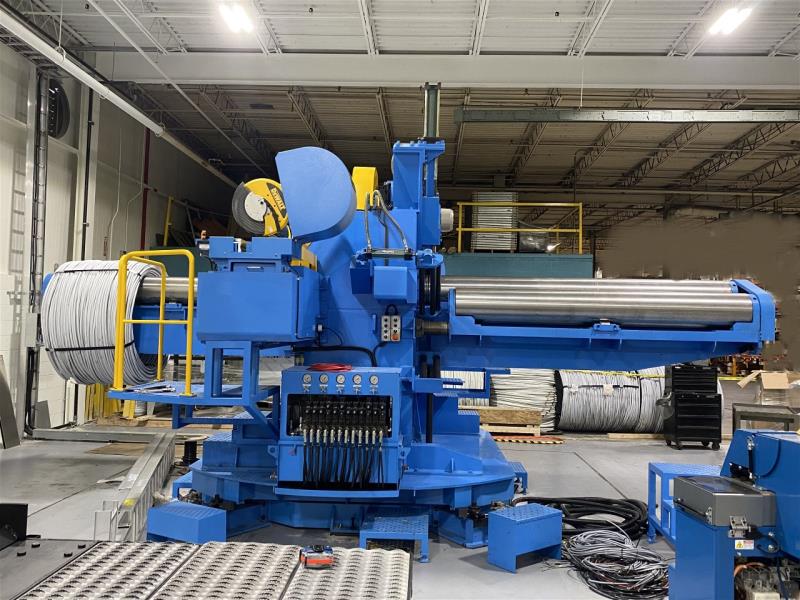

4) Double Uncoiler
A device that maximizes operation time. It allows the next wire coil to be used by combining two uncoiler units on a rotating base.

Bolt Size: M36 (55AF)
No of dies: 5 Dies
Cut-Off (Dia x Lgth): 38 x 465mm
Output speed: 70ppm
KO: 300mm
PKO: 50mm
Die dia: 170mm
Die pitch: 192mm
Forging load: 6,500 kN
Motor: 160 kW
Weight, approx.: 140,000 kgs
