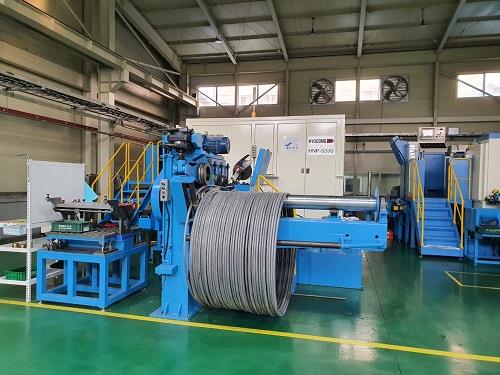

HYODONG HNP-533 5DIE NUT PARTS FORMER

Manufacturer
HYODONG

Type
Parts Formers, 5 Die

Model
HNP-533

Stock #
8818-1

Condition
Used

Year
2003

Request a Quote

Specifications

Equipped With

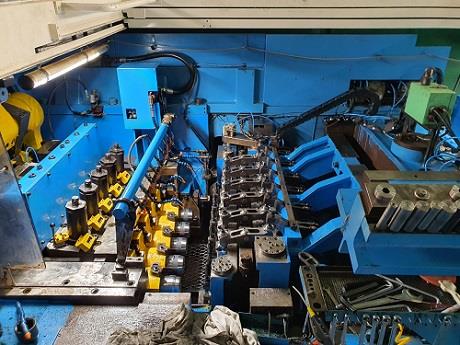

Forging stations: 5 station
Forging dia: 33(32AF) mm
Open up-dia: 46 mm
Forging load: 400,000 kgf
Cut-off Dia: 33(29) mm
Cut-off length: 30 - 150 mm
Cut-off knife size: 105 x 34 mm
Cut-off quill size: 100 x 155 mm
Punch dia: 110 x 282 mm
Die dia: 150 x 240 mm
Center distance between dies: 168 mm
P.K.O stroke: 40(50) mm
K.O stroke: 120 mm
Max RPM: 100 pcs/min
Main motor: 90 kw
Machine dimensions: 7.5L x 4.5W x 2.8H
Machine weight: 80,000 kg
Electric capacity: 100 KVA
Air capacity: 4.0 L/J
Lubrication oil capacity & Coolant oil capacity: 1200 L
Lubrication pump capacity: 1.5 kw
Coolant pump capacity: 1.5 kw

Location: Asia
