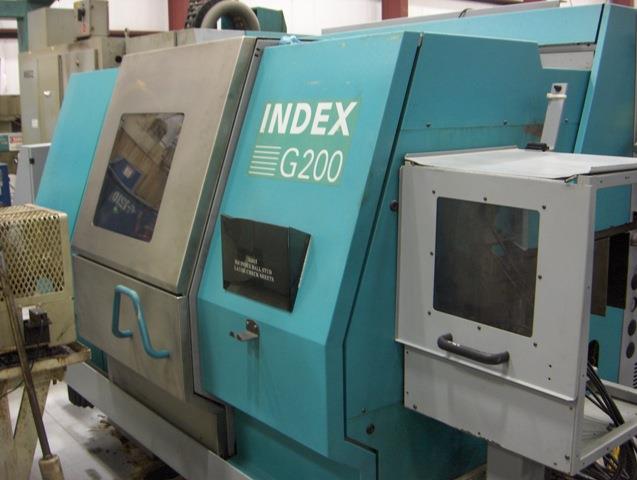

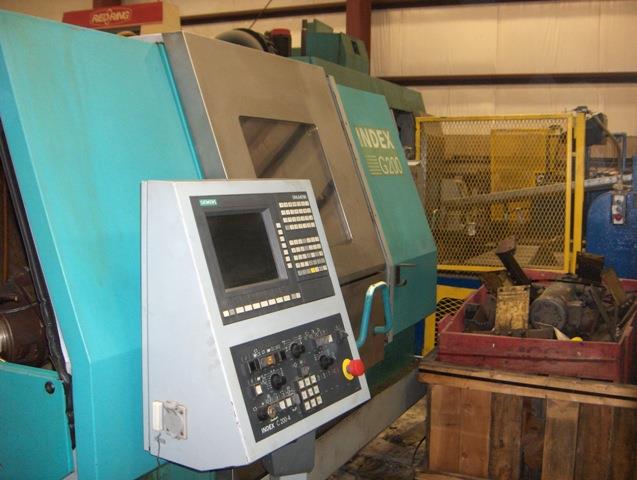

INDEX G200 Turn-Mill Center

Manufacturer
INDEX

Type
Turning Centers

Model
G200

Stock #
8618

Condition
Used

Year
2002

Request a Quote

Specifications

Equipped With

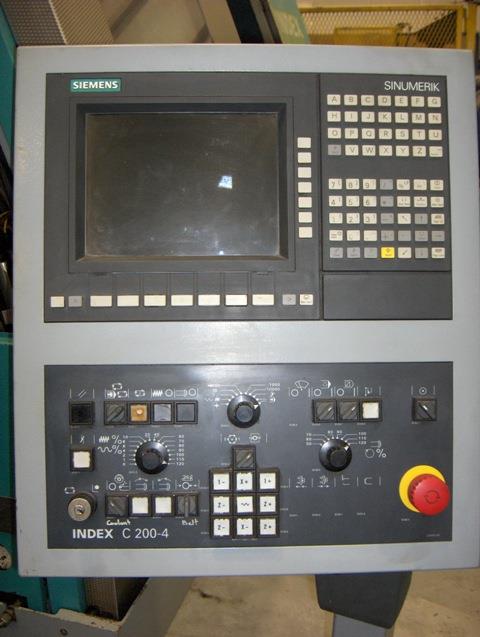

CONTROL: Index C-200-4 CNC (IDENTICAL TO SIEMENS 840C)

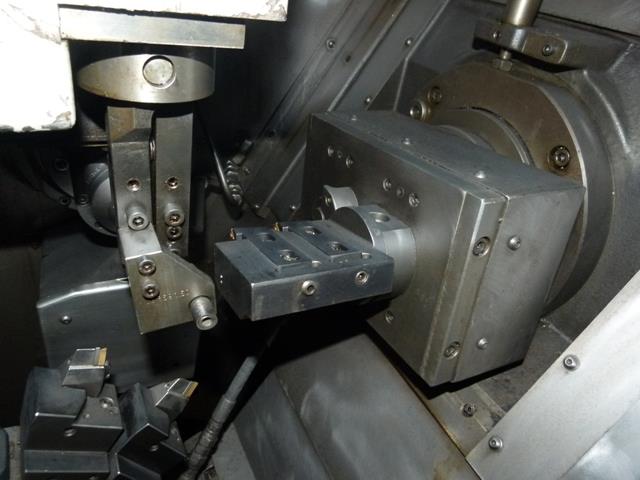

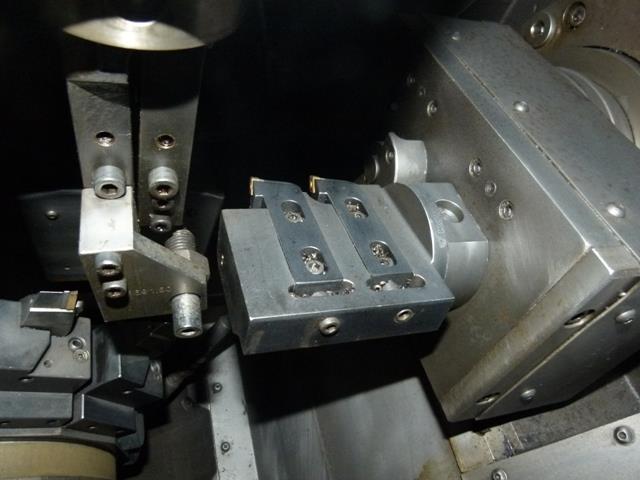

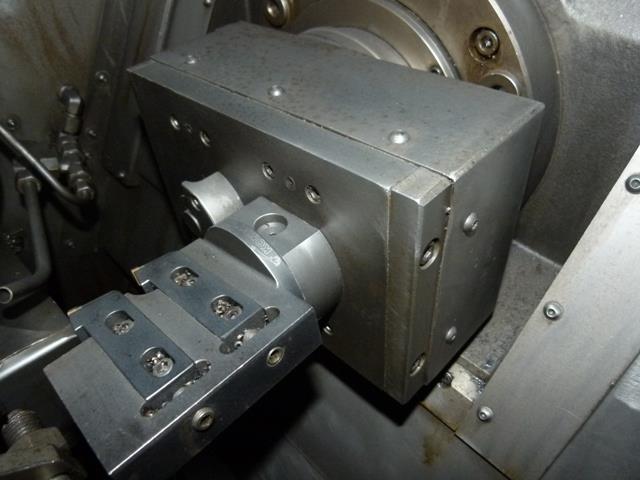

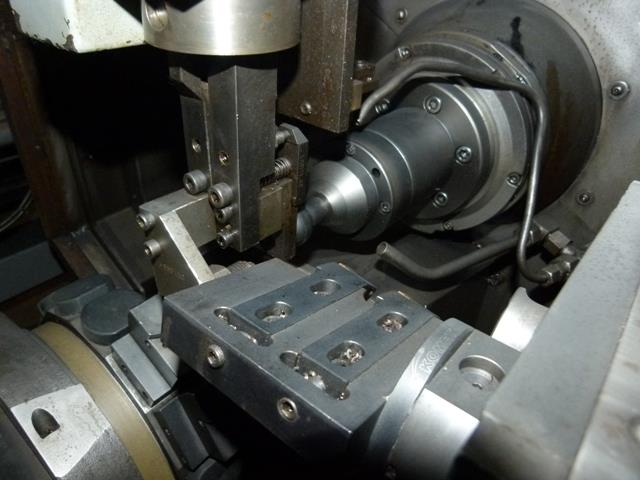

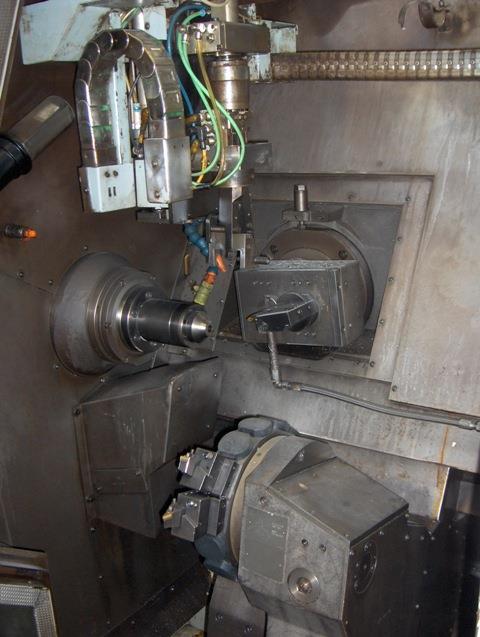

TURRET HEAD: 14 TOOL STATIONS / MOUNTED ON #2 RIGHT-HAND SLIDE

ALSO AVAIL -- ADDITIONAL:

STACE ALLEN COLLET CHUCK WITH LOCATOR
GANTRY LOADING SYSTEM
HINGED BELT CHIP CONVEYOR
TORIT DRYFLO OIL MIST COLLECTOR MODEL DMC-D1 COOLANT
MIST EXTRACTION AND FILTER SYSTEM

VALENITE 767 GAGING SYSTEM WITH LCD DISPLAY
SPECTRUM FEEDER CONVEYOR SYSTEM

WORKING RANGE: TURNING LENGTH: 400mm / 15.75?
SWING DIAMETER: 420mm / 16.54?
SPINDLE: D60
NOSE DIAMETERS: 140mm / 5.5? O.D. / 85mm / 3.35? I.D.
BAR DIAMETER: 60mm / 2.36? MAX.
SPEED: 5000 RPM MAX.
FRONT BEARING: 100mm / 4?
POWER: 20/29 KW
ELECTRICS: 400V/3PH/60HZ
WEIGHT: 5,200 KG / 11,440 LBS.

Location: N.AMERICA
