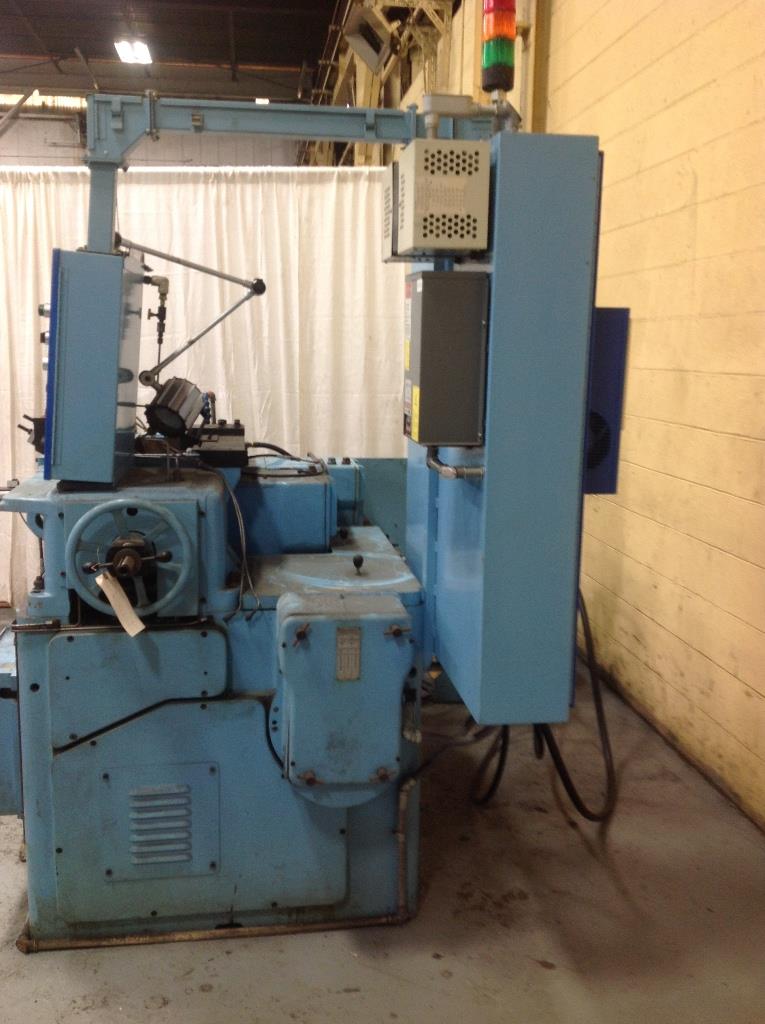

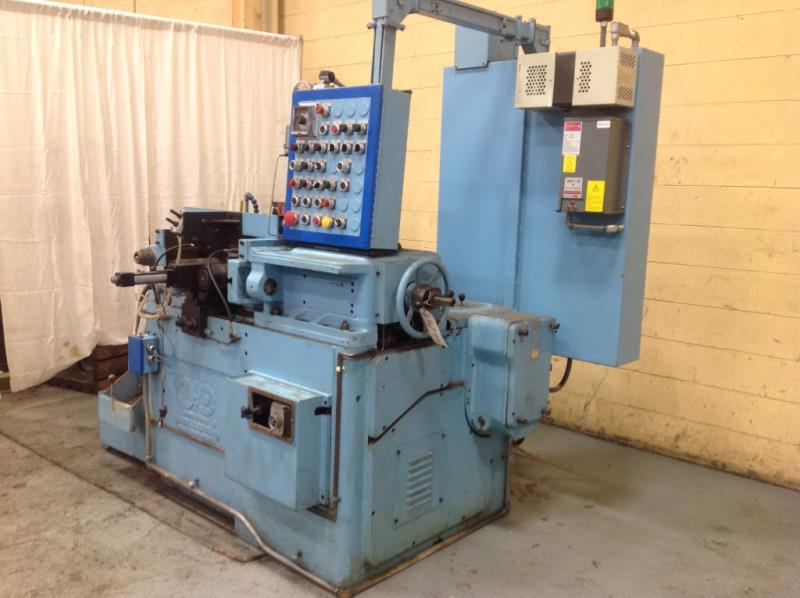

LANDIS 24PW “Lan-Hy-Rol” TWO DIE CYLINDRICAL THREAD ROLLING MACHINE

LANDIS 24PW "Lan-Hy-Rol" TWO DIE CYLINDRICAL THREAD ROLLING MACHINE

Manufacturer
LANDIS

Type
Threading Machines, Thread Rollers, Cylindrical Die

Model
24PW "Lan-Hy-Rol"

Stock #
8527

Condition
Used

Year
Not Specified

Request a Quote

Specifications

Equipped With

* Extended spindles

Diameter Range: 0-3"
Finest Pitch -UN OR AN: 48 TPI
Coarsest Pitch -UN OR AN: 2 TPI
Coarsest pitch Acme: 4 TPI
Coarsest pitch worm thread: 7 Diameteral pitch/equivalent
Thread Lgth Max. Infeed: 6"
Spindle Diameter: 3"
Spindle speeds (10 HP) Min-Max: 21 RPM - 126 RPM
Spindle Length: 13-1/2"
Die Roll Diameter: 8 5/8"
Roll Pressure -variable: 36,000 Lbs. (18tons)
Floor Space: 86" x 71"
Weight, approx: 6,700 Lbs.

Location: N.AMERICA
