Equipped With
Maximum Wire Diameter: .135"
Minimum Wire Diameter: .031"
Maximum tensile strength:
: 90,000 PSI (620 N/mm²) at .135" (3.4mm)
: 115,000 PSI (790 N/mm²) at .080"
Feed Speeds (Variable): Up to 400 FPM
Pieces per Minute: 200ppm UP TO 24" long
Maximum Cut-Off Length: 4 Ft.
Min. Cutoff Length: 3" (76mm)

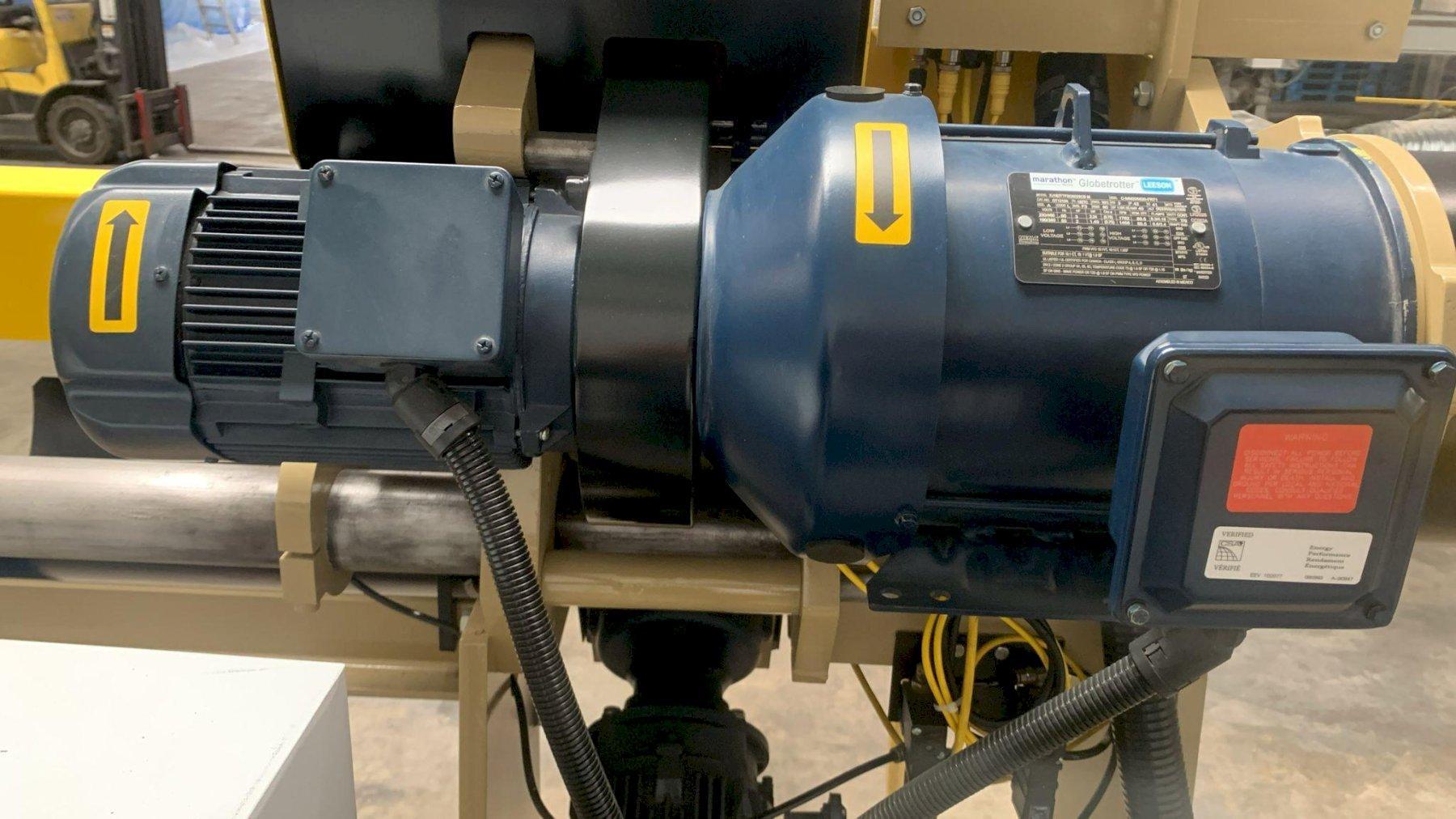

Motor: 3hp

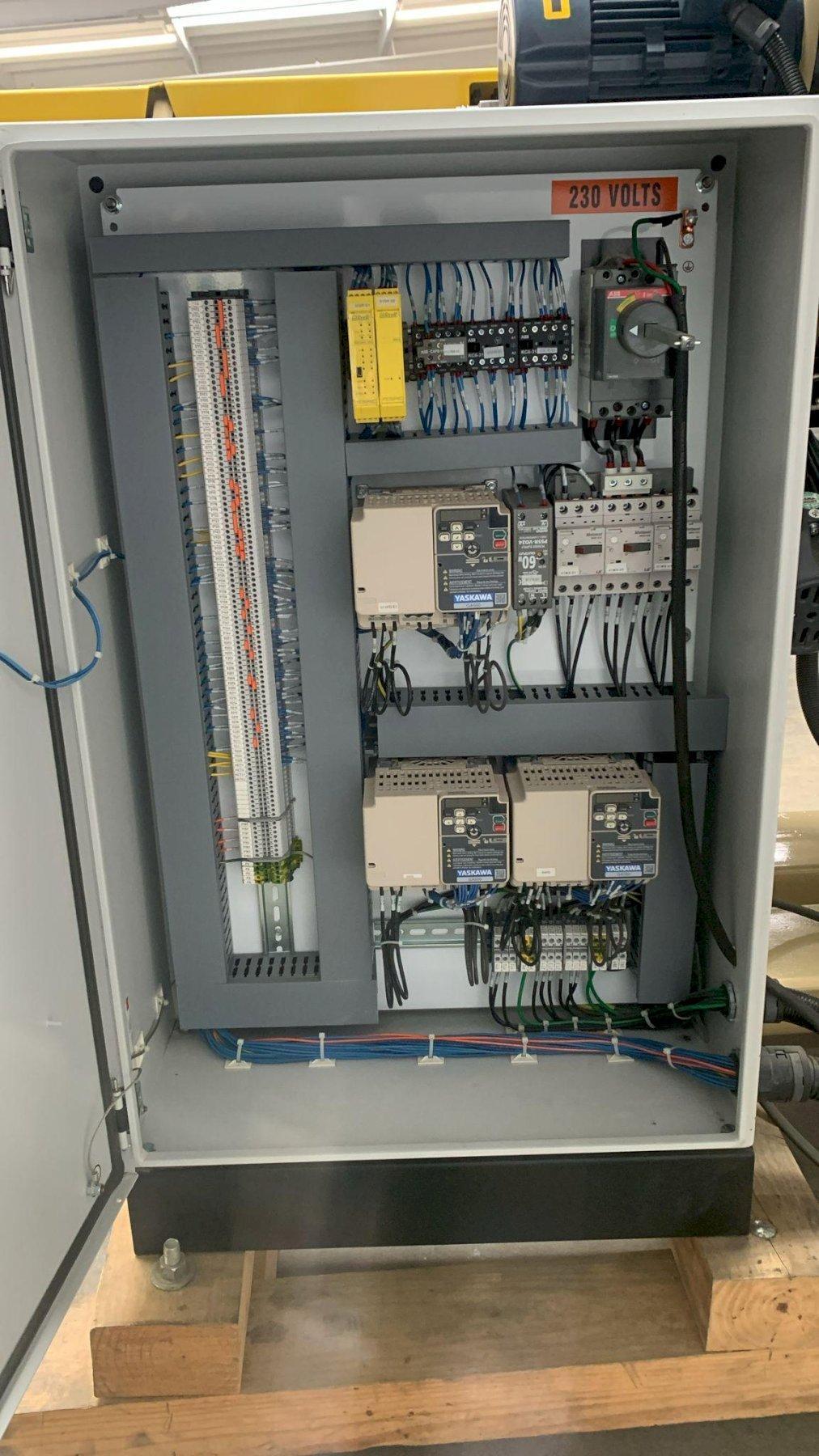

Electrics: 220V/3/60
Dimensions (Approx.): 69"L x 28"W
Weight (Approx.): 1,110
Late model 2024 machine, "Like New condition", Very little use on it 1126hrs,
Features:

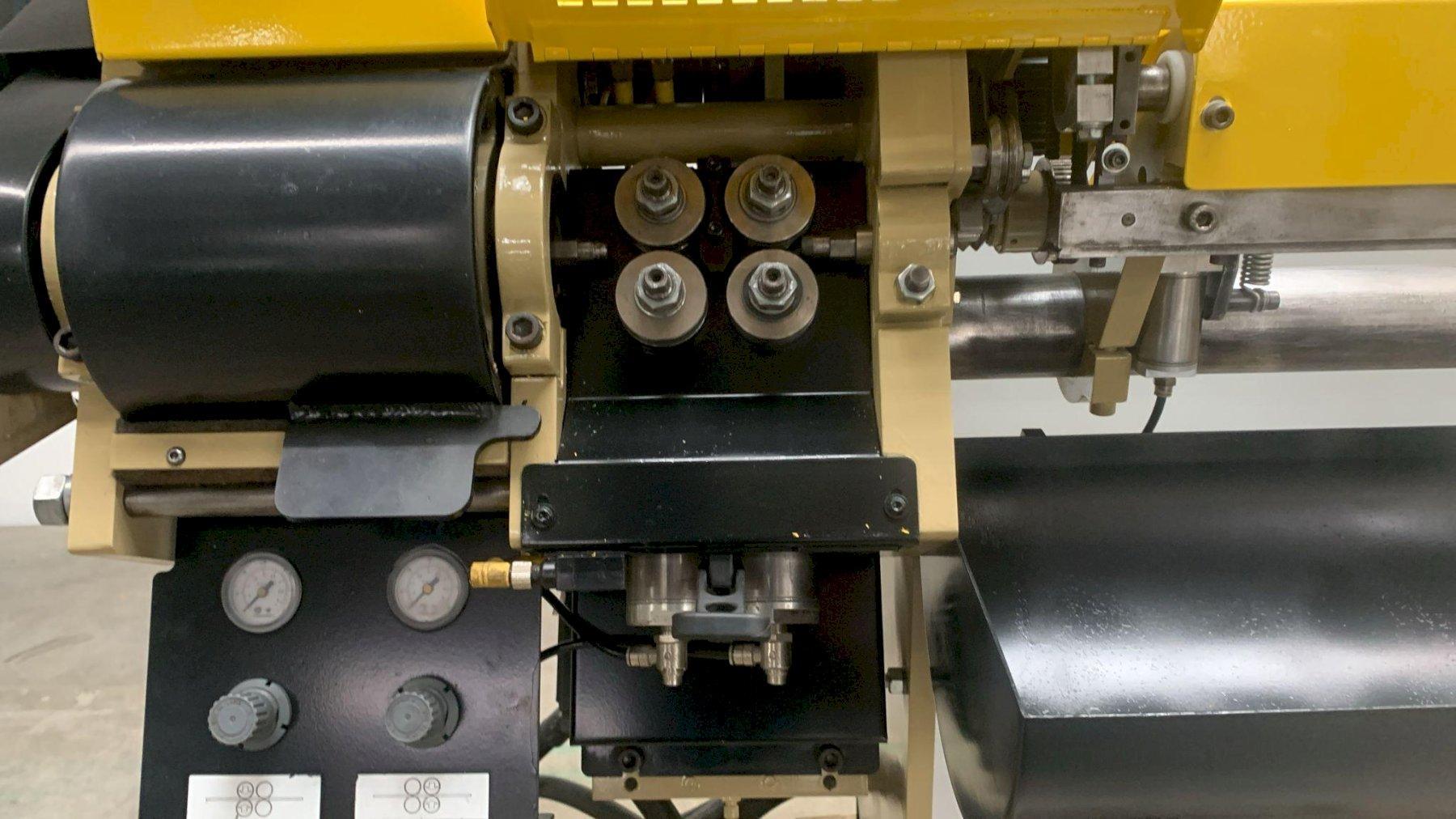

• Variable speed 4 roll exit feed housing with independent pneumatic feed roll pressure adjustment for absolute settings
• 400 FPM (122 MPM) feed roll speed NOTE: 400 FPM (122 MPM) is feed roll speed not actual production speed. Production speeds will vary according to material, diameter and length of cut.
• “PATENTED CLUTCHLESS” cutoff, with Auto Cycle for increased production on parts under 12" (305mm) in length. Note: 3" (76mm) minimum cut length
• Knock out wiper system to assist in wire dropout

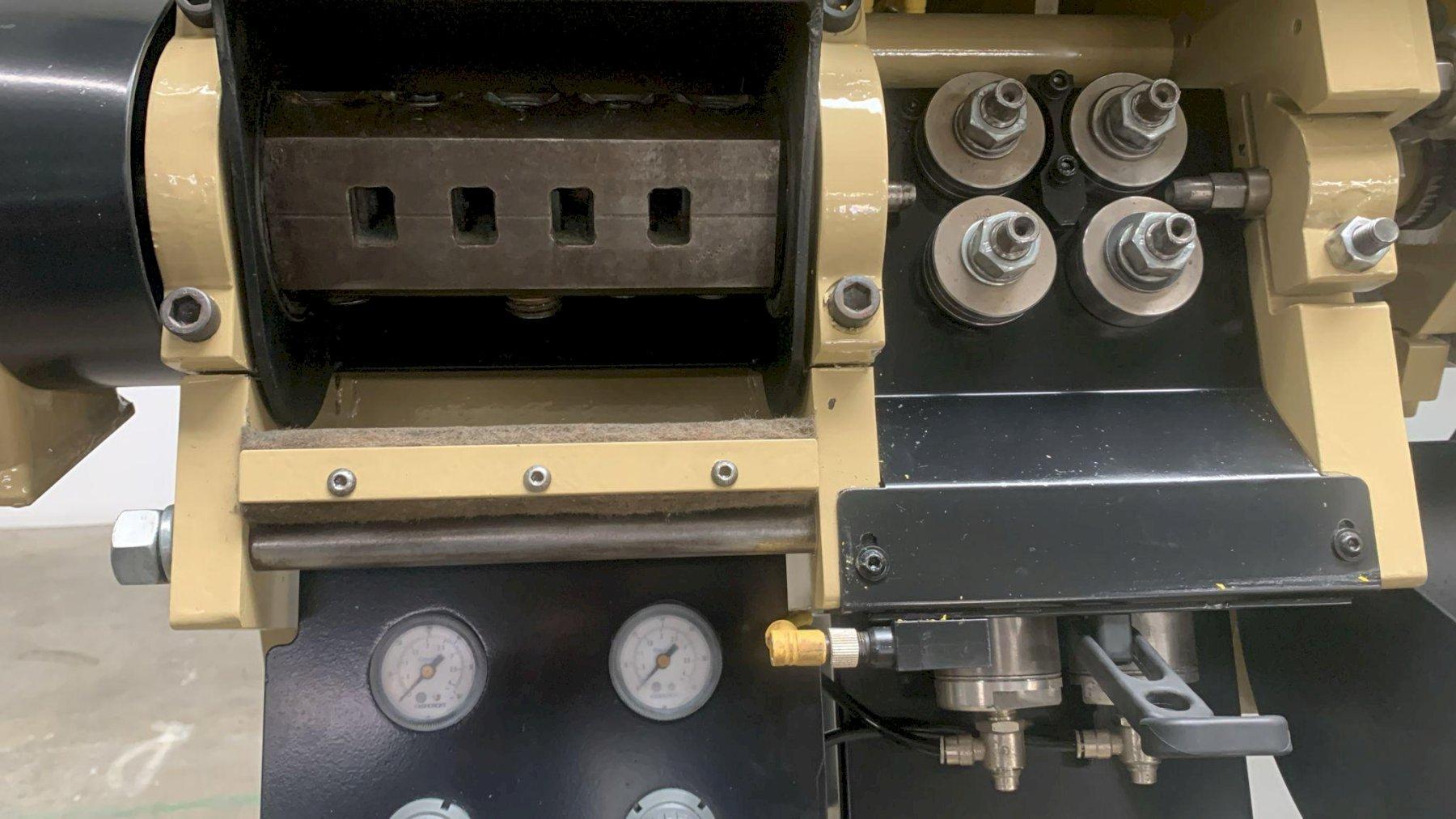

• Variable speed, 9000 RPM maximum, (5) die straightening arbor. Provides greater range of adjustment for higher tensile strength material
• Light weight pneumatically adjustable Micro-Fine length control system designed for small diameter materials
• Entry wire guide assembly with lubrication box (See option for Gravity oil lube application system for wire
