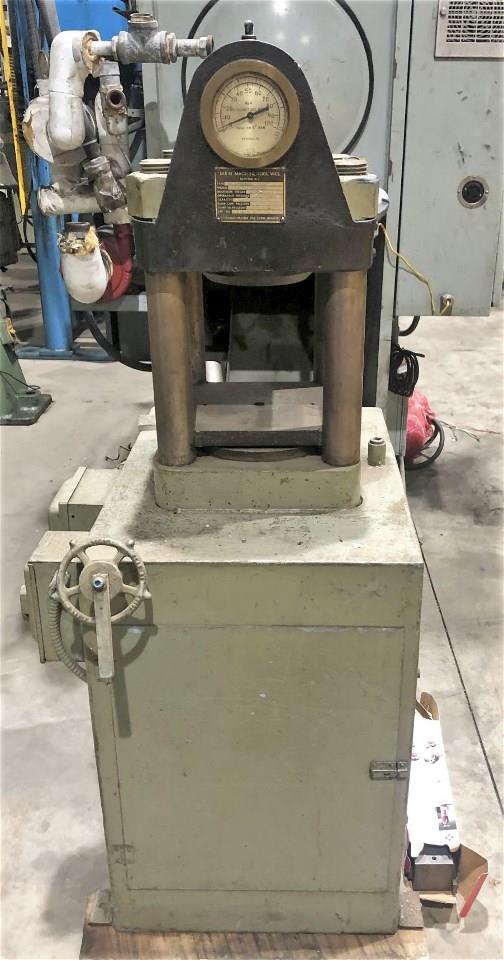

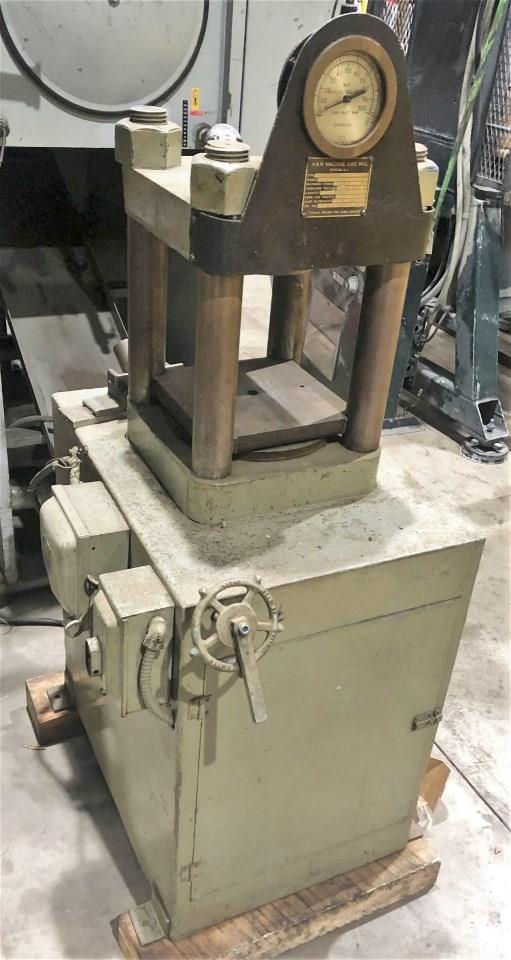

MODERN 1A 4-POST HYDRAULIC HOBBING PRESS

Manufacturer
MODERN

Type
Presses, Hobbing

Model
1A

Stock #
8692

Condition
Used

Year
Not Specified

Request a Quote

Specifications

Equipped With

* PRESS CONTROLS RELAY LOGIC CONTROLLER * HYDRAULICS SIMPLEX ENGINEERING CO HYDRAULIC PUMP MODEL: 20 LA-H * ELECTRICAL 2 HP 220/440V-3-60 CHARLEROI MOTOR | 6 / 3 AMPS Capacity: 100 Ton Max Stroke: 6" Daylight: 3" TO 9" Overall Bed & Ram Area: 10.75" X 10.75" (RL X FB) Distance Between Posts: 8.25" X 8.25" (RL X FB) Usable Bed Area: 8.25" X 10.75" (RL X FB) Floor To Bed Height: 35" 4 COLUMN / POSTS SIZE: 2.5" DIA. Dimensions: 28" X 37" (RL X FB) X 60" HIGH Weight approx.: 5,000 LBS. Location: N.AMERICA

Contact us today to see how we can help with your machinery and equipment needs!
