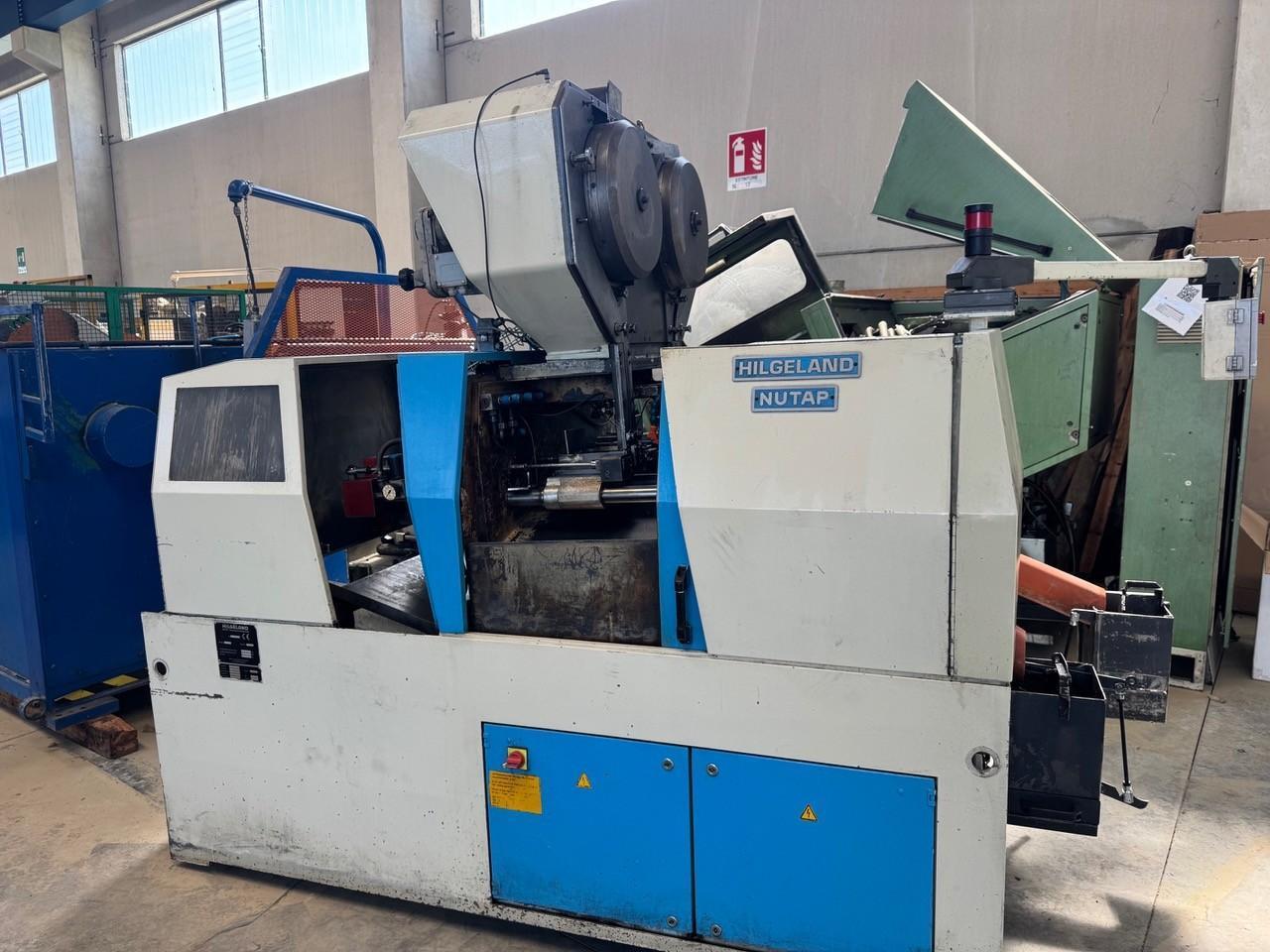

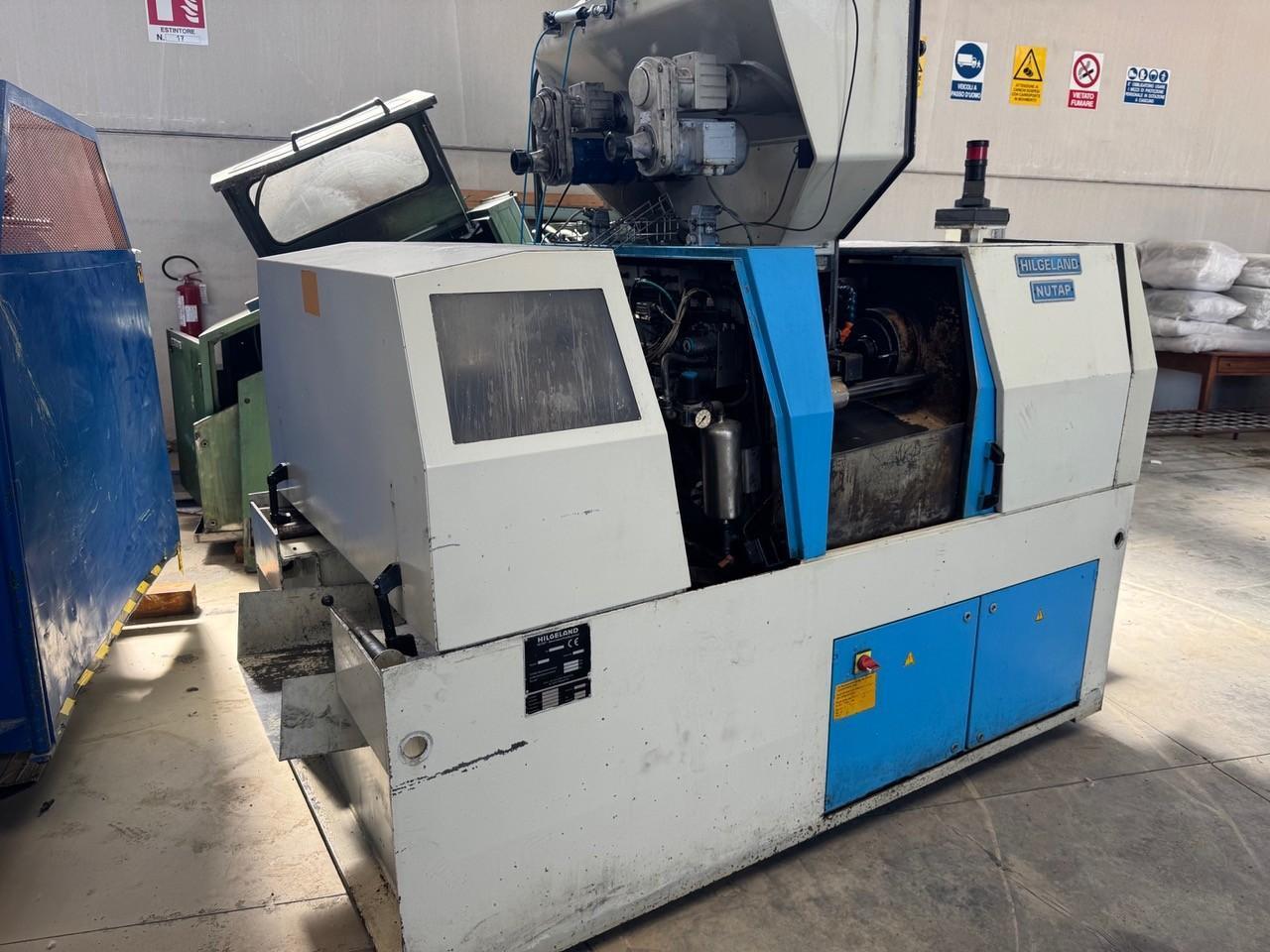

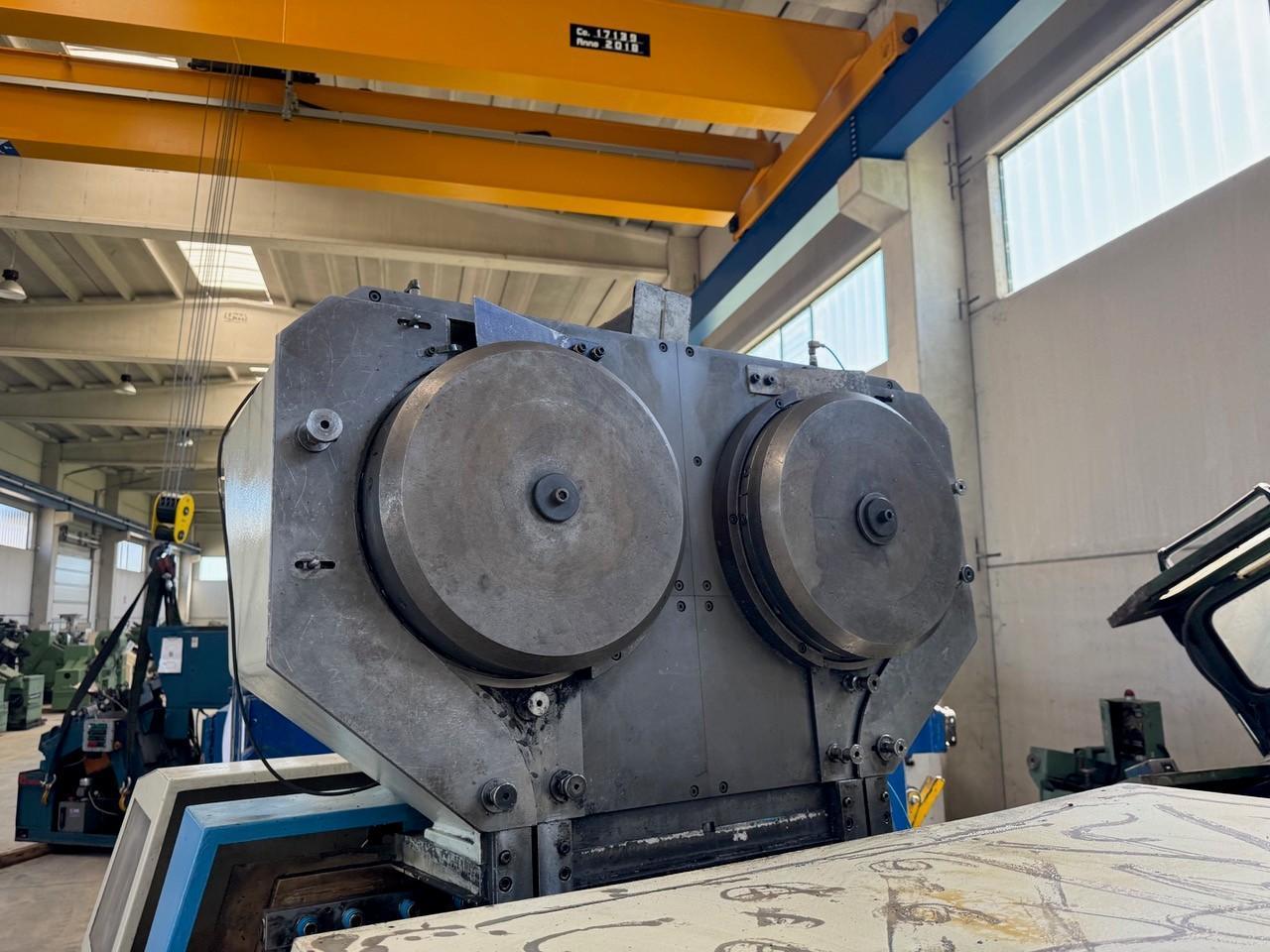

NUTAP MAS-24F Twin Spindle NUT TAPPING MACHINE

Manufacturer
NUTAP

Type
Nut Tappers

Model
MAS-24F

Stock #
9214

Condition
Used

Year
2000

Request a Quote

Specifications

Type

2-Spindle

Size Range

M12 - M33 (1/2" - 1")

Maximum Thread Diameter

1.299 inches

Maximum Thread Diameter

33 millimeters

Minimum Thread Diameter

.472 inches

Minimum Thread Diameter

12 millimeters

Max. Outside Diameter

50 millimeters

Max. A/F square

35 millimeters

Max. A/F hex

42 millimeters

Max. A/F octagonal

44 millimeters

Production Rate

Variable speed: 200 - 1800 1/min

Output, standard hex nut

120 ppm

Power of spindle motor

7.5 kW

Weight (Approx)

3200 kilograms

Dimensions, approx

2500 x 1400 x 2300 mm

Equipped With

Features:
* Tapping Precision Thread of Hex, Square, Flange, Round, 12 Point, Wheel & Special Nuts
* Pitch Cam Feed Control

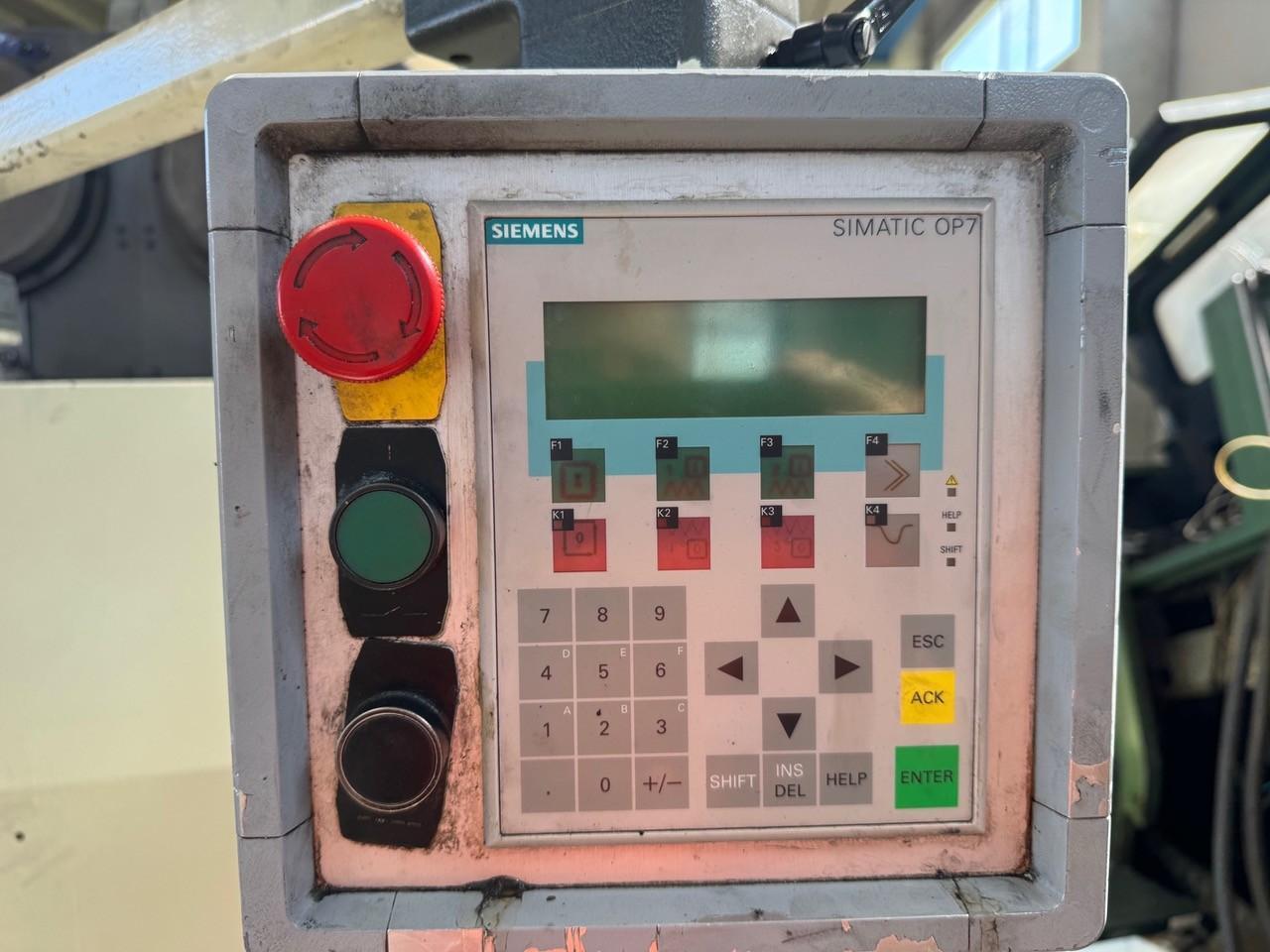

* PLC Control & Process Tap Monitoring
* Variable Speed DriveØ Very Low T.I.R. and Tight Thread Tolerances

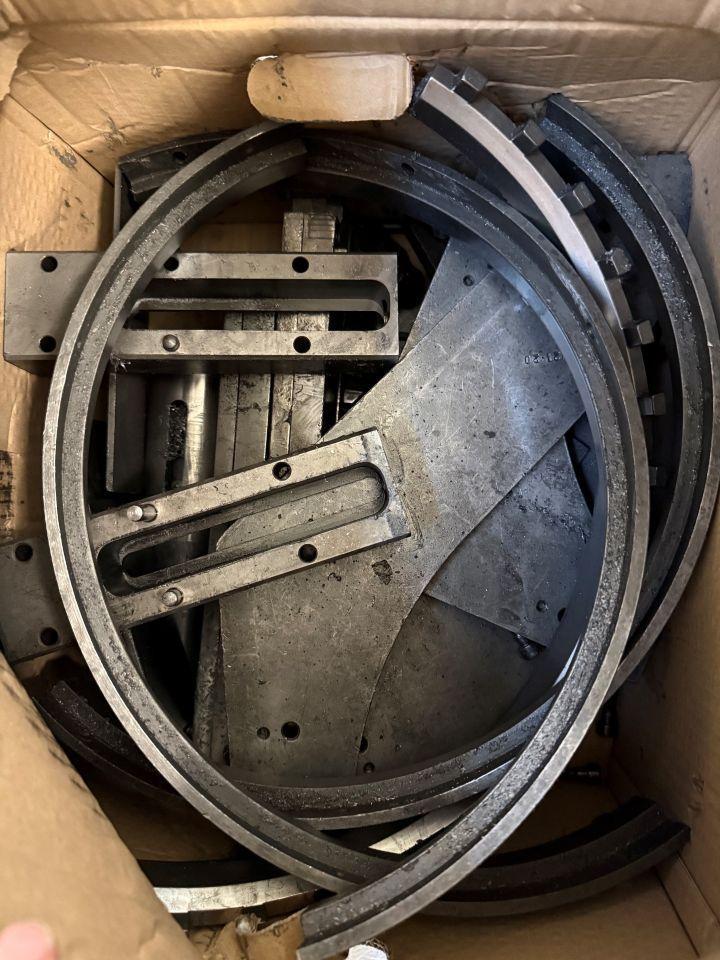

* Quick Change Tooling

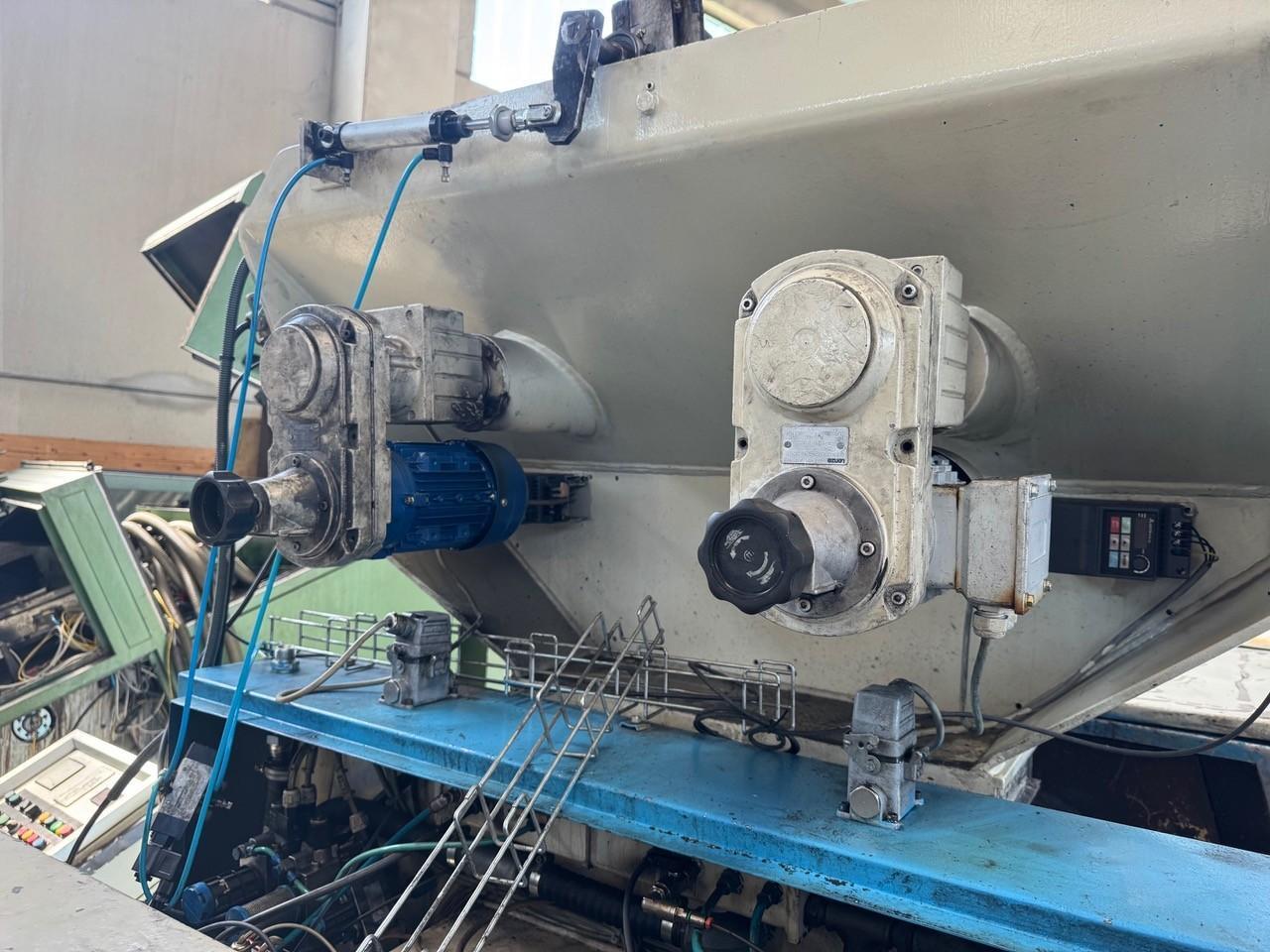

* Rotary Hopper or Vibratory Feeder
* AC Frequency Control Motor
* Simple Operation
