NUTAP UNT 20 UNT20 (3/4″) High Precision High Speed One Spindle Automatic Nut Tapper

NUTAP UNT 20 UNT20 (3/4") High Precision High Speed One Spindle Automatic Nut Tapper

Manufacturer
NUTAP

Type
Nut Tappers

Model
UNT 20

Stock #
New

Condition
Used

Year
Not Specified

Request a Quote

Specifications

Equipped With

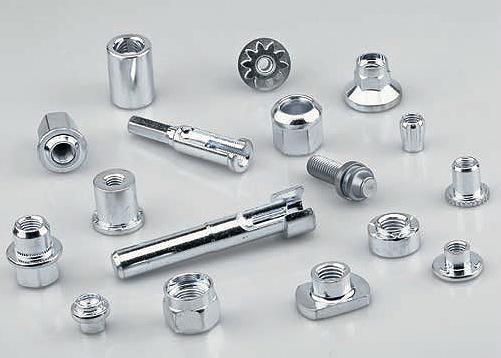

* Tapping, Boring & Counter-boring of Special Nuts
* Specially Suited to Thread Blind Borings & Extremely Long Parts
* PLC Control & Process Tap Monitoring
* Full Electronically Control of Indexing Plate, Feeding and Tapping
* Cutting Feed via Clearance-Free Re-circulating Ball Spindle
* Adjustable Magazines
* Spindle & Roller Bearings with Lifetime Lubrication
* Automatic Transport of Chips

Size Range: M8 - M20 (5/16" - 3/4")
Max. Outside Dia: 50mm
Max. Length of Parts: 150mm
Max. Machining Depth: 70mm
Max. spindle traverse: 140mm
Power of spindle motor: 6.9 kW
Output (standard hex nut): 55ppm
