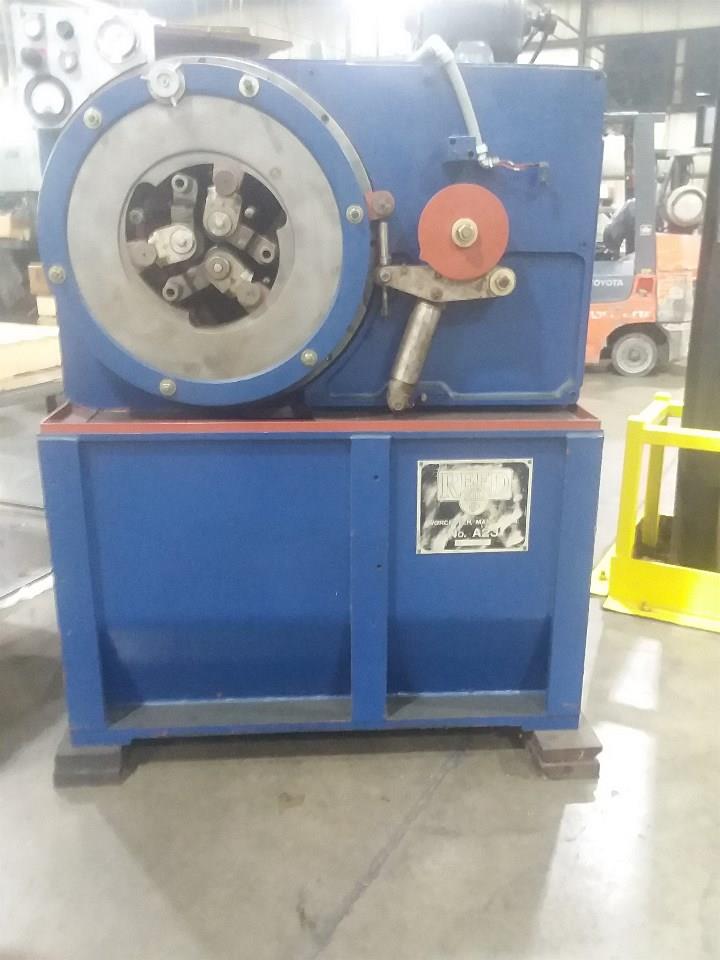

REED A23 THREE DIE CYLINDRICAL THREAD ROLLING MACHINE

Manufacturer
REED

Type
Threading Machines, Thread Rollers, Cylindrical Die

Model
A23

Stock #
8079

Condition
Used

Year
Not Specified

Request a Quote

Specifications

Equipped With

Min. - Max. Threading Diameter (In-feed): 1/4" - 3-3/4" Min. - Max. Thread Diameter (Thru-feed): 1/4" - 1" Maximum Thread Length (In-feed): 2-3/8" Maximum Thread Length (Thru-feed): 11" Spindle Diameters: up to 1-9/16" Die Speeds: 108 - 720 rpm Cam Speeds: 6 - 26 Production: Automatic up to 100 ppm Max. Diameter of Dies: 4" Max. Width of Dies: 2-3/8" Net Weight: 3100 lbs. Floor Space: 46"L x 36"W Location: N.AMERICAN PLANT
