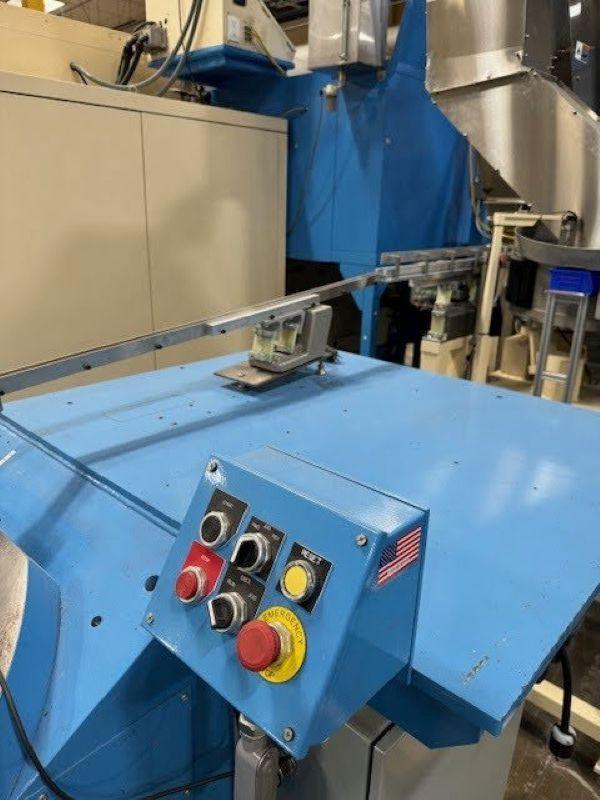

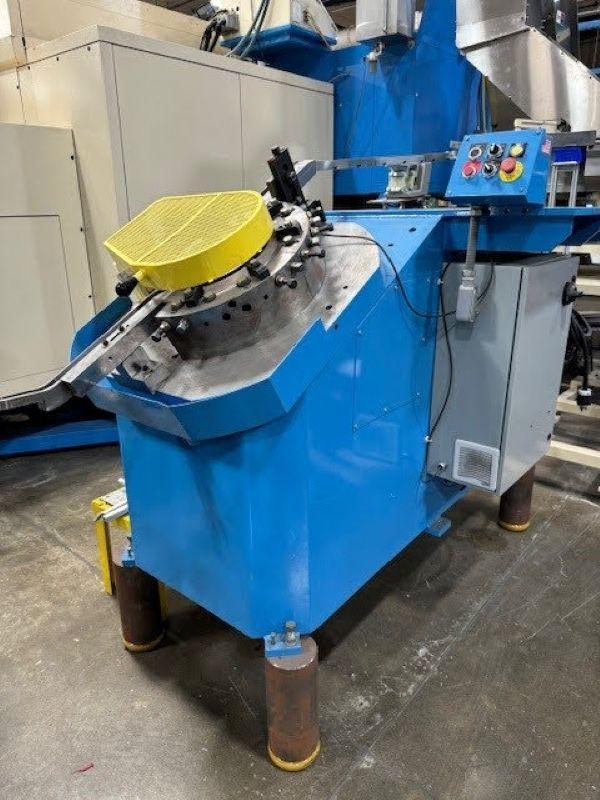

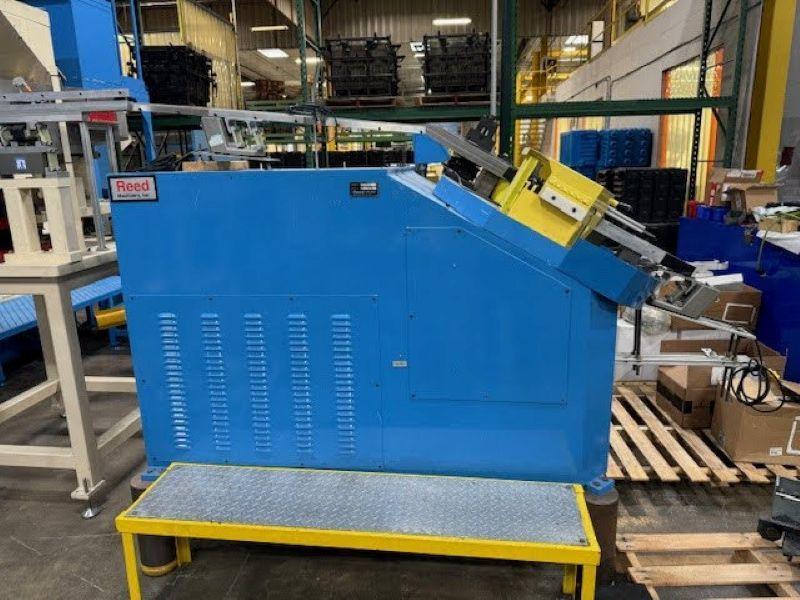

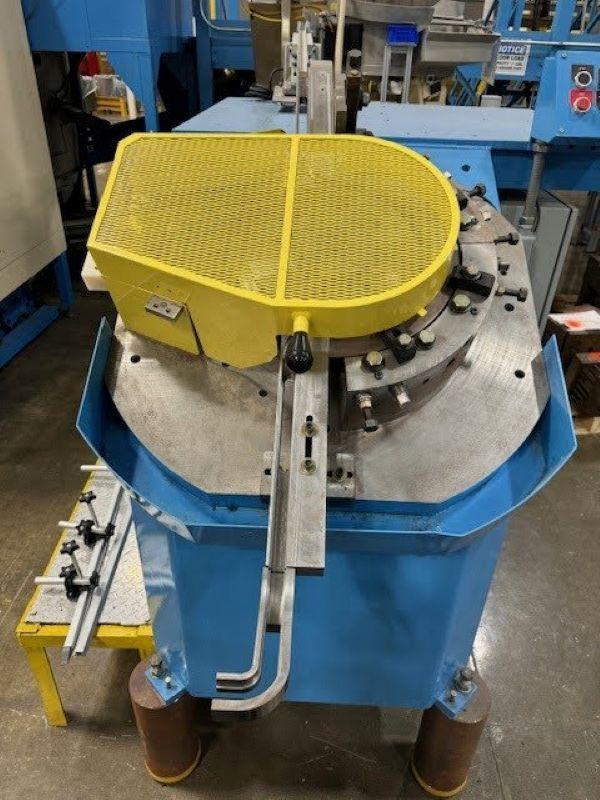

REED model 300B PLANETARY THREAD ROLLING MACHINE

Manufacturer
REED

Type
Threading Machines, Thread Rollers, Planetary Die

Model
300B

Stock #
9157

Condition
Used

Year
2020

Request a Quote

Specifications

Maximum Thread Diameter

.750 inches

Minimum Thread Diameter

313 inches

Maximum Thread Length

1.5 inches

Max Output Speed

up to 300 ppm

Weight (Approx)

4300 pounds

Dies, Max.Width

Die Speeds

35 rpm

Loading Height

68"

Main Motor

10 hp

Electrics

480V, 3PH, 60HZ

Floor Space approx

78" x 60"

Weight (Approx)

4,300 lbs

Equipped With

Notes: Machine in "Like New" condition, never used in production (Only about 10hrs usage for trials)
