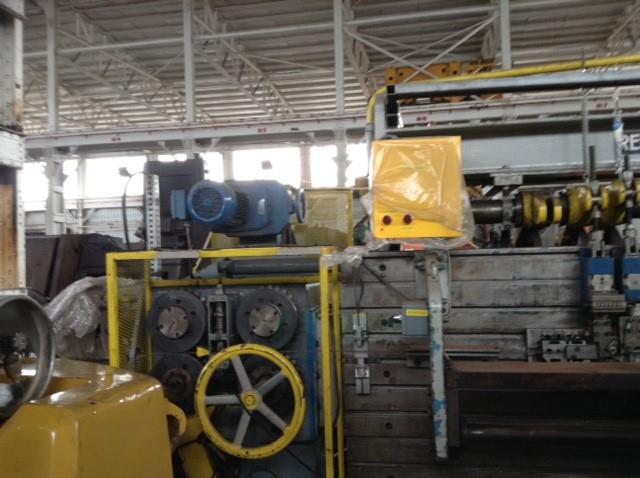

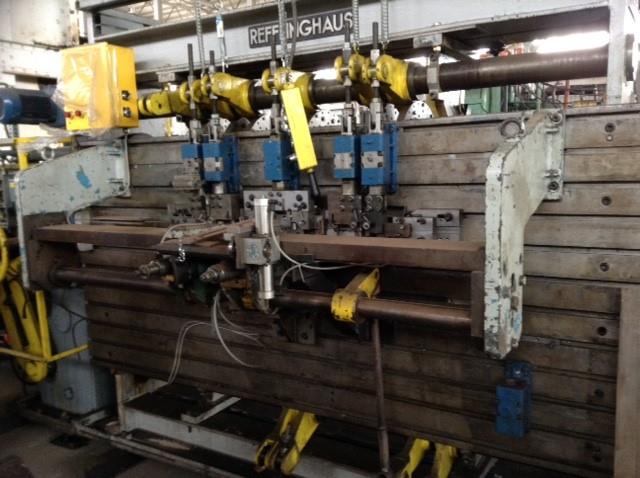

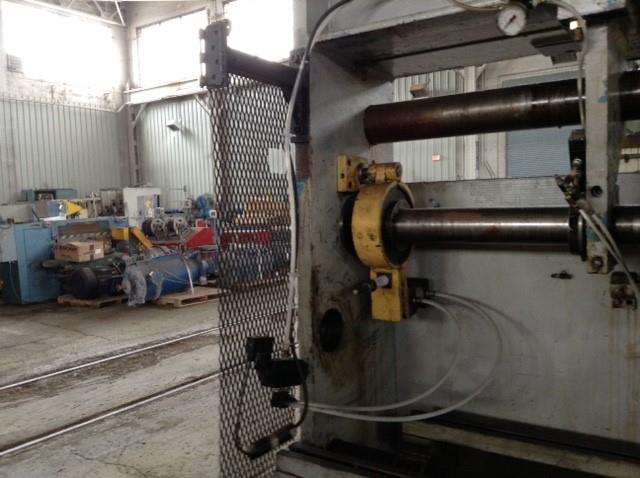

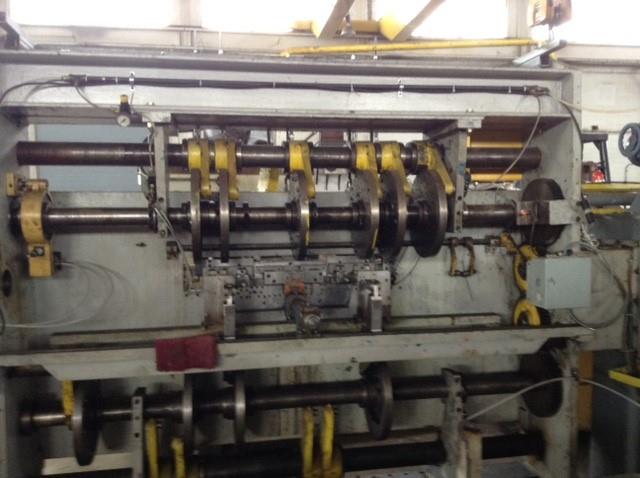

REFFLINGHAUS DBA6-1600 Wire & Strip Bending Machine

Manufacturer
REFFLINGHAUS

Type
Wire Machinery, Forming

Model
DBA6-1600

Stock #
7497

Condition
Used

Year
Not Specified

Request a Quote

Specifications

Equipped With

* Total top slides 3
* 2 plane straightener
* Rebuilt transmission,
* 24 VDC CLUTCH
* Pneumatic band brake
* 5 hp motor, 240/480 vac
* Enclosure on the front face w/ AB micro logic Plc programmed for monitoring wire buckling and part discharge.
* Interface for a reel, when machine starts, reel starts. When reels shut off switch is actuated, machine shuts of.
* Tooled to make chafing frames

Max Wire Diameter: 6 mm (@500N/mm2)
Strip dimensions: 30 x 3 mm
Max feed length: 1600 mm
Slide stroke-Bending force:
Vertical slide: 75mm-25kN
Combined slide: 60mm-20kN
Lateral slide: 80mm-20kN
Mandrel slide: 52mm-20kN
Max Throughput: 50/min
Drive power: 5,5kW
Weight, approx.: 9,000 kgs

Location: N.American Plant
