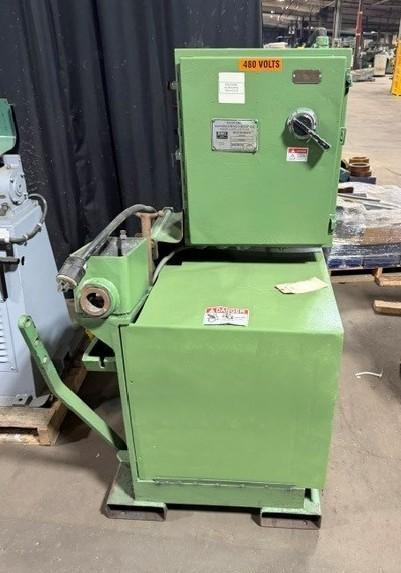

RMG 45-0580-85 IN-LINE WIRE DRAWER
RMG 45-0580-85 IN-LINE WIRE DRAWER
RMG 45-0580-85 IN-LINE WIRE DRAWER
RMG 45-0580-85 IN-LINE WIRE DRAWER
  • RMG 45-0580-85 IN-LINE WIRE DRAWER
  • RMG 45-0580-85 IN-LINE WIRE DRAWER
  • RMG 45-0580-85 IN-LINE WIRE DRAWER
  • RMG 45-0580-85 IN-LINE WIRE DRAWER

RMG 45-0580-85 IN-LINE WIRE DRAWER

Manufacturer
RMG

Type
Wire In-Line Drawers

Model
45-0580-85

Stock #
9251

Condition
Used

Year
1989

Request a Quote

Specifications

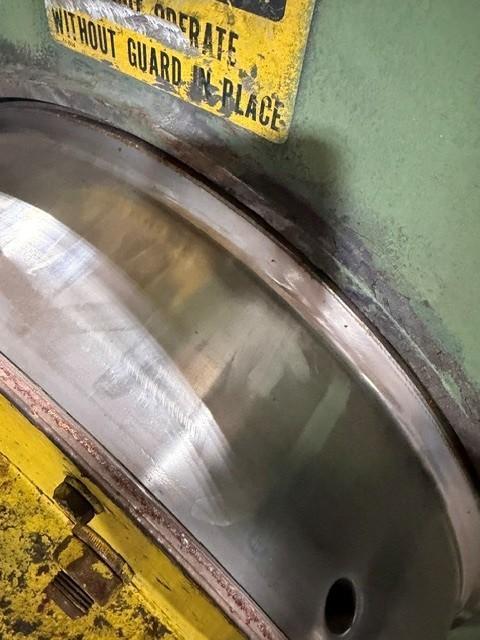

Capstan Diameter
20 inches
Maximum Wire Diameter
.250 inches
Max. Wire Diameter Rating
Max. Wire Diameter -Mild Steel-: 5/16"
Maximum Tractive Drawing Force
3000 pounds
Input Horsepower
5
Speed
0-80 fpm
Electrics
480volts

Equipped With

Features:  Vari speed drive

Contact us today to see how we can help with your machinery and equipment needs!
