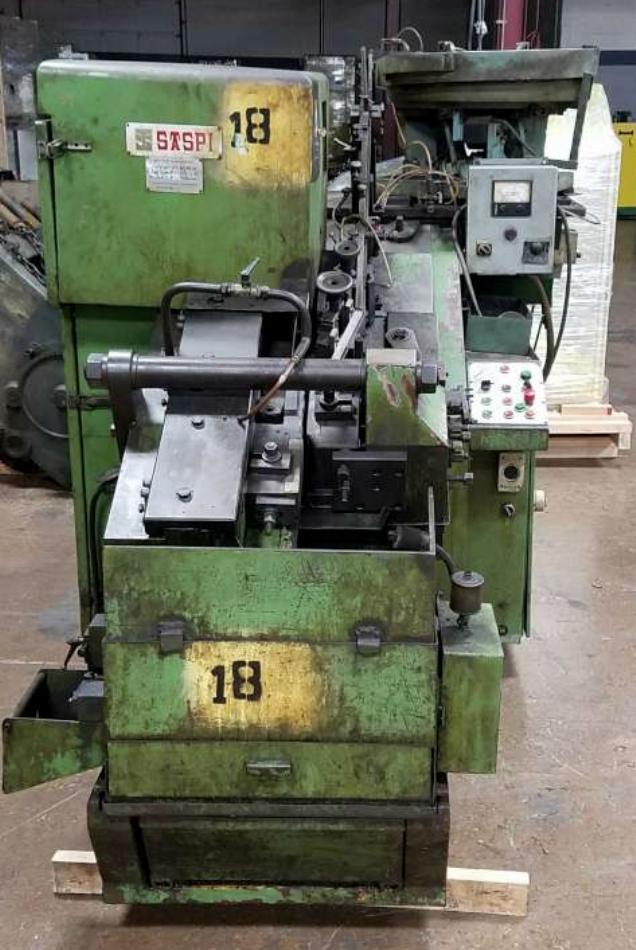

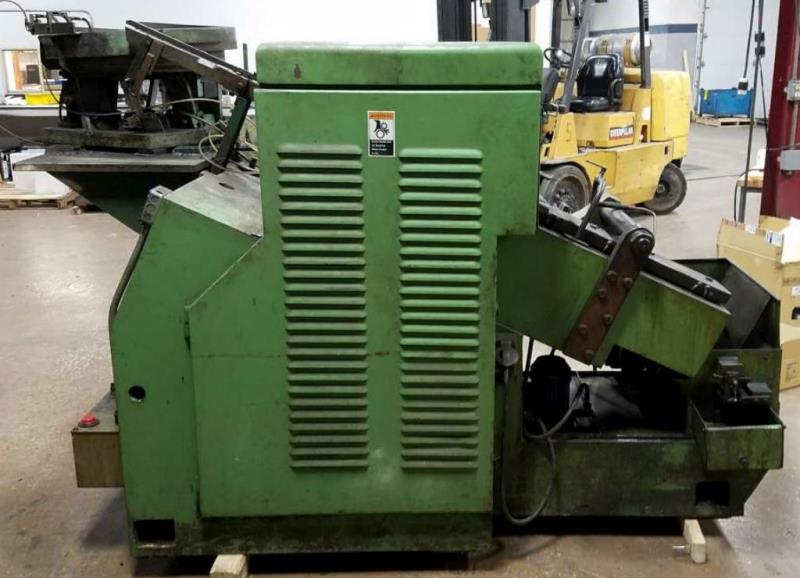

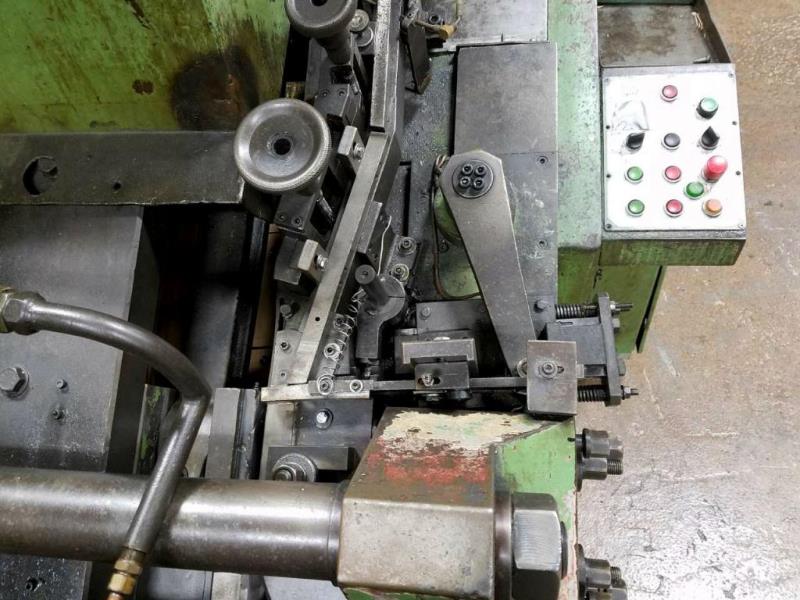

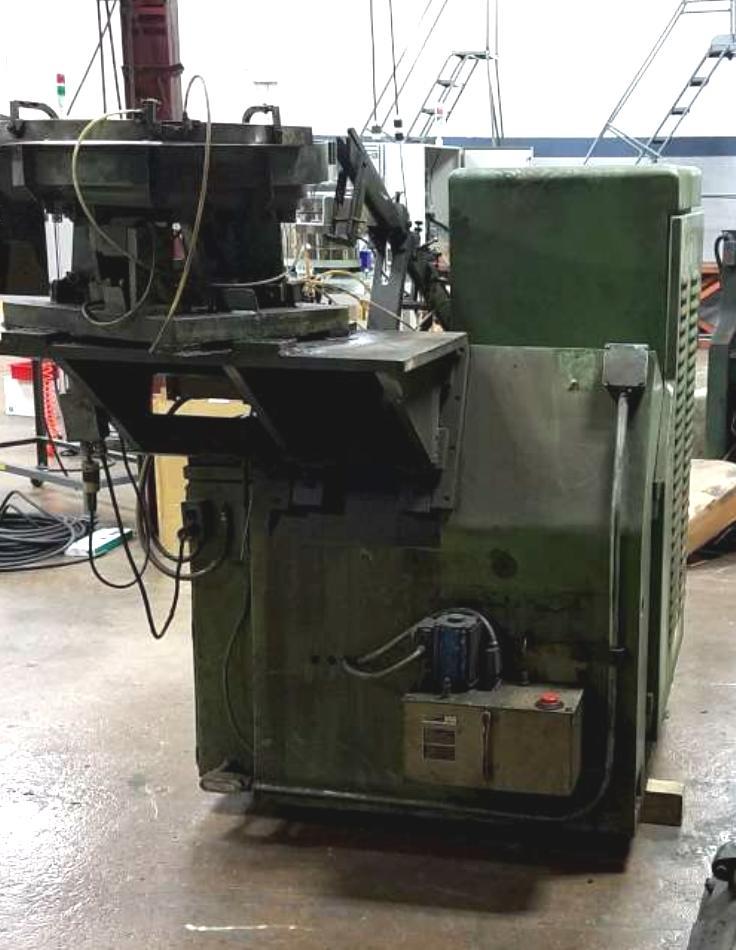

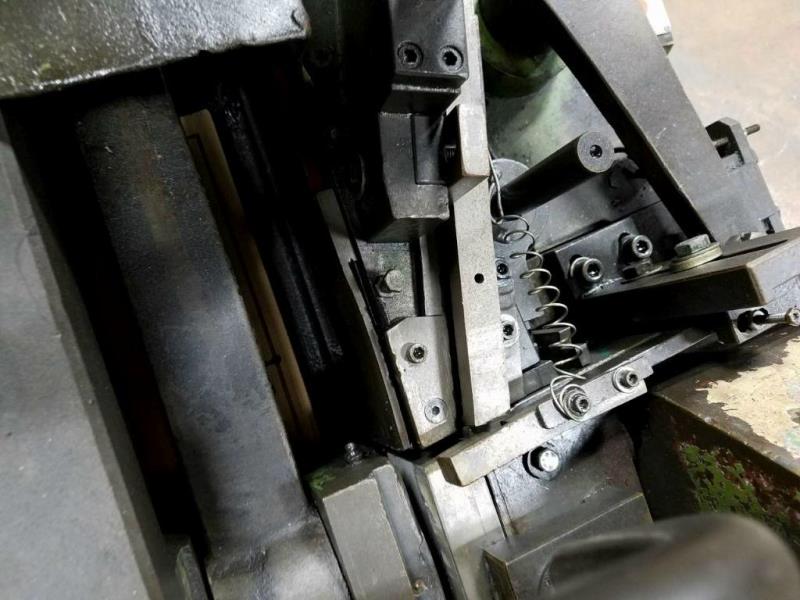

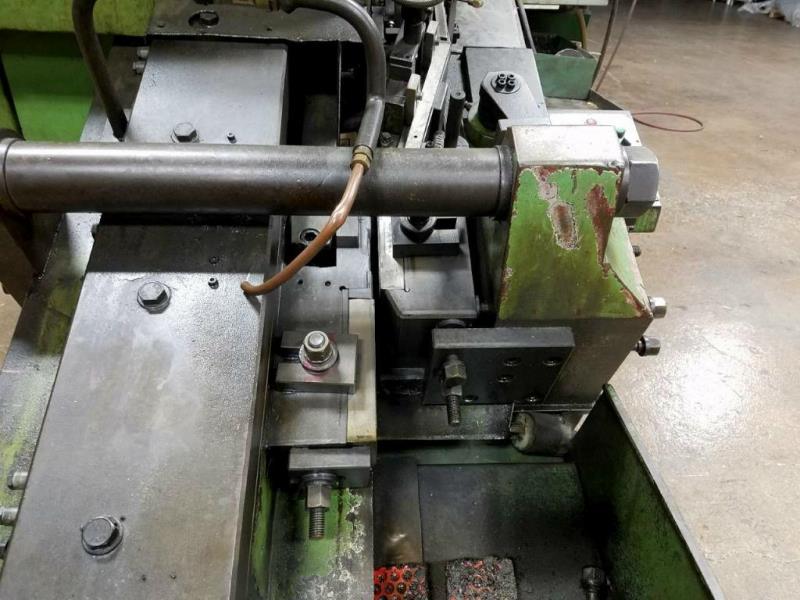

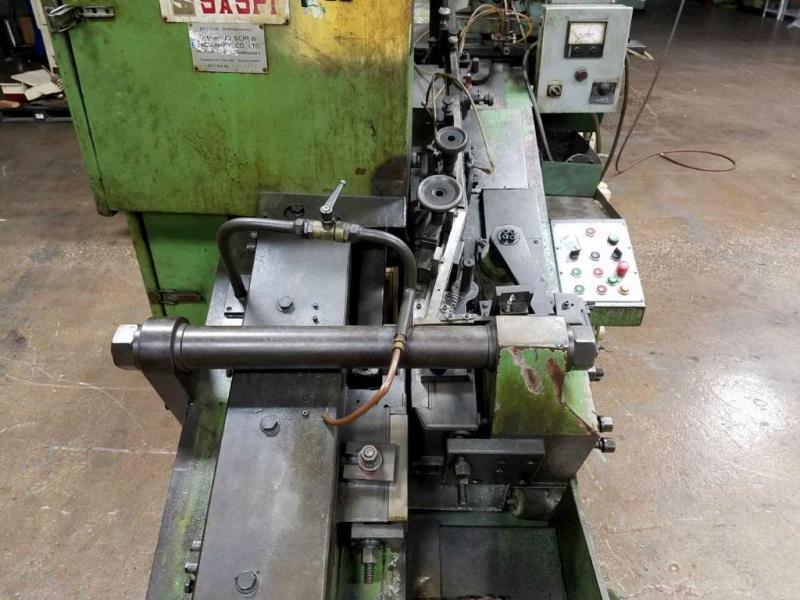

SASPI GV3-20 FLAT DIE THREAD ROLLER

Manufacturer
SASPI

Type
Threading Machines, Flat Die Thread Rollers, Automatic Feed

Model
GV3-20

Stock #
7664

Condition
Used

Year
Not Specified

Request a Quote

Specifications

Maximum Thread Diameter

12 millimeters

Minimum Thread Diameter

5 millimeters

Maximum Thread Length

75 millimeters

Maximum Shank Length

100 millimeters

Max. Height Under Header

80mm

Die Stroke

14" (approx)

Max Output Speed

85-110-170-220 ppm

Moveable Die Pocket

6-3/4"L x 3-1/8"H x1"DP

Stationary Die Pocket

6-1/8"L x 3-1/8"H x 1"DP

Main Motor

13kW DC & Controls

Weight (Approx)

3600 kilograms

Dimensions

Overall: 6'L x 4'W x 5'H

Equipped With

Features:

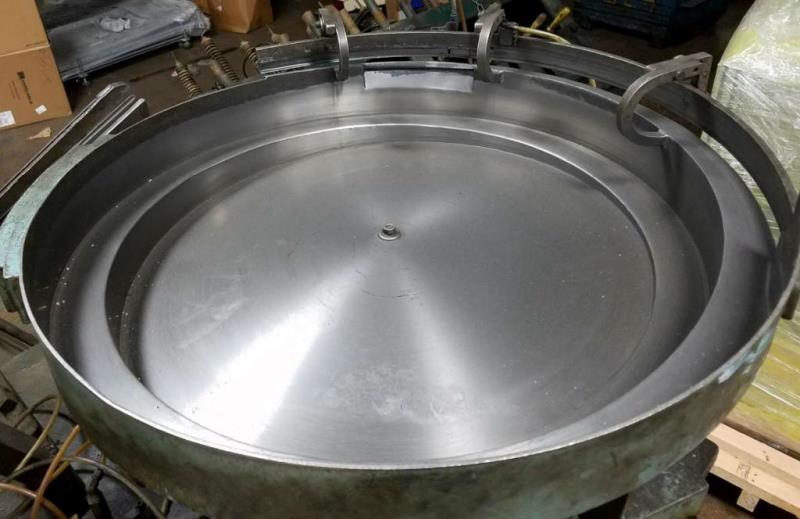

* 28" Vibratory Feeder Bowl
* Adjustable Pitman
* Coolant Tank
