WAFIOS AS41 TENSION SPRING COILING MACHINE

Manufacturer
WAFIOS

Type
Wire Spring Coilers

Model
AS41

Stock #
6174

Condition
Used

Year
Not Specified

Request a Quote

Specifications

Equipped With

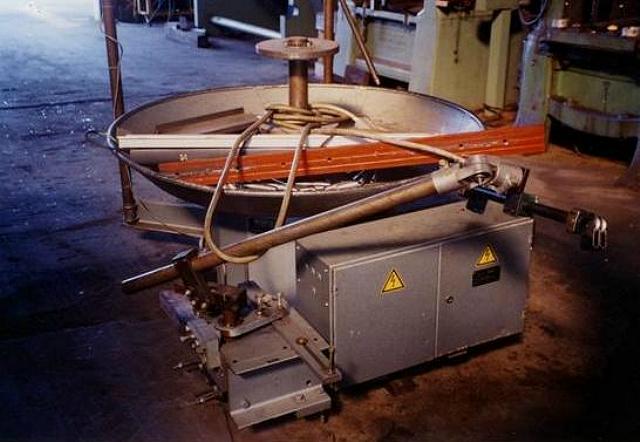

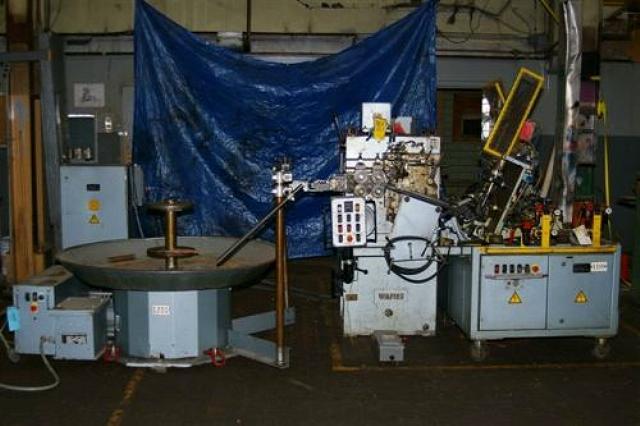

** SPRING COILER LINE CONSISTING OF: *WAFIOS WIRE PAYOFF AHL 41D-M2000 >DRIVE 4KW, 220/240/440/480V, 3PH, 60/50 CYC. >DANCER ARM FOR SPEED CONTROL >LOAD CAPACITY 1500KG (3300LB) >SUITABLE FOR COILS WITH APPROX. O.D. OF 850mm (33.5") > wEIGHT 750kg (1650LB) * CAGE * BOX OF SPRINGS * WAFIOS SPRING EYELET MACHINE MODEL FOA-41 >LENGTH OF SPRING BODY......... 1.5mm - 200mm WAFIOS SPRING COILER: MODEL AS41 WIRE DIAMETER: 1.0 - 3.6mm OUTSIDE DIAMETER OF SPRING: 10 - 30mm MAX. LENGTH OF FEED WIRE: 13000mm FEED SPEEDS: 90 & 75mm/MIN MAX. OUTPUT AS41 ALONE: 78 SPRING/MIN. MAX. OUTPUT COMBINED WITH EYELET MACHINE: 58 SPRING/MIN. Location: N.American Plant
