Wafios Umformtechnik – Nutap Model MAS-14F (14mm) High Precision High Speed Two Spindle Automatic Nut Tapper

Wafios Umformtechnik - Nutap Model MAS-14F (14mm) High Precision High Speed Two Spindle Automatic Nut Tapper

Manufacturer
WAFIOS

Type
Nut Tappers

Model
Model MAS-14F (14mm)

Stock #
Not Specified

Condition
New

Year
Not Specified

Request a Quote

Specifications

Maximum Thread Diameter

.551 inches

Maximum Thread Diameter

14 millimeters

Minimum Thread Diameter

.250 inches

Minimum Thread Diameter

6 millimeters

Biggest Flange or Max. Outside Dia.

30 millimeters

Max. A/F square

21 millimeters

Max. A/F hex

24 millimeters

Max. A/F octagonal

27 millimeters

Production Rate

240ppm (Standard hex nut)

Variable speed

450 - 4100 1/min

Power of spindle motor

5.5 kW

Equipped With

Features:

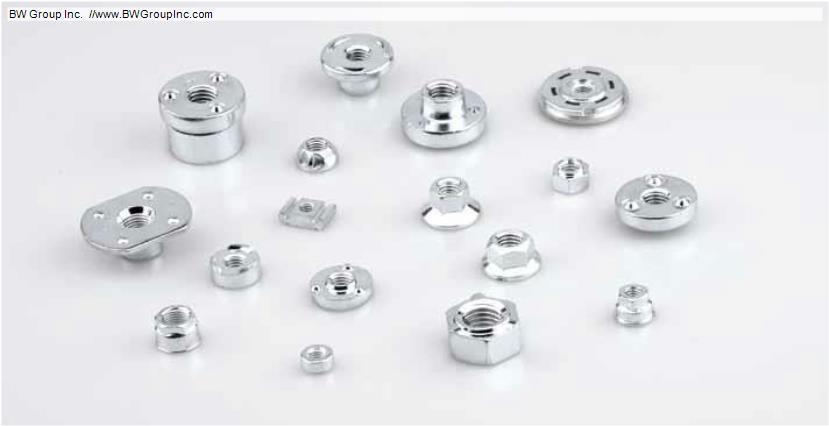

* Tapping Precision Thread of Hex, Square, Flange, Round, 12 Point, Wheel & Special Nuts
* Pitch Cam Feed Control
* PLC Control & Process Tap Monitoring
* Variable Speed DriveØ Very Low T.I.R. and Tight Thread Tolerances
* Quick Change Tooling
* Rotary Hopper or Vibratory Feeder
* AC Frequency Control Motor
* Simple Operation

Downloads

Nutap MAS-F.pdf
