Wafios Umformtechnik – Nutap Model MAS-33F (33mm) High Precision High Speed Two Spindle Automatic Nut Tapper

Wafios Umformtechnik - Nutap Model MAS-33F (33mm) High Precision High Speed Two Spindle Automatic Nut Tapper

Manufacturer
WAFIOS

Type
Nut Tappers

Model
Model MAS-33F (33mm)

Stock #
Not Specified

Condition
New

Year
Not Specified

Request a Quote

Specifications

Equipped With

Specifications:
Size Range: M12 - M33 (1/2" - 1")
Max. Outside dia: 50mm
Max. A/F square: 35mm
Max. A/F hex: 42mm
Max. A/F octagonal: 44mm
Power of spindle motor: 7.5 kW
Variable speed: 200 - 1800 1/min
Output, standard hex nut: 120ppm

Features:

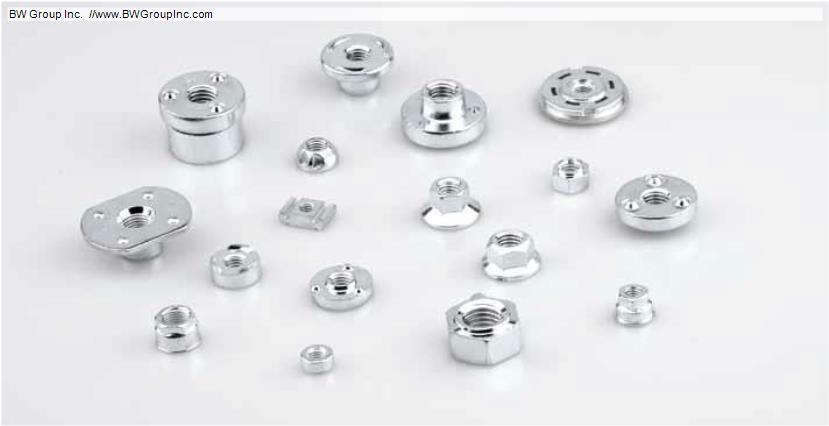

* Tapping Precision Thread of Hex, Square, Flange, Round, 12 Point, Wheel & Special Nuts
* Pitch Cam Feed Control
* PLC Control & Process Tap Monitoring
* Variable Speed DriveØ Very Low T.I.R. and Tight Thread Tolerances
* Quick Change Tooling
* Rotary Hopper or Vibratory Feeder
* AC Frequency Control Motor
* Simple Operation

Downloads

Nutap MAS-F.pdf
