Wafios Umformtechnik – Nutap UNT12 (1/2″) High Precision High Speed One Spindle Automatic Nut Tapper

Wafios Umformtechnik - Nutap UNT12 (1/2") High Precision High Speed One Spindle Automatic Nut Tapper

Manufacturer
WAFIOS

Type
Nut Tappers

Model
UNT12 (1/2")

Stock #
Not Specified

Condition
New

Year
Not Specified

Request a Quote

Specifications

Equipped With

Specifications:
Size Range: M3 - M12 (1/8" - 1/2")
Max. Outside Dia: 35mm
Max. Length of Parts: 150mm
Max. Machining Depth: 70mm
Max. spindle traverse: 140mm
Power of spindle motor: 6.9 kW
Output (standard hex nut): 60ppm

Features:

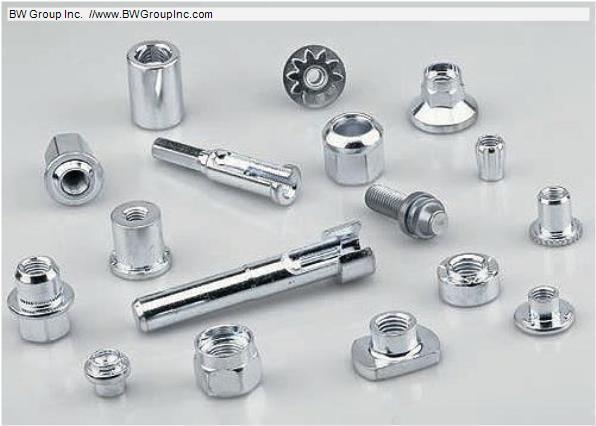

* Tapping, Boring & Counter-boring of Special Nuts
* Specially Suited to Thread Blind Borings & Extremely Long Parts
* PLC Control & Process Tap Monitoring
* Full Electronically Control of Indexing Plate, Feeding and Tapping
* Cutting Feed via Clearance-Free Re-circulating Ball Spindle
* Adjustable Magazines
* Spindle & Roller Bearings with Lifetime Lubrication
* Automatic Transport of Chips

Downloads

Nutap UNT.pdf
