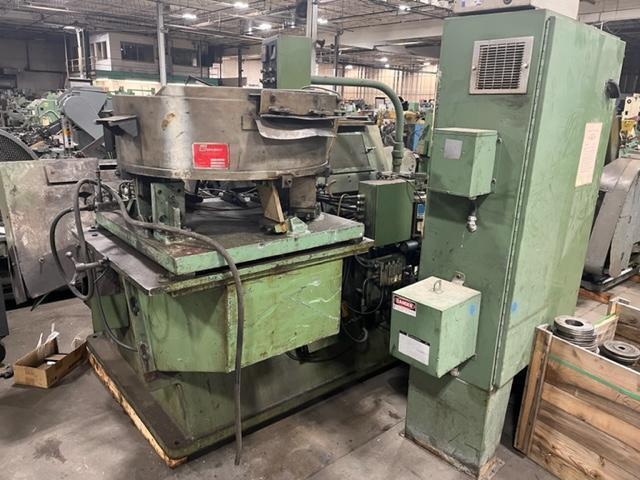

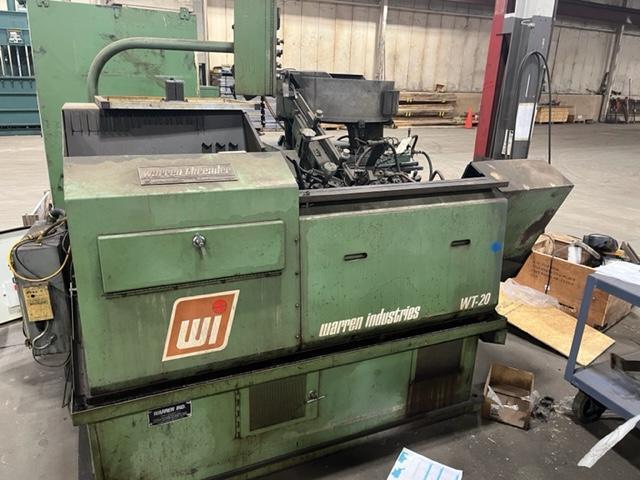

Warren WT-20 HIGH SPEED FLAT THREAD ROLLING MACHINE

Manufacturer
Warren

Type
Threading Machines, Flat Die Thread Rollers, Automatic Feed

Model
WT-20

Stock #
8400

Condition
Used

Year
1991

Request a Quote

Specifications

Maximum Thread Diameter

.375 inches

Minimum Thread Diameter

Maximum Thread Length

6 inches

Maximum Shank Length

6 inches

Max Output Speed

350 ppm

Main Motor

30 hp

Electrics

220-440Volts/3ph/60hz

Weight (Approx)

13000 pounds

Floor Space approx

90"W x 104"L

Equipped With

Features:

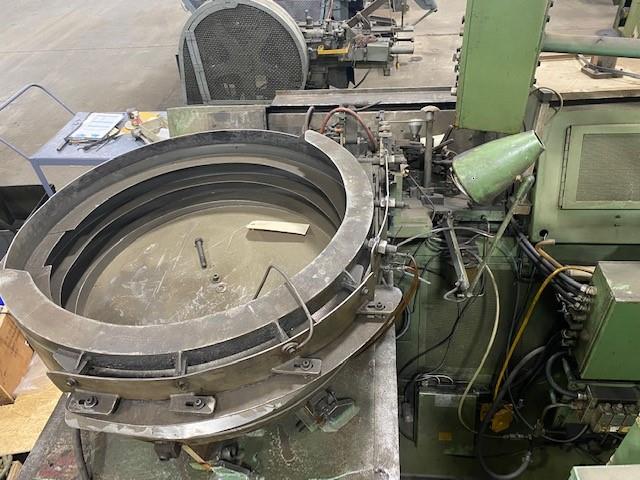

24" Vib feeder bowl
Adjustable pitman
#20 or #10 ROLL THREAD DIE CAPABILITY (built on the WT-30 frame)
A/C VARIABLE SPEED DRIVE
