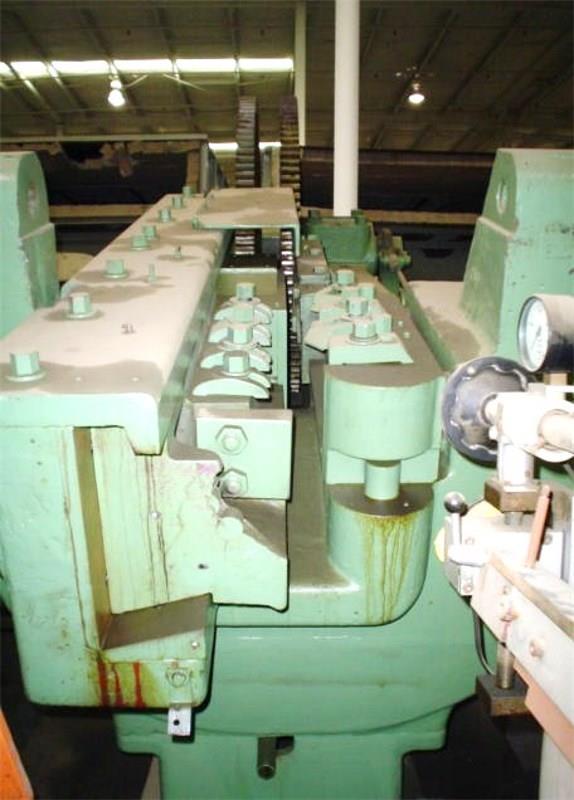

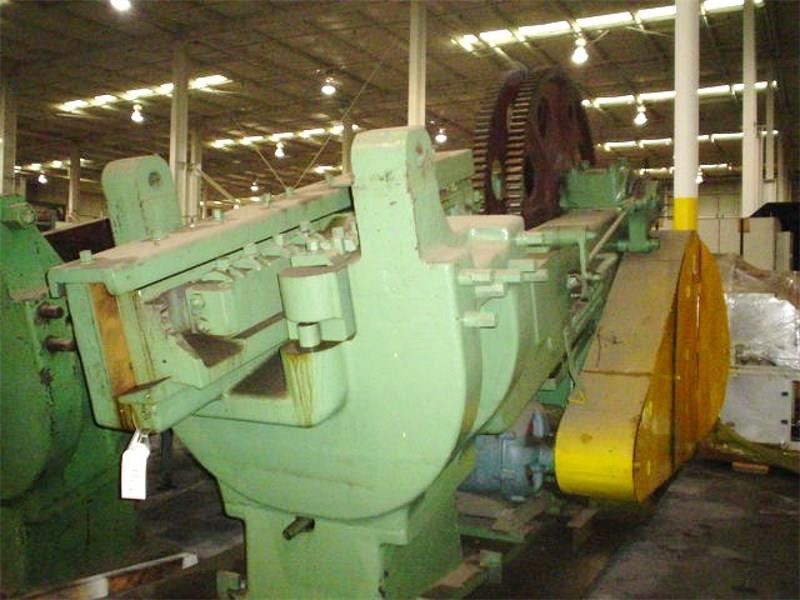

WATERBURY #100 HAND FEED FLAT DIE THREAD ROLLER

Manufacturer
WATERBURY

Type
Threading Machines, Flat Die Thread Rollers, Hand Feed

Model
#100

Stock #
8098

Condition
Used

Year
Not Specified

Request a Quote

Specifications

Equipped With

* Rebuilt

Max. Thread Dia. x Length (Hot rolled): 2"x4-1/2"
Max. Thread Dia. x Length (Cold rolled): 1-1/2"x4-1/2"
OR
Max. Thread Dia. x Length (Cold rolled): 1"x8"
Max Depth of Die Face: 8-1/8"
Standard Depth of die Face: 4-1/2"
Length of moving die: 27"
Length of stationary die: 26"
Production speed: 30-35 ppm
Motor: 40hp
Dimensions, approx.: 230"L x 68"W x 118"H
Weight, approx.: 55,475 lbs

Location: N. American Plant
