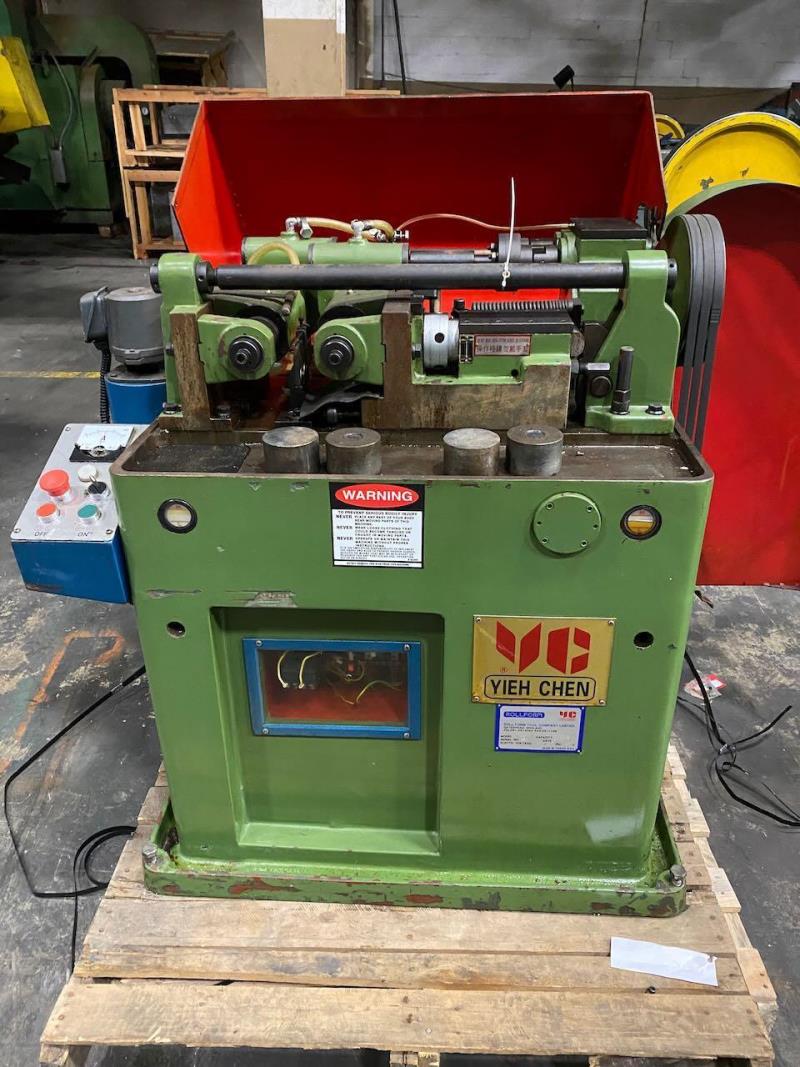

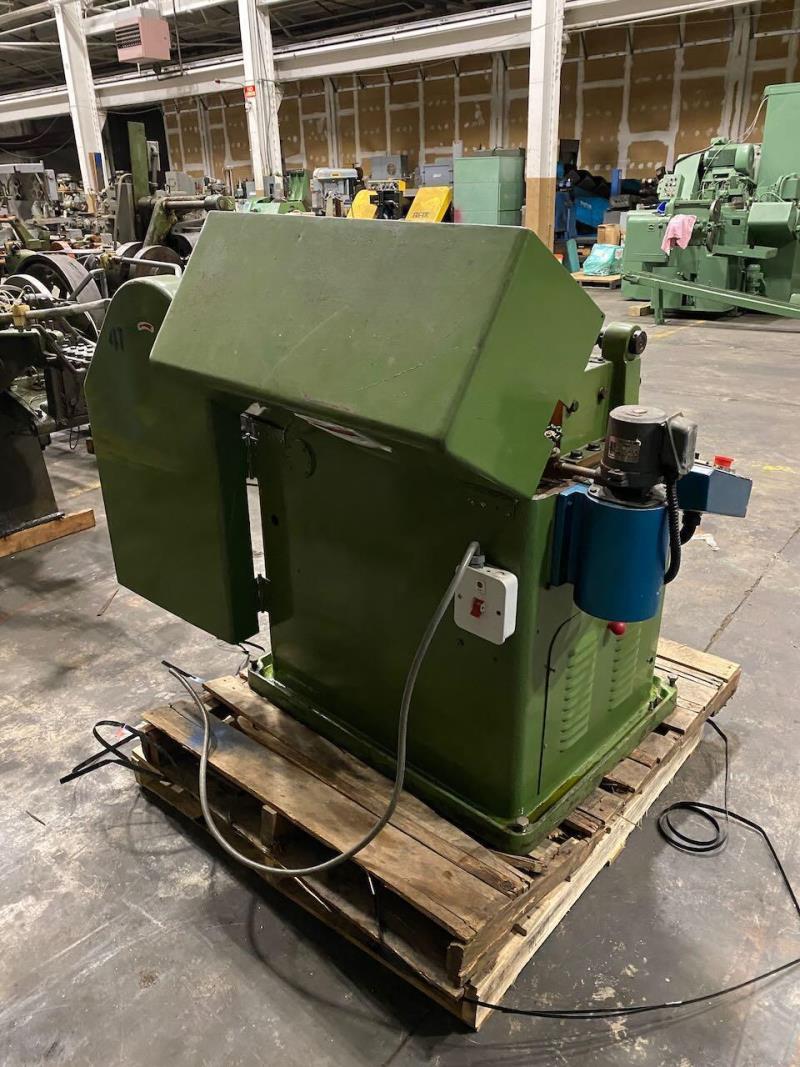

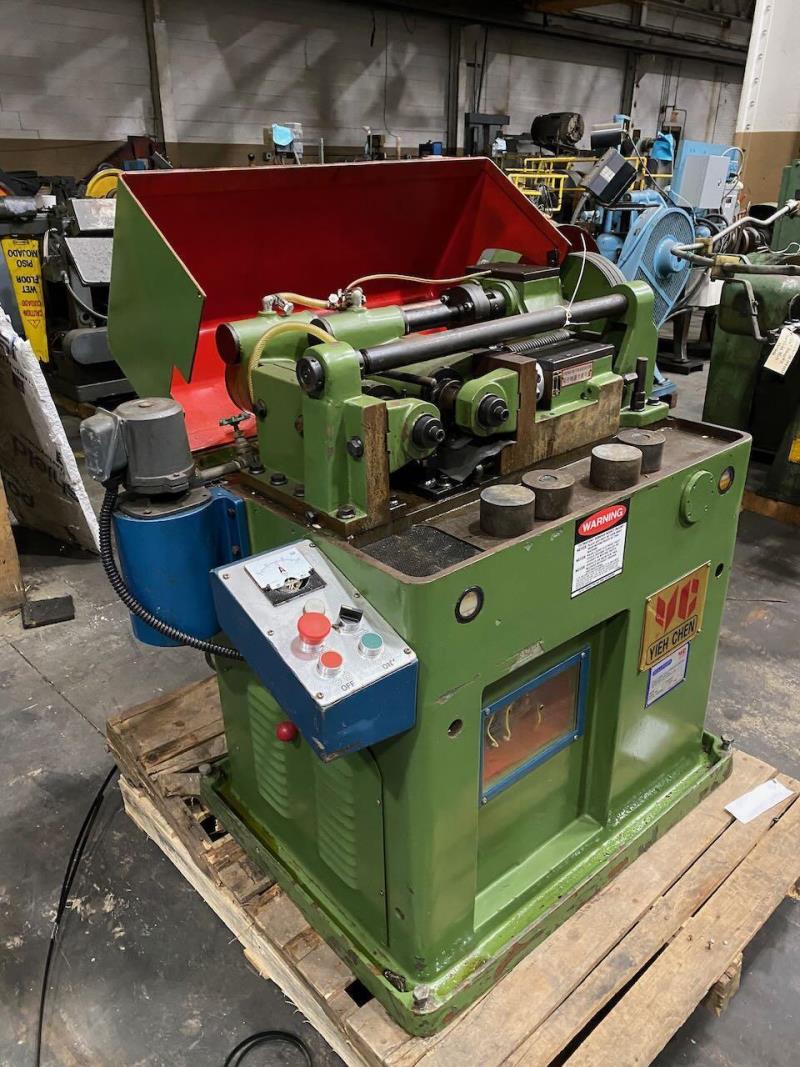

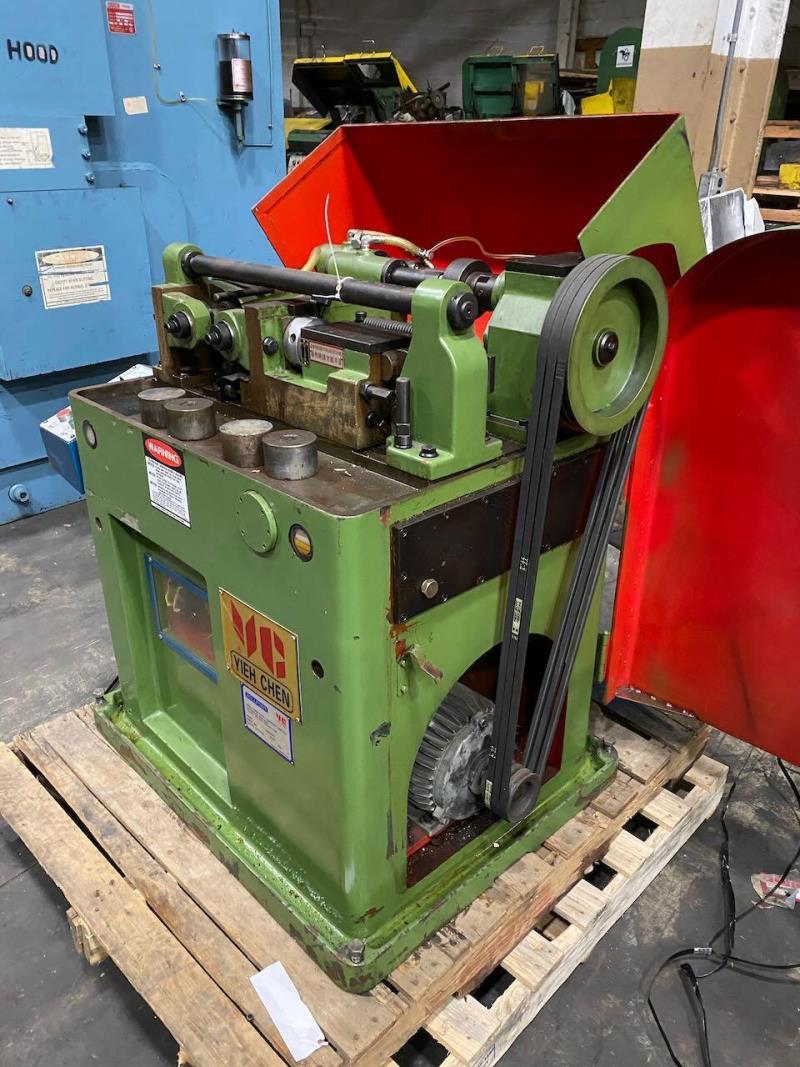

YIEH CHEN YC-20D TWO DIE HYDRAULIC CYLINDRICAL THREAD ROLLING MACHINE

Manufacturer
YIEH CHEN

Type
Threading Machines, Thread Rollers, Cylindrical Die

Model
YC-20D

Stock #
8527

Condition
Used

Year
1996

Request a Quote

Specifications

Equipped With

*Coolant system Outside diameter: 3/16"-7/8" Thread pitch: 40-9 TPI Max. length: 1.7/8" Rolling speed: 40 RPM Max. outside diameter: 4.72" Roll Dies-Inside diameter: 1.574" Roll Dies- Max. width: 1.968" Max. center distance of die-spindle: 140mm Min. center distance of die-spindle: 100mm Output (PCS/min): 9-30 Spindle motor: 3 HP Coolant pump motor: 1/8 HP Floor space: 1090 x 740mm Machine weight (approx): 1130 lbs Shipping measurement: 1240 x 850 x 1220mm Location: N.AMERICA

Contact us today to see how we can help with your machinery and equipment needs!
