Amba Long Parts Thread Rolling Machine

Manufacturer
AMBA

Type
Thread Rollers

Model
Long Parts Thread Rolling Machine

Stock #
Not Specified

Condition
New

Year
Not Specified

Request a Quote

Specifications

Equipped With

Specifications:
* Thread rolling unit with threading dies for:
WF # 40 or WF # 50 / TR 6 or TR 7
* Maximum threading length: 800 mm | 31.5 ”
* Maximum diameter: 12 mm | 0.5 ”
* Up to 40 full threads per minute
* Solid O-frame designed for
* axial loads of up to 100 t acting during thread rolling
* Adjusting both tools to each other in creep speed with full use of force.
* Central lubrication system
* Occupational safety according to CE standard
* Options: Discharge system or automatic stacking unit

Features:
THREAD ROLLING MACHINE TYPE BBW

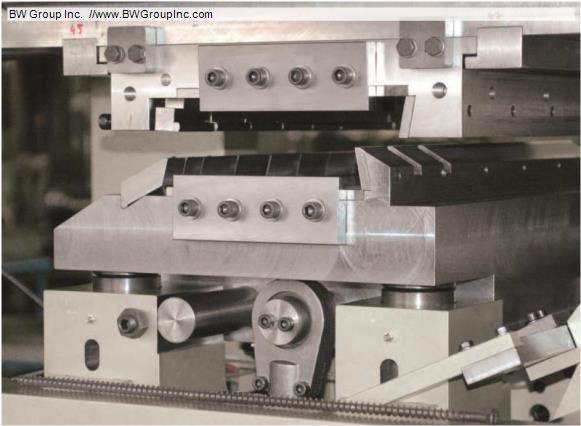

■ The upper die – which is the longer one of the two dies –
is mounted on a movable slide.
■ The lower, fi xed die is clamped into the height-adjustable
die pocket by a hydraulic clamping system.
■ Space-saving design by placing the entire drive on top of
the machine.
■ Central control panel (HMI) and separate control box
for setting up the process
■ Automatic feeding and discharging of threaded bars by
means of the AMBA-designed spindle system
