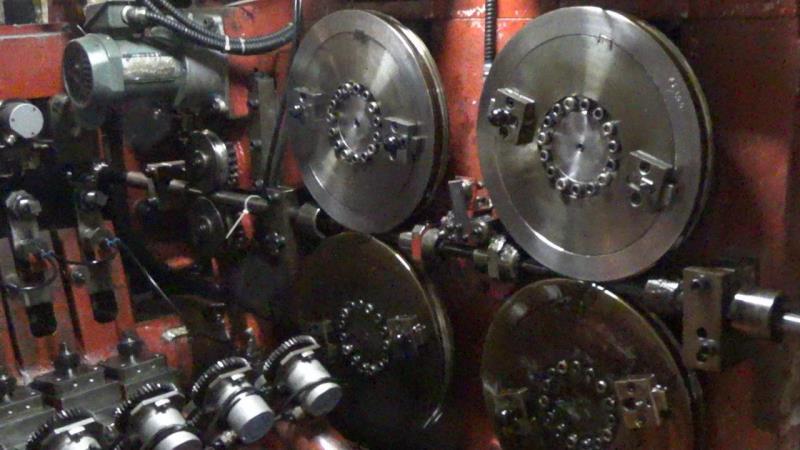

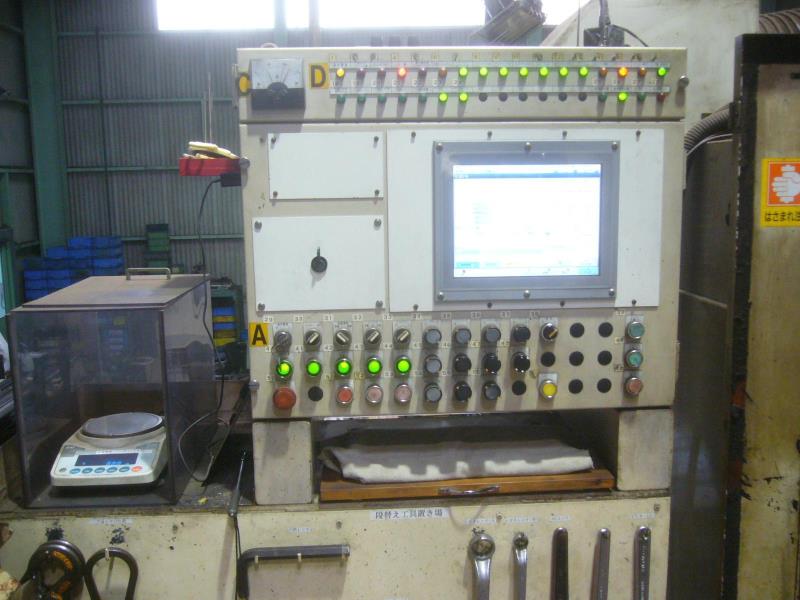

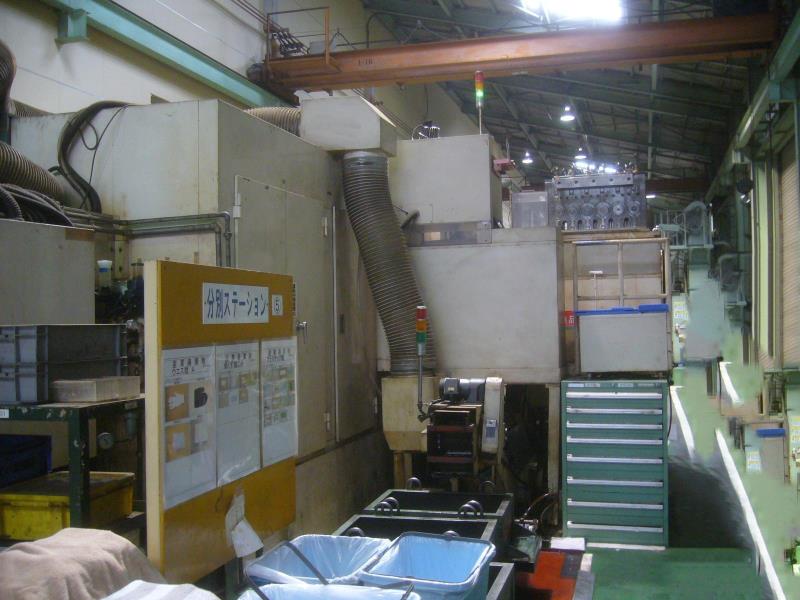

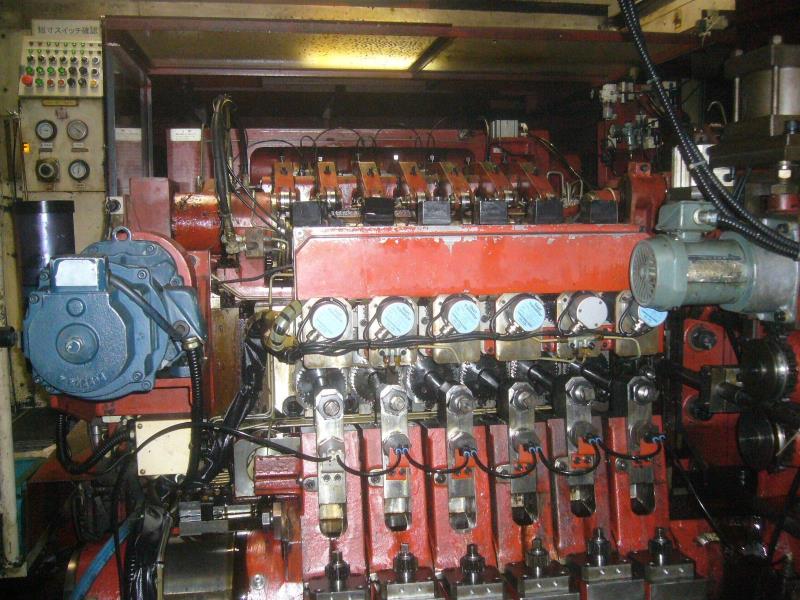

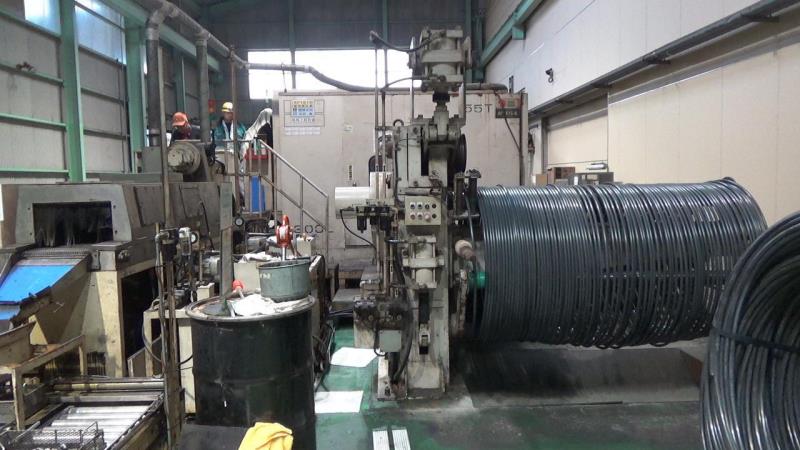

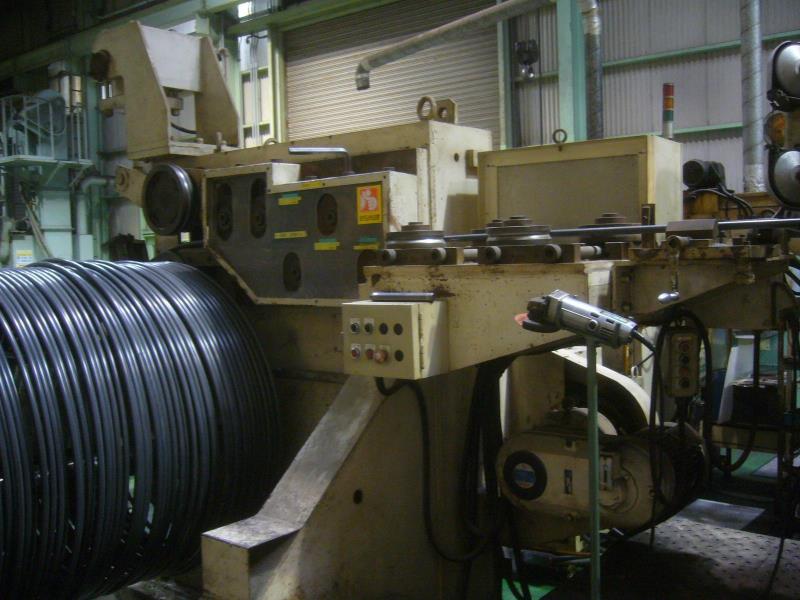

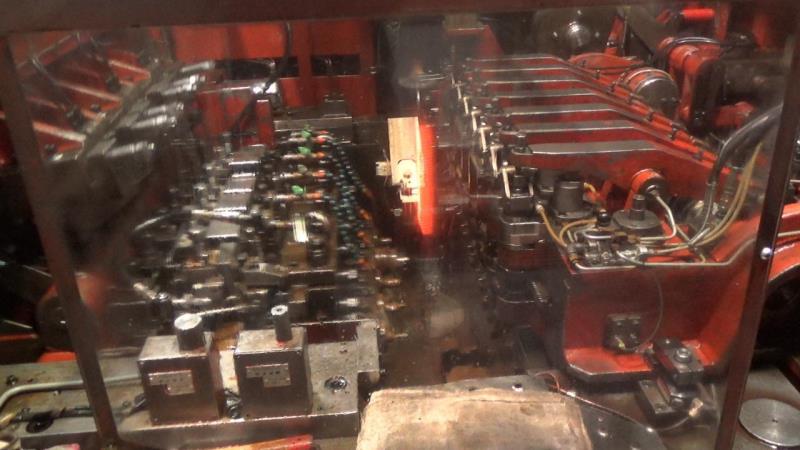

ASAHI SUNAC AF-1815-6 6 DIE PARTS FORMER

Manufacturer
ASAHI SUNAC

Type
Parts Formers, 6 Die

Model
AF-1815-6

Stock #
8874

Condition
Used

Year
1994

Request a Quote

Specifications

Equipped With

Cutoff Diameter: 22mm (60kg/cm2)
Cutoff Length: 155-15mm
KO Stroke: 150-15mm all station
PKO Stroke: 40mm all station
Die Case Diameter x L: 110 x 200mm all station
Punch OD Diameter x L: 80 x 145mm all station
Quill OD x L: 75 x 95mm
Pusher Die OD: 30mm
Cutter Holder Thickness: 33mm
Dimensions of FDC: 45mm
Reversible Blank Length: 20,40mm ( 2 ways)
Die Center Distance: 120mm
Max. Forging Load: 220 tons
Crank Stroke: 270mm
Production Speed: 120 spm
Main Motor: 55/40/28kW (6/8/12p)
Weight: 55 tons
O.A. Dimensions: 7.4 x 3.4 x 2.8m (lxwxh)

Location: Asia
