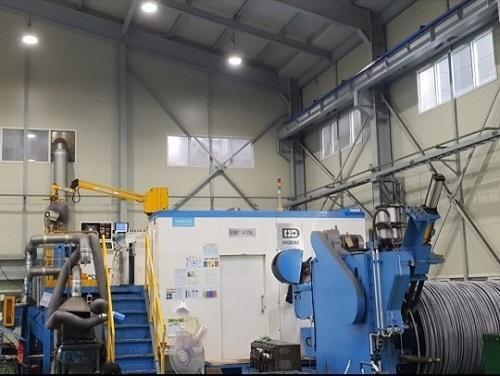

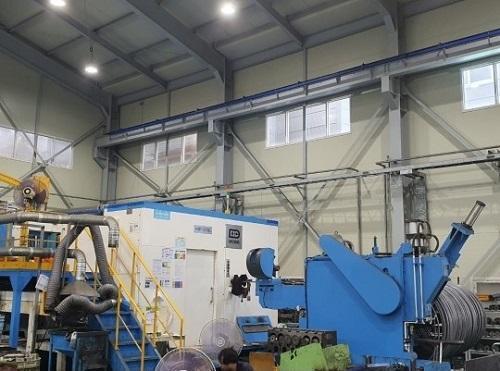

HYODONG HBP-633L 6 DIE LONG STROKE BOLT PARTS FORMER

Manufacturer
HYODONG

Type
Parts Formers, 6 Die

Model
HBP-633L

Stock #
8804

Condition
Used

Year
2013

Request a Quote

Specifications

Equipped With

* Uncoiler

FORGING STATION: 6 STATION
OPEN UP DIA: 46MM
UNDERHEAD LENGTH: 50-250MM
FORGING LOAD: 500,000 KGF
CUT-OFF DIA: 33(29)MM
CUT-OFF LENGTH: 50-300MM
CUT-OFF KNIFE SIZE: 105 x 34MM
CUT-OFF QUILL SIZE: 100 x 150MM
PUNCH DIA.: 110 x 380MM
DIE DIA: 150 x 380MM
CENTER DISTANCE BETWEEN DIES: 168MM
P.K.O STROKE: 62MM
K.O STROKE: 280MM
MAX RPM: 80PCS/MIN
MAIN MOTOR: 132KW
MACHINE DIMENSIONS: 8.7L x 4.5W x 3.0H
MACHINE WEIGHT: 126,000 KG
ELECTRIC CAPACITY: 160 KVA
AIR CAPACITY: 6.0 L/J
LUBRICATION & COOLANT OIL CAPACITY: 1200L
LUBRICATION PUMP CAPACITY: 1.5KW
COOLANT PUMP CAPACITY: 1.5KW

Location: Asia
