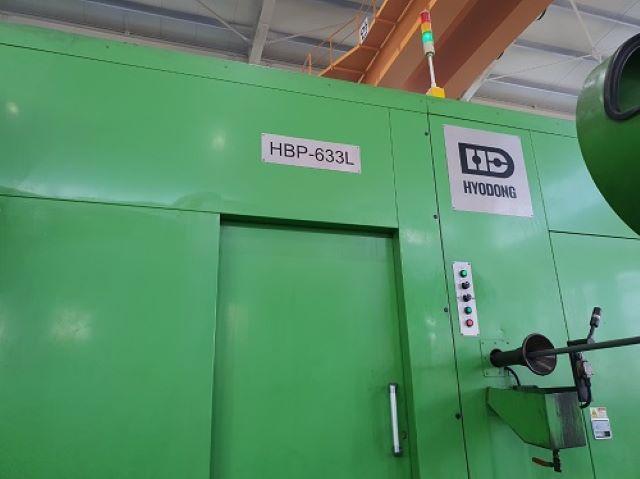

HYODONG MODEL HBP-633L SIX DIE LONG STROKE BOLT PARTS FORMER

Manufacturer
HYODONG

Type
Parts Formers, 6 Die

Model
HBP-633L

Stock #
8978

Condition
Used

Year
2013

Request a Quote

Specifications

Forging Stations

6 STATION

Forging Load

500,000 KGF

Maximum Cutoff Diameter

33 millimeters

Open Up Diameter

46 millimeters

Maximum Kickout Length

250 millimeters

Minimum Kickout Length

50 millimeters

Maximum Cutoff Length

300 millimeters

Minimum Cutoff Length

50 millimeters

P.K.O Stroke

62MM

K.O Stroke

K.O STROKE: 280MM

Max Output Speed

80PCS/MIN

Main Motor

132KW

Cut-Off Knife Size

105 x 34MM

Cut-Off Quill Size

100 x 150MM

Pinch Dia.

110 x 380MM

Die Dia.

150 x 380MM

Center Distance Between Dies

168MM

Electric Capacity

160 KVA

Air Capacity

6.0 L/J

Lubrication & Coolant Oil Capacity

1200L

Lubrication Pump Capacity

1.5KW

Coolant Pump Capacity

1.5KW

Weight (Approx)

126000 kilograms

Dimensions

8.7L x 4.5W x 3.0H metres

Equipped With

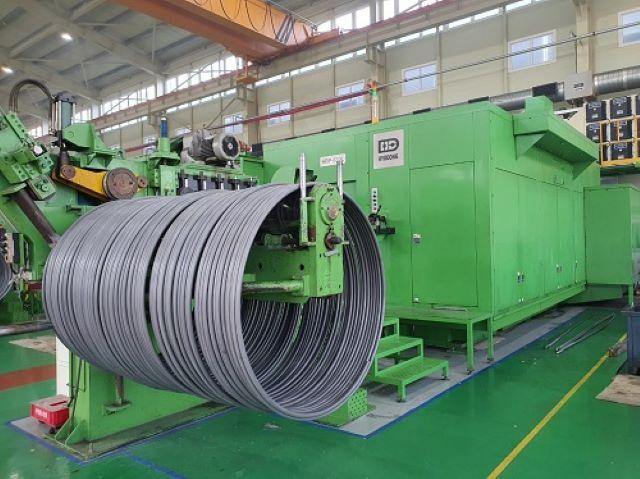

Comes with: Uncoiler
