Equipped With

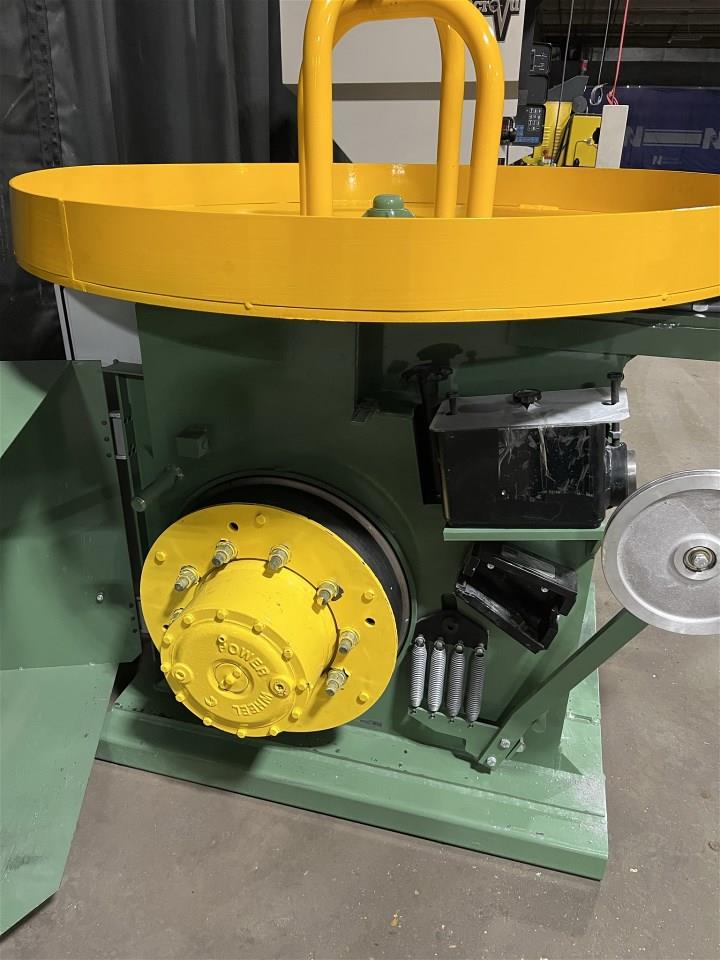

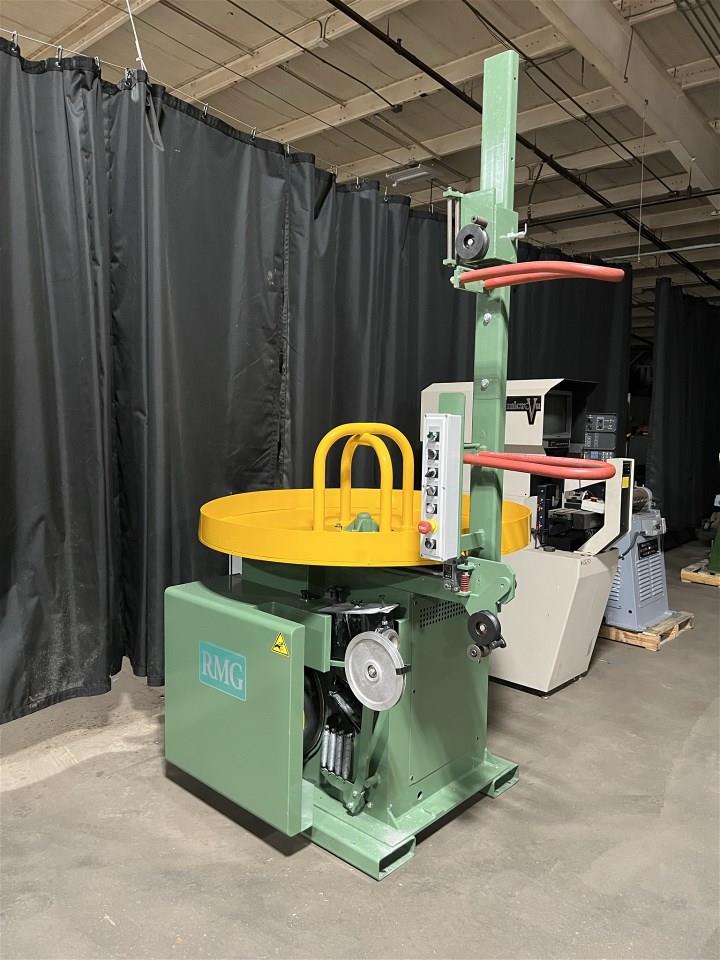

Model 500-1083-CE AUTODRAW II SPACESA VER in-line wire drawing machine capable of drawing 8.5mm with a maximum tensile of 80,000 PSI down to a finished diameter of 8.0mm This machine is guaranteed to provide 3000lbs of draw force at 74 Feet Per Minute wire speed Features and Specifications Include: "500 mm (20'') diameter, hardened D2 tool steel capstan , ,.Standard hand SPACESAVER frame with inclined draw box(right to left wire now) ,.''Patented"Integral turntable with 1397mm (55") diameter top plate, snag ring and air brakes "Guide post assembly with snag switch * Full capstan cover with electrical interlock - SAFE, full access to capstan, during set up ,.."CE 2006/42/EC" plate "Full machine enclosure for reduced maintenance costs and Safety "Manual Wire Relaxer with single, ''Patented" One Way Clutch, V-grooved 100mm (4'') rollers -- D 1348.0355S (Provides more tractive force by preventing slipping of the last wrap of wire) "''Energy Efficient" Variable Frequency Drive with 75 kW (10 hp) Premium Efficiency Motor "Infinitely variable speed from 5.5 to 74 FPM " Wiring for 460 volt, 3 phase, 60 hz electrics with 24v DC control voltage , "Two hand jog (slowfast) * /EC electrical controls , * Disconnect with short circuit protection * Emergency stop * STARTGARD (Production machine interlock) "E-SLIPGARD (Electronic Forward Compensator Over Travel Detection) * Pullpointer box ? * Vista green enamel finish : * TWO-YEAR GUARANTEE (not including tooling) * Digital copy of operation & service instructions ,.Serial# 11825-1711 Application Requirements: * Spring Loaded compensator with 9" aluminum wheel and retaining stud *Integral turntable with 1397mm (55'J diameter top plate "Remote grease points for ease of preventative maintenance Capstan Diameter: 20" (500mm) Diameter (Low Carbon Steel): .312 (8.0mm) Diameter (High Carbon Steel): .250 (6.4mm) Normal Top Drawing Speed: 74 Feet per Minute Maximum Tractive Force: 3,000 lbs. (1360 kgs.) Motor: 10 HP Electrics: 460V/3/60 Location: N.AMERICA
