RMG Wire Payoffs

RMG Wire Payoffs/Uncoilers

Manufacturer
RMG

Type
Wire Payoffs

Model
Not Specified

Stock #
Not Specified

Condition
New

Year
Not Specified

Request a Quote

Specifications

Equipped With

Specifications:

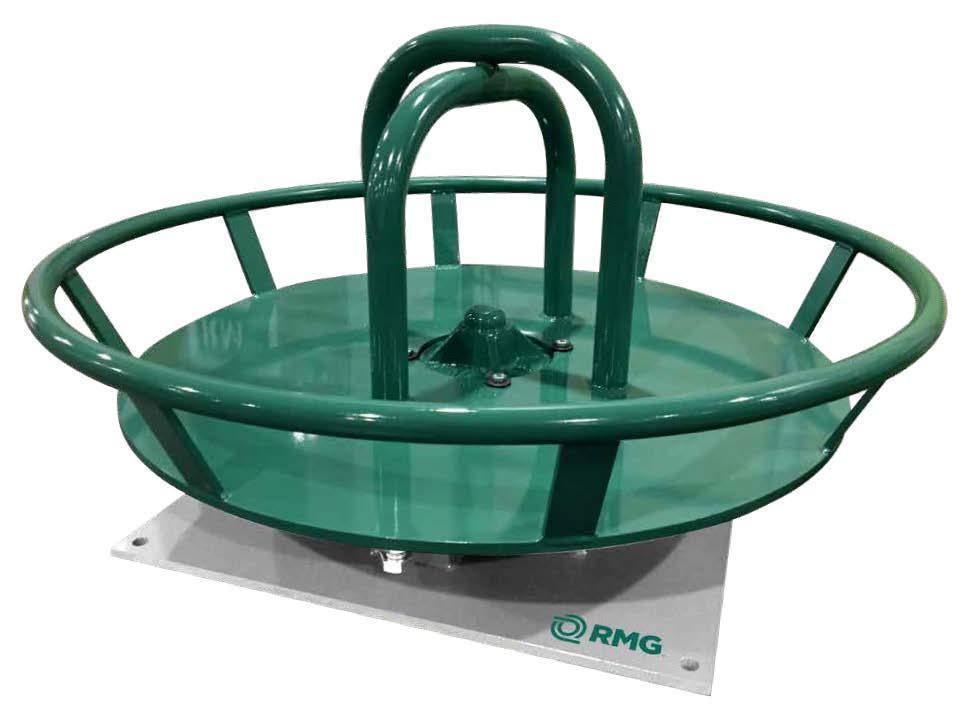

RMG Non-powered turntable: Std & Heavy duty
Wire coils up to 7,000 lbs, 70" dia. tables.

RMG VF Powered turntable: Std & Heavy duty
Wire coils up to 4,000 lbs, 60" dia. tables.

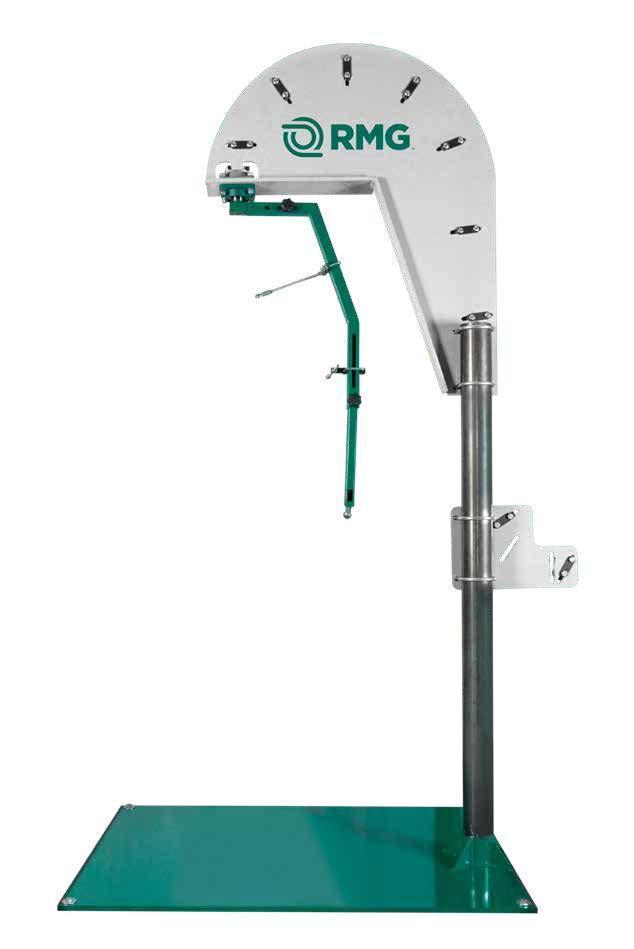

RMG Vertical Payoff: Wire Dia: 0.050"(1.25mm) to 0.188"(4.75mm) > High performance wire payoff with no electrical power required

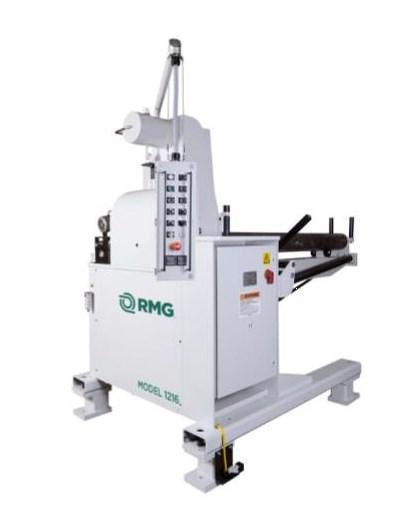

RMG Uncoilers: Wire dis: 0.630” (16.0mm) to 1.750” (44.5mm) diameter.
Best suited for pre-straightening and feeding large diameter wire into a wire drawer or other type of production machine.
Features are specifically designed to assist the operator in handling material over 0.630” (16.0mm) to 1.750” (44.5mm) diameter.

Downloads

RMG-Catalog-Passive Turntables.pdf

RMG-Catalog-Power Turntables.pdf

RMG-Catalog-Turntables.pdf

RMG-Catalog-Uncoilers.pdf
